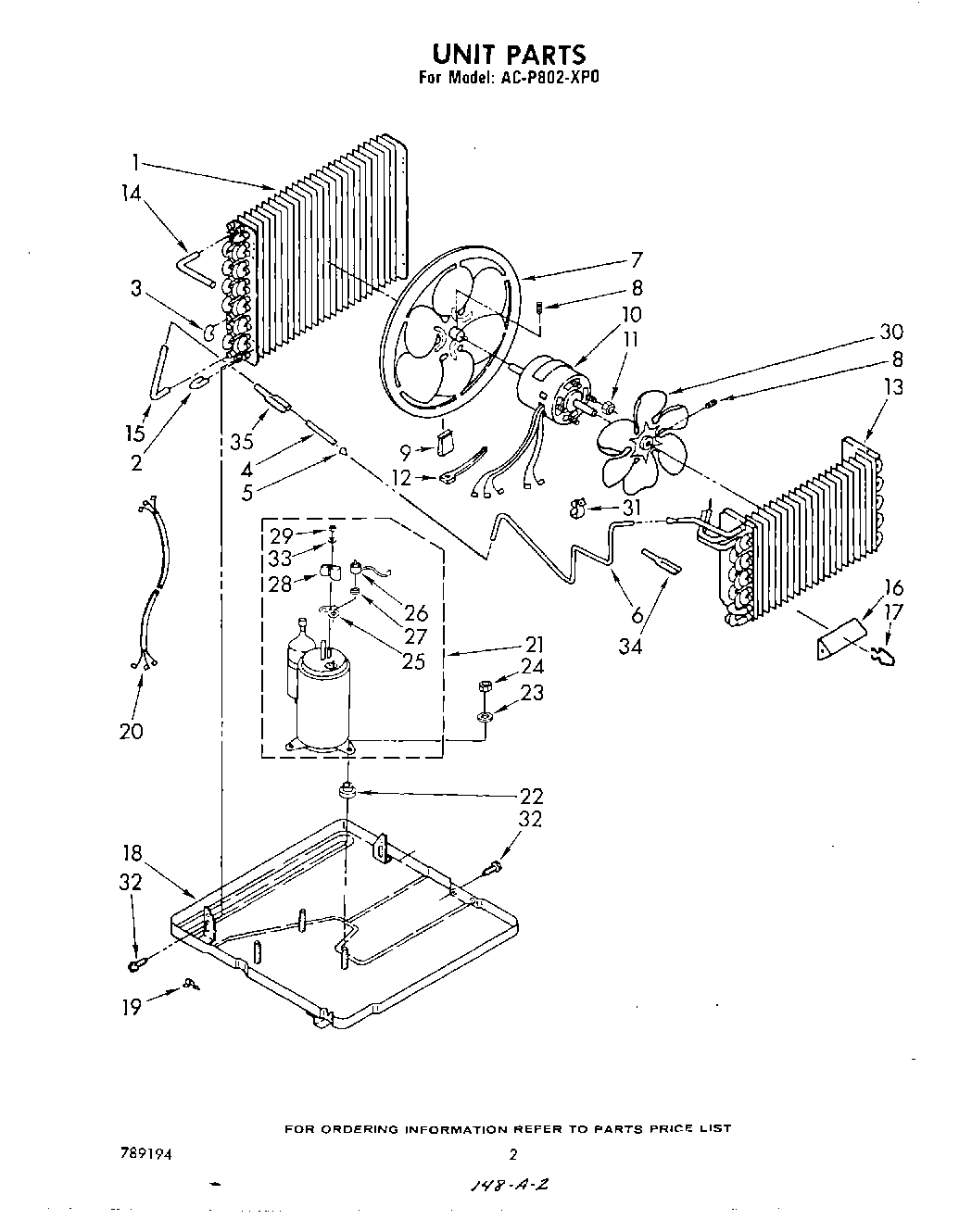

ACP802XP0 02 – UNIT

Products

PositionProduct
1Condenser
2Bend, Return Evaporator (4)
3Bend, Return Evaporator (11)
4Strainer
5Tube & Strainer (Includes Item 23)
6Tube, Restrictor (Length 31.50“)
7Blade, Condenser Fan
8Setscrew, 5/16 x 1/4
9Clip, Balancing
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
14Tube, 90~ Bend
15Tube, Outlet
16Anticipator, Temperature
17Clip, Anticipator
18Base
19Clamp, Tube (2)
20Harness, Wiring
214317916 Whirlpool Air Conditioner Compressor
22Grommet
23WP120393 Whirlpool Washer Assembly
24Nut, Hex (4)
25WP950035 Whirlpool Cover Gasket
26WP1161170 Whirlpool Air Conditioner Overload
27Spring, Overload
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
30Blade, Fan (Evaporator)
31Clamp, Wiring
32WP489069 Whirlpool Compactor Screw
32Screw, Repair
33Gasket, Nut
34Tube, Flow Divider
35978026 Whirlpool Refrigerator Primary Valve
35978027 Whirlpool Refrigerator Primary Valve
35WP978025 Whirlpool Refrigerator Valve
35978030 Whirlpool Refrigerator Valve
35No Drip Tape (For Sweating Tubes)
35VALVE, ACCESS (1/2“)
35VALVE, ACCESS (5/8“)
35Tube, Flow Divider
35Kit, Evaporator Repair (Aluminum Epoxy)
35Oil, Turbine 1 Fl. Oz.
