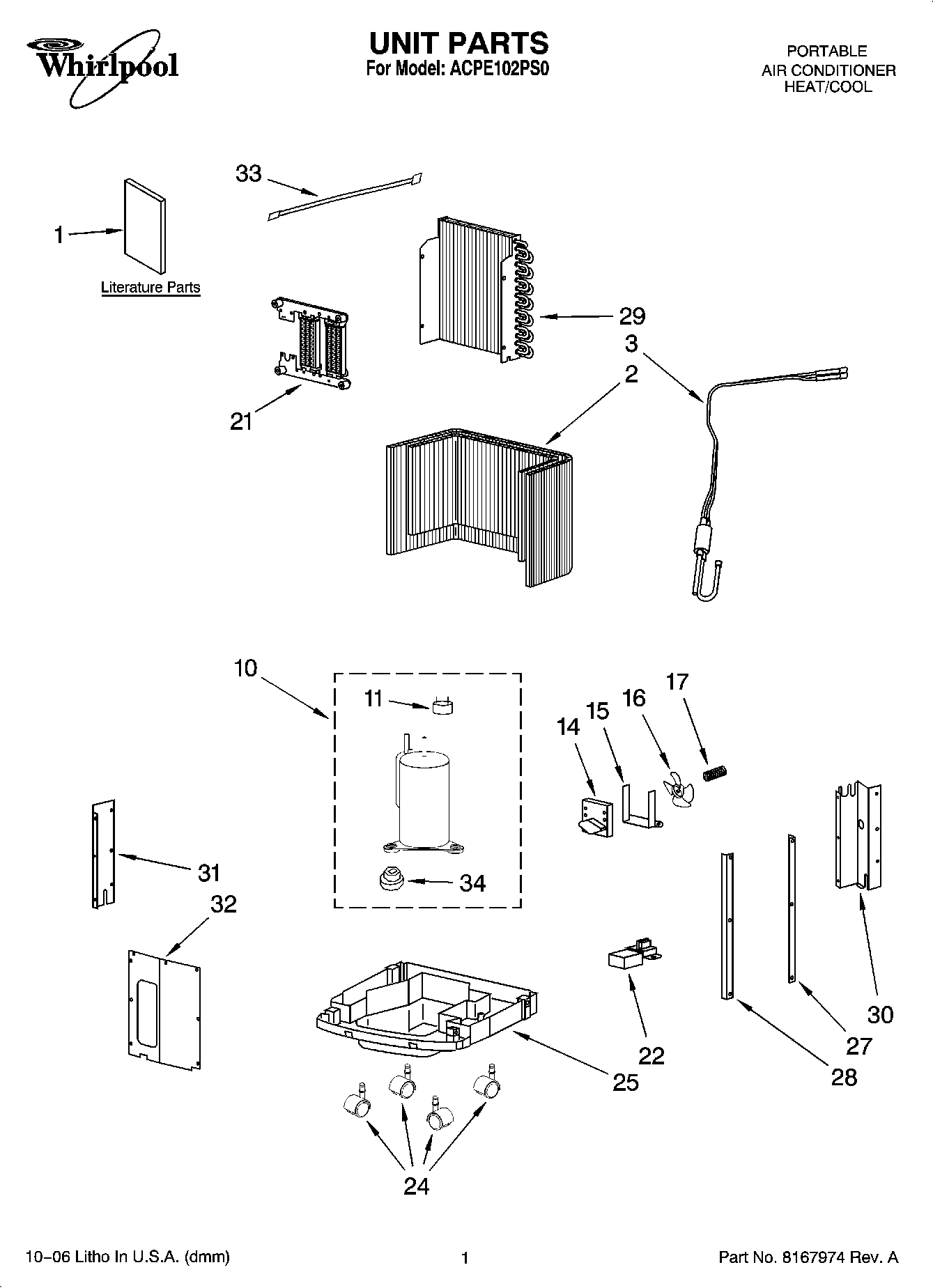

ACPE102PS0 01 – UNIT PARTS

Products

PositionProduct
1Guide, Use & Care
1Diagram, Wiring
2Condenser
3Tube Restrictor Assembly
10Compressor, Assembly
11Overload
14Motor, Fan
15Base, Motor
16Fan
17Spring
21Heater Assembly
22Switch, Level
24Roller
25BASE
27Support, Back (Left)
27Support, Back (Right)
28Support, Front (Left)
28Support, Front (Right)
29Evaporator
30Support (Right)
31Support (Left)
32Support (Front)
33Thermistor
34Grommet
34REFRIGERANT CHARGE 21.6 oz.
