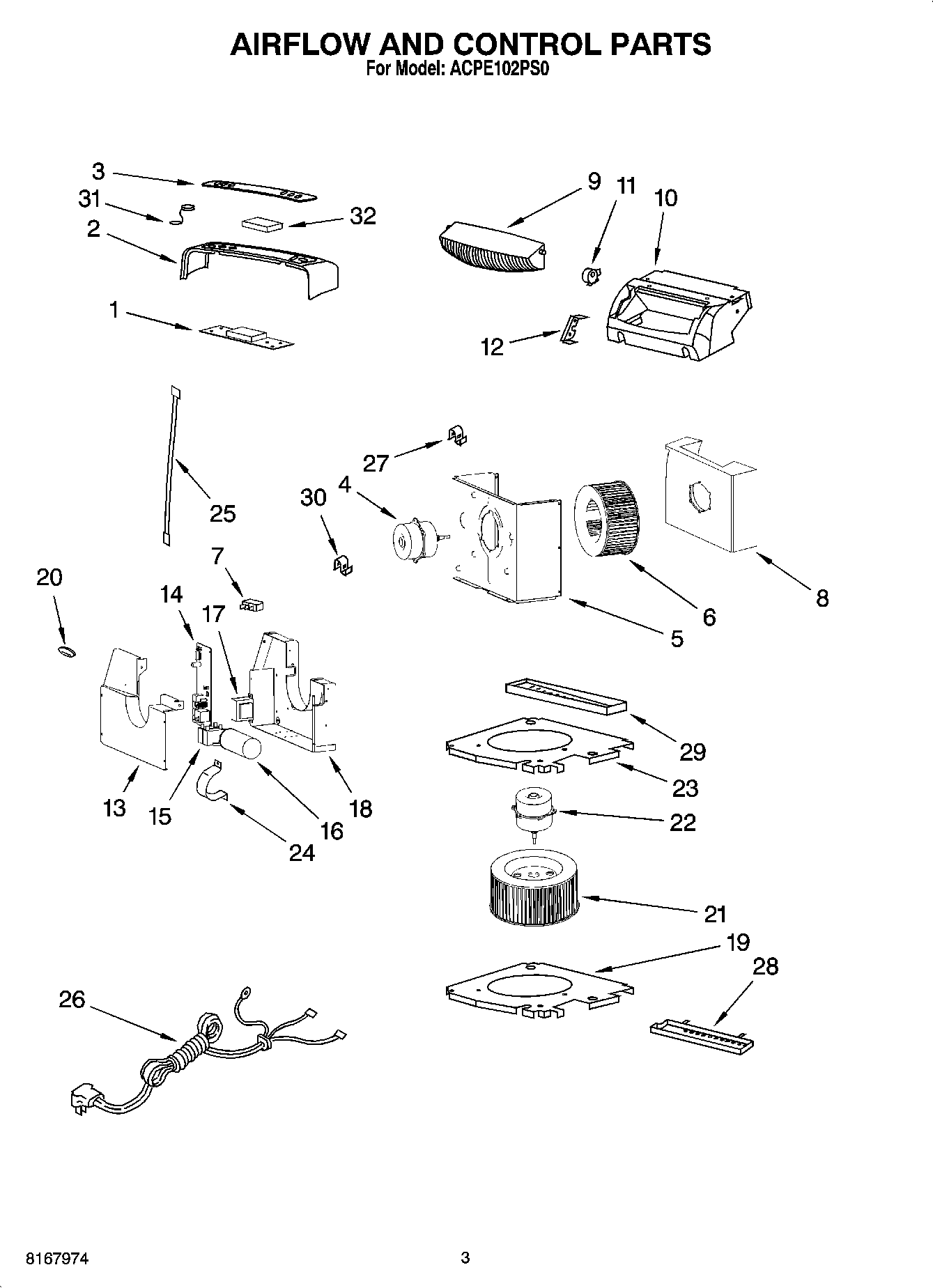

ACPE102PS0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	PC-Board, Control
2	LCD Cover
3	Overlay
4	Motor, Upper
5	Plate, Motor
6	Wheel Blower, Upper
7	Terminal Board
8	Housing, Air
9	Louver Assembly
10	Base, Louver
11	Motor, Louver
12	Bracket, Motor
13	Cover, Control Box
14	PC-Board, Power
15	Capacitor, Fan (Motor (Upper))
15	Capacitor, Fan (Motor (Lower))
16	Capacitor, Compressor
17	Transformer
18	Box, Control
19	Insulation Plate Lower
20	Receiver Board
21	Wheel Blower, Lower
22	Motor, Lower
23	Insulation Plate Middle
24	Bracket, Capacitor
25	Thermistor
26	Cord-Power
27	CLIP
28	Pan, Drain
29	Pan, Drain
30	Clip
31	Cover, Screw
32	Display Window
