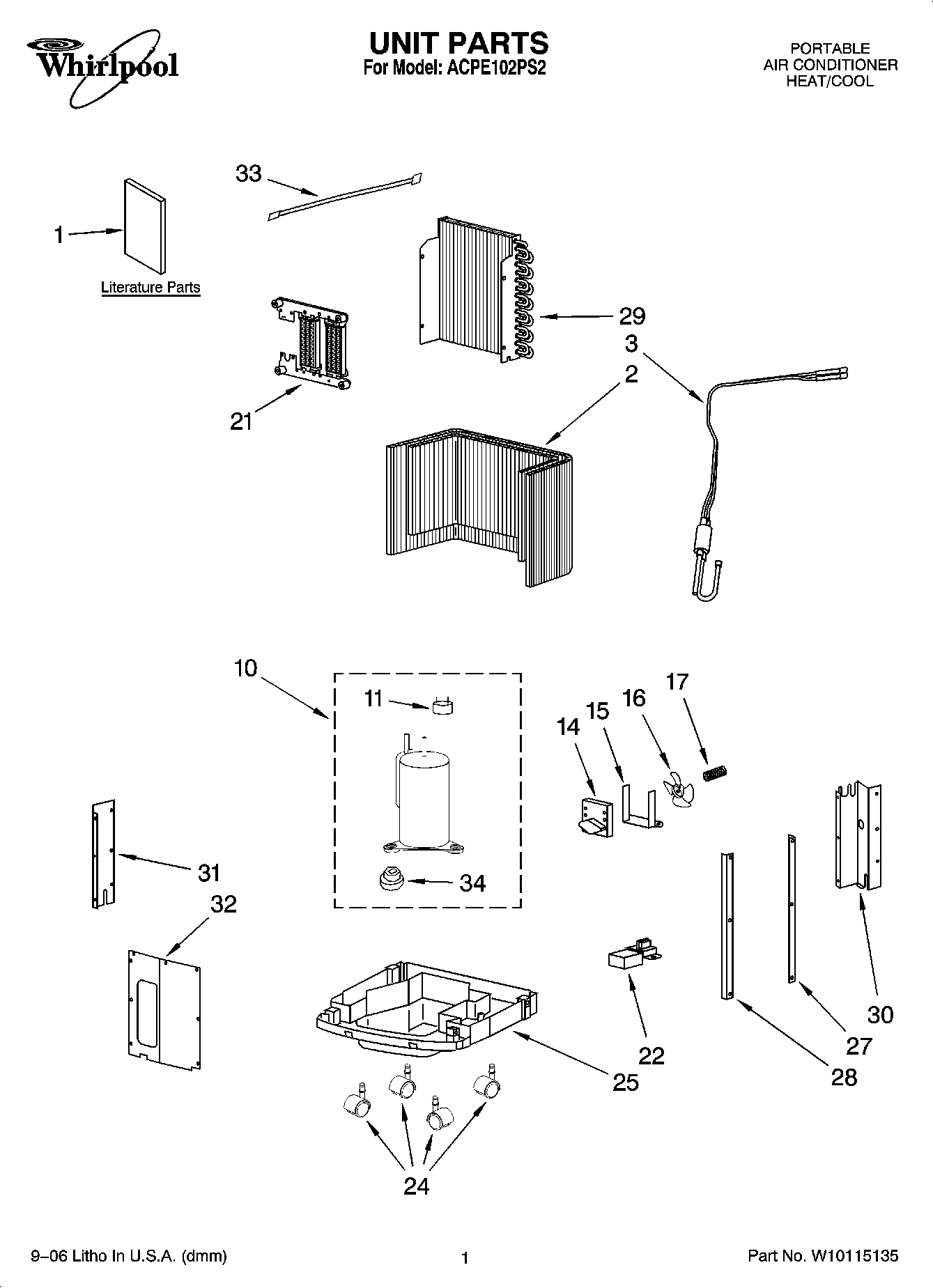

ACPE102PS2 01 – UNIT PARTS

Products

Position	Product
1	Guide, Use & Care
1	Diagram, Wiring
2	Condenser
3	Tube Restrictor Assembly
10	Compressor, Assembly
11	Overload
14	Motor, Fan
15	Base, Motor
16	Fan
17	Spring
21	Heater Assembly
22	Switch, Level
24	Roller
25	BASE
27	Support, Back (Left)
27	Support, Back (Right)
28	Support, Front (Left)
28	Support, Front (Right)
29	Evaporator
30	Support (Right)
31	Support (Left)
32	Support (Front)
33	Thermistor
34	Grommet
34	REFRIGERANT CHARGE 21.6 oz.
