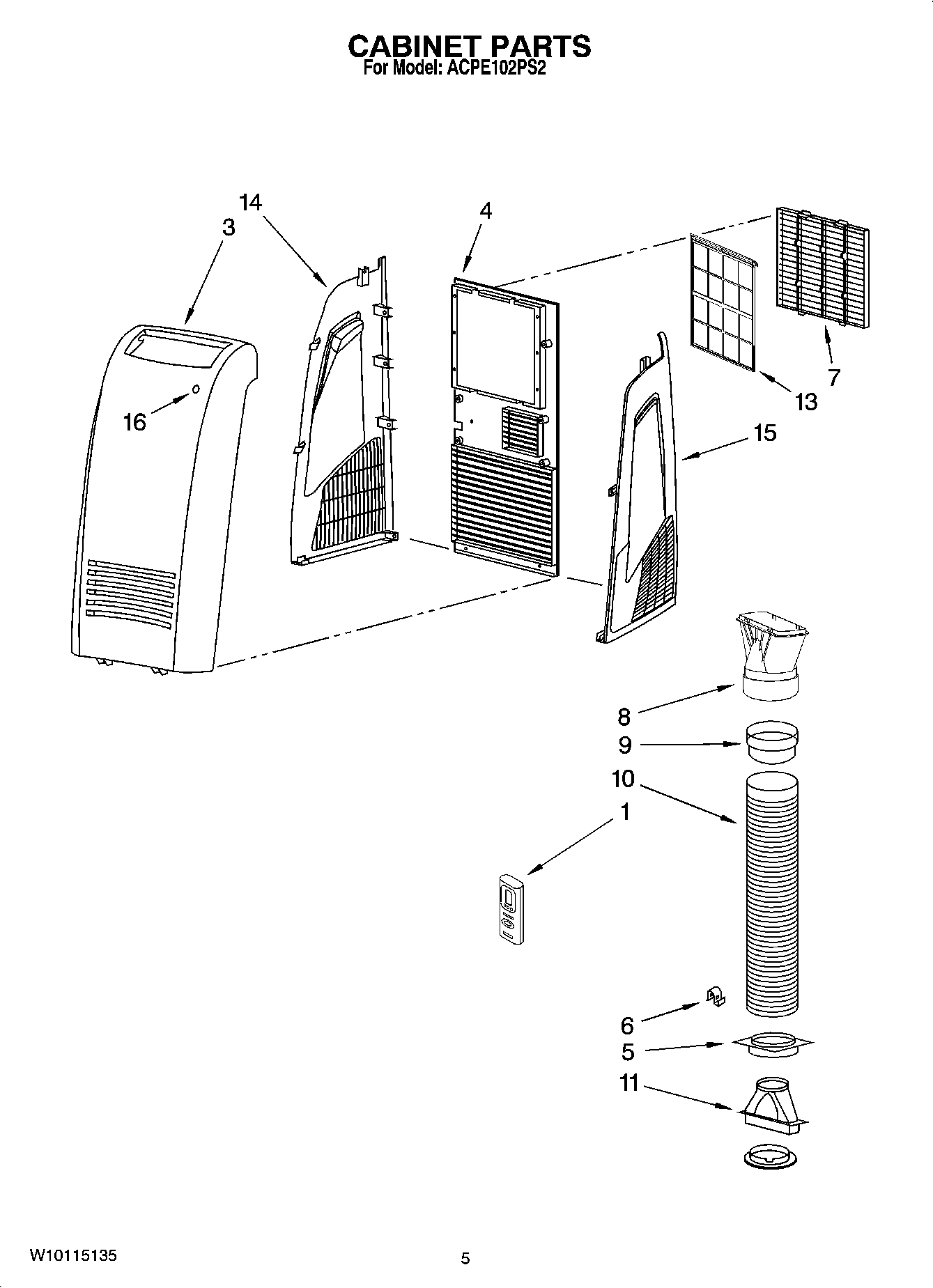

ACPE102PS2 03 – CABINET PARTS

Products

Position	Product
3	Panel, Front
4	Panel, Rear
5	Connector
6	CLIP
7	Grille, Air
8	Connector, Square
9	Connector
10	Exhaust Tube
11	Connector Square
13	Filter
14	Left Panel
15	Right Panel
16	Remote
16	Drain Hose
16	Clip, Drain Hose
16	Clamp, Drain Hose
16	Plug, Drain Hose
16	Window Slider Kit
16	Window, Remote Control
16	Screw
16	Following Parts Not Illustrated
