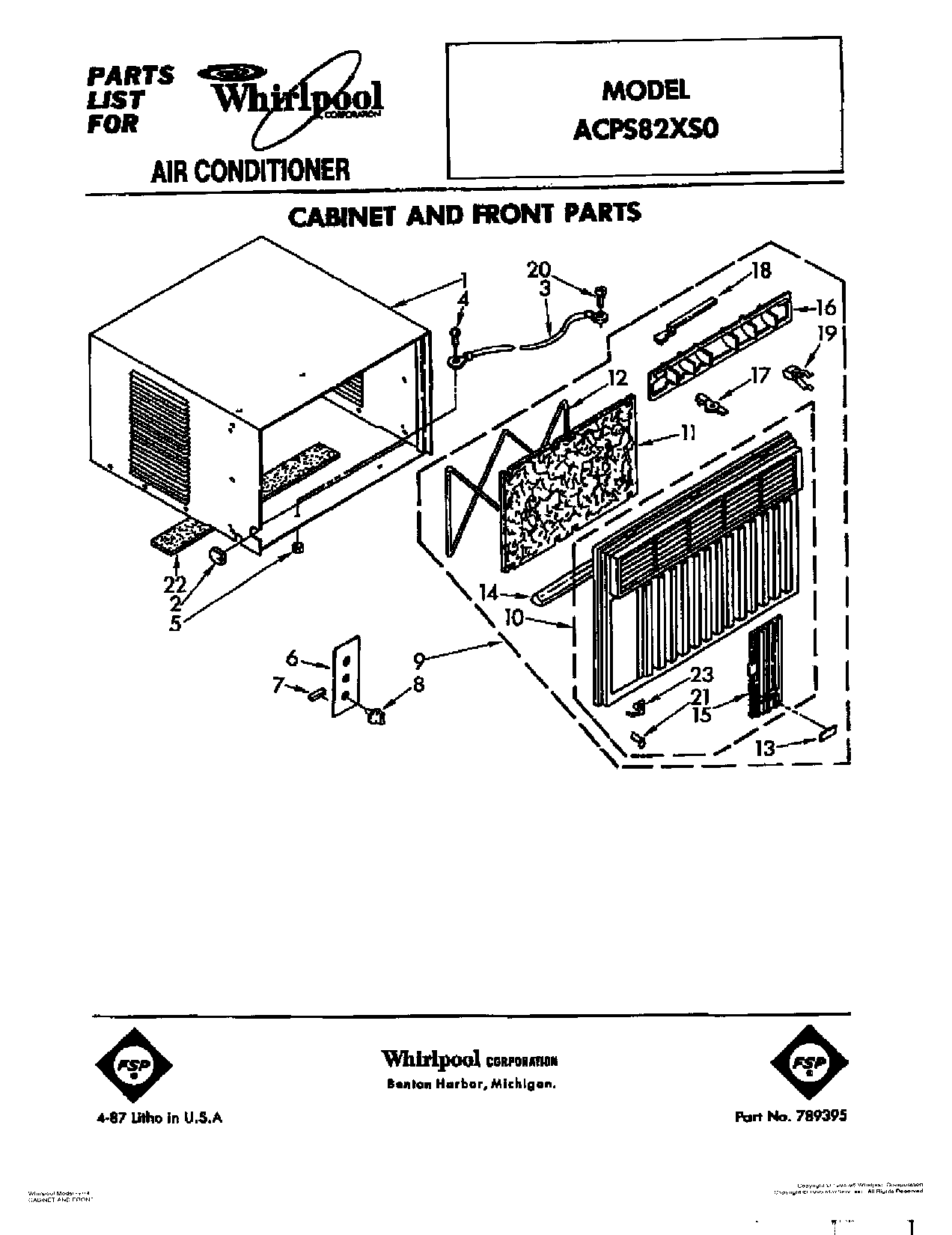

ACPS82XS0 01 – CABINET AND FRONT

Products

PositionProduct
1Cabinet
2Grommet, Appliance Cable
3Wire, Ground
4Screw, 8 x 3/8
5WP486255 Whirlpool Air Conditioner Nut
6Escutcheon, Control
7Spacer, Escutcheon Plate (3)
8Knob, Control
9Front Assembly, Cabinet (Complete)
10Front, Cabinet
11Filter
12Retainer, Filter
13Plate, Name
14Seal
14WP854334 Whirlpool Air Conditioner Sealing Strip
15Door, Control
16Louver, Vertical
17Handle, Vertical Louver (2)
18Link, Vertical Louver (2)
19Detent Spring (2)
20Screw, 8 x 3/8
21Spring, Catch
22Seal
23Pin, Hinge
