ACQ052PK0 01 – UNIT

Written by

ACQ052PK0 01 – UNIT

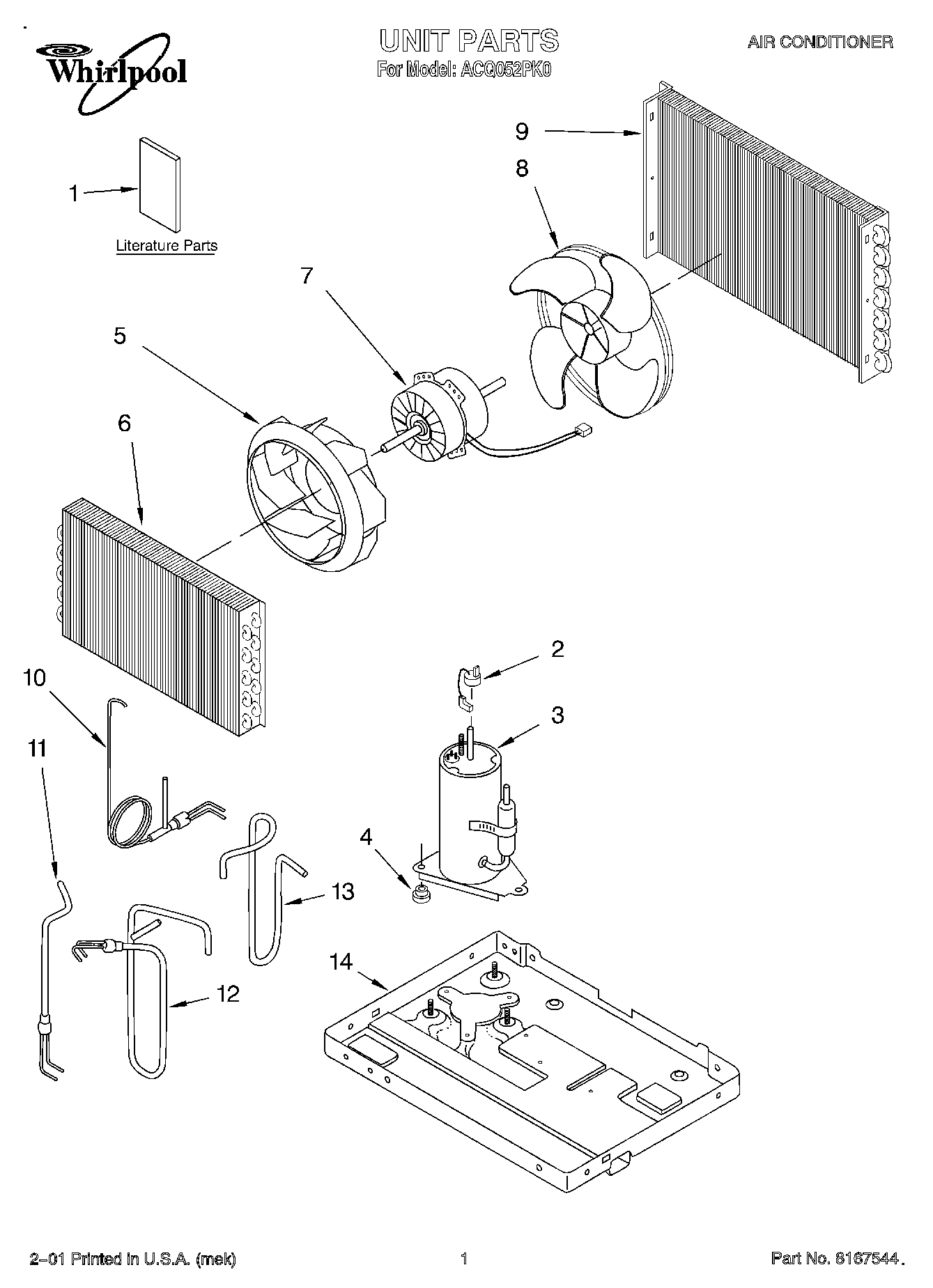

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
2	Overload Protector
3	Compressor
4	Grommet, Compressor
5	Fan, Evaporator
6	Evaporator
7	Motor, Fan
8	Fan, Condenser
9	Condenser
10	Tube, Restrictor
11	Tube-Inlet, Evaporator
12	Tube, Suction
13	Tube, Discharge
14	Base
