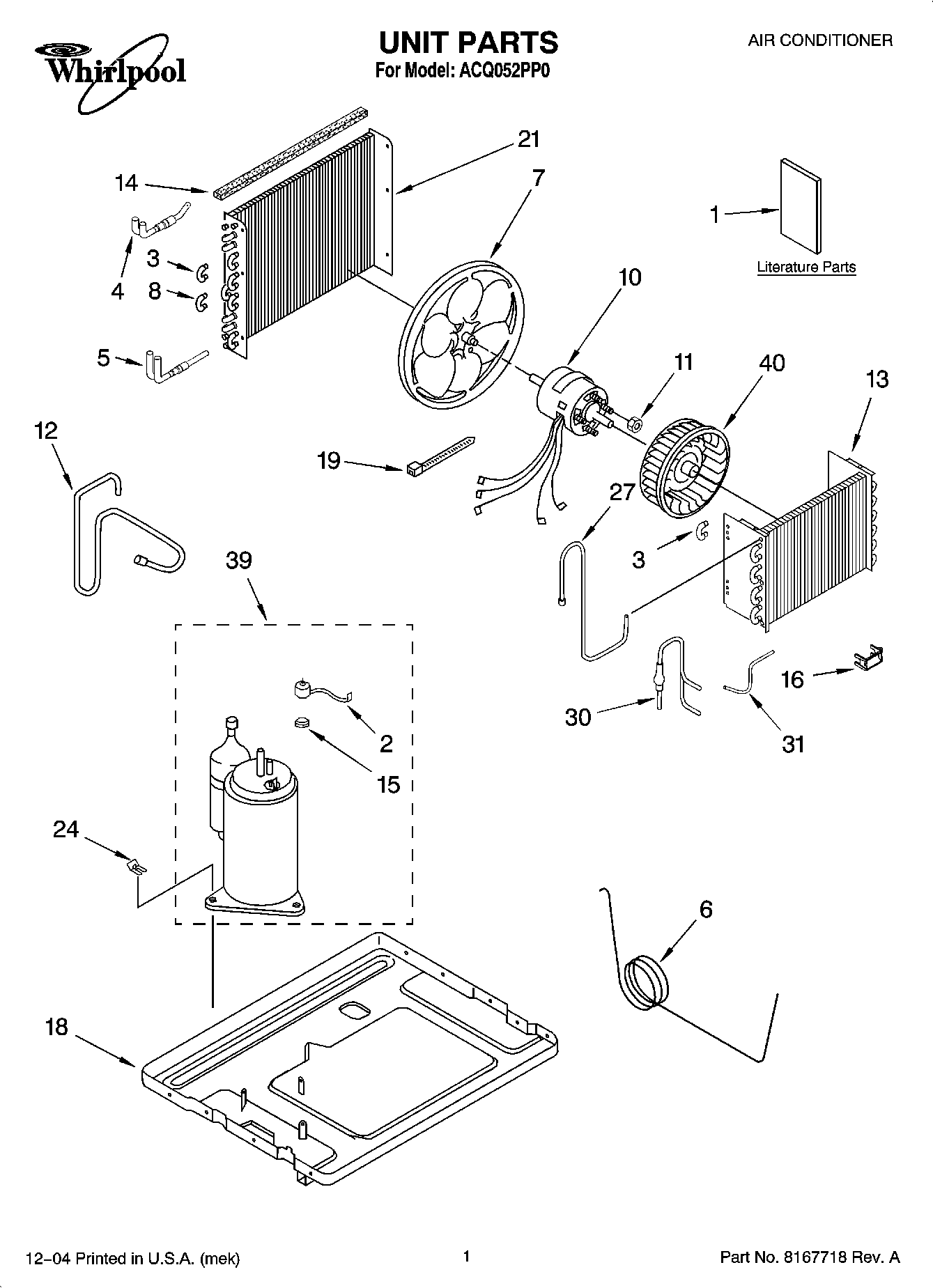

ACQ052PP0 01 – UNIT PARTS

Products

PositionProduct
1LITERATURE PARTS (Use & care Guide)
1LITERATURE PARTS (Wiring Diagram)
2Overload
3Bend, Return
4Tube, Inlet
5Tube, Outlet
6Tube, Restrictor
7Blade, Fan
8Bend, Return
10Motor, Fan
11Nut, Hex
12Tube, Discharge
13Evaporator
14Seal, Condenser
15Spring, Overload
16Thermistor
18Base
19Cable, Tie
21Condenser
24Nut, Hex
27Tube, Suction
30Manifold
31Tube, Inlet
39Compressor Assembly
40Wheel, Blower
40REFRIGERANT CHARGE 14.11 oz.
