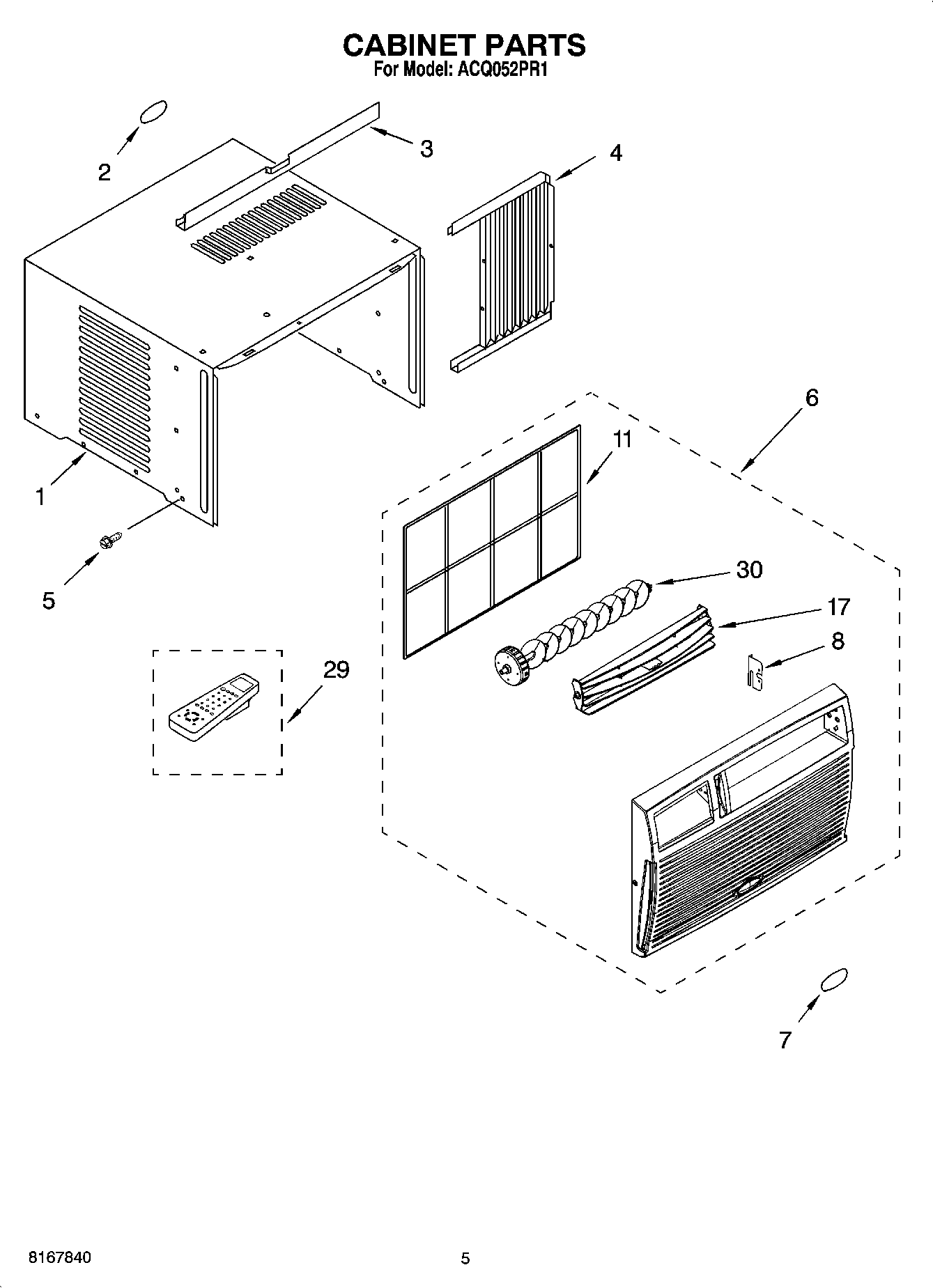

ACQ052PR1 03 – CABINET PARTS
Written by
in
ACQ052PR1 03 – CABINET PARTS
Products
Position
Product
1
Cabinet
2
Nameplate, Rear
4
Curtain (Right Side)
4
Curtain (Left Side)
5
Screw (8)
6
Front, Cabinet
7
Nameplate
8
Support, Louver
11
Filter
17
Louver, Assembly
29
Control, Remote
30
Louver, Vertical
←
