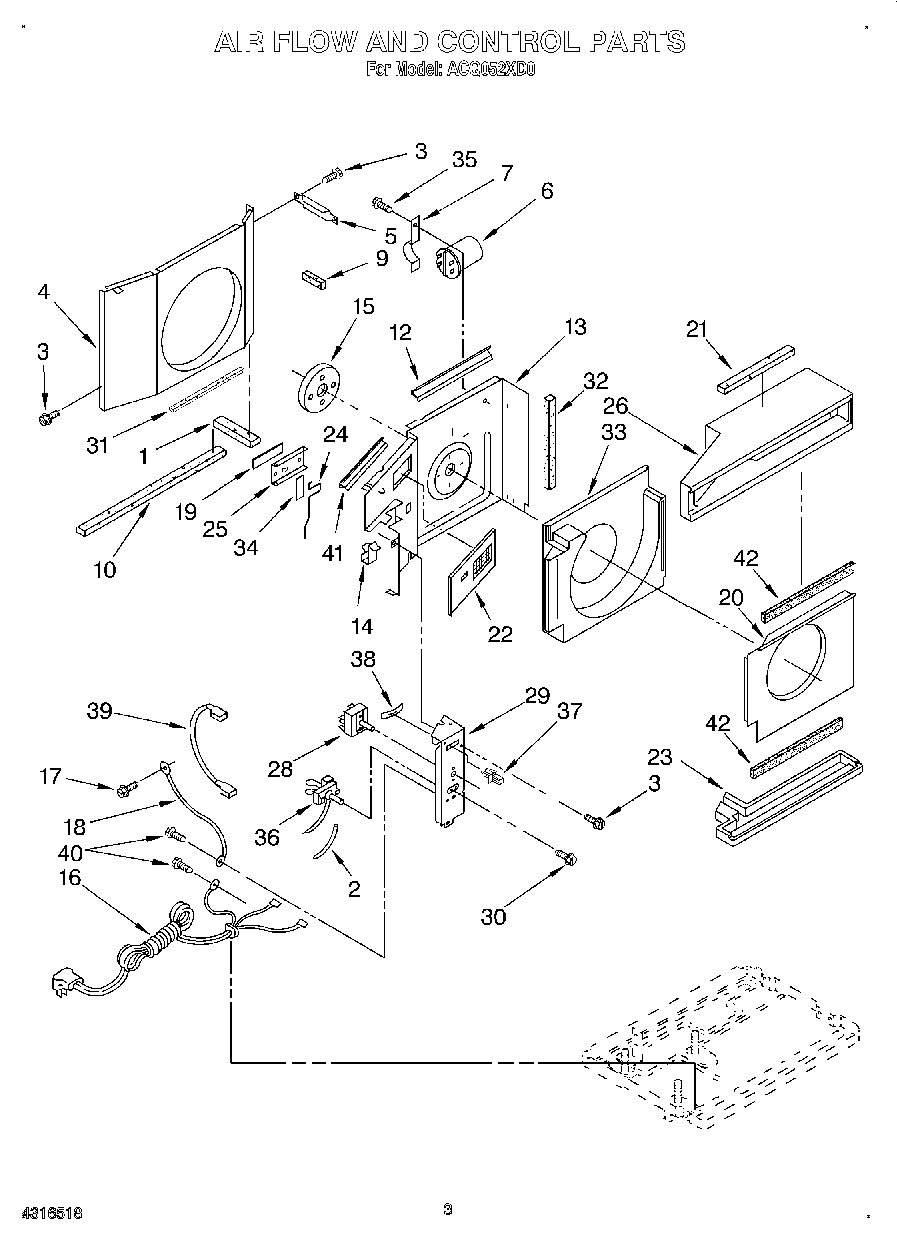

ACQ052XD0 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Insulation, Sleeve
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor
7	Bracket, Capacitor
9	Seal, Condenser (R.S.)
12	Guard, Edge Seal
13	Wall, Dividing
14	Clamp, Wiring
15	Insulation, Motor
16	Cord, Appliance
18	Wire, Ground
19	Barrier Protective
20	Shroud, Evaporator
21	Seal
22	Screen/Insul. Assembly
23	Pan, Evaporator
24	Arm, Exhaust Door
25	Door, Exhaust
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Control
30	Screw, 6-32 x .175
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
34	Spacer
35	Screw, 8 x 3/8
36	Control, Temp.
37	Actuator, Door
38	Spring, Retainer
39	Wire, Jumper
40	Screw 8-18 x .295
41	Guard, Edge Seal
42	Seal (2)
