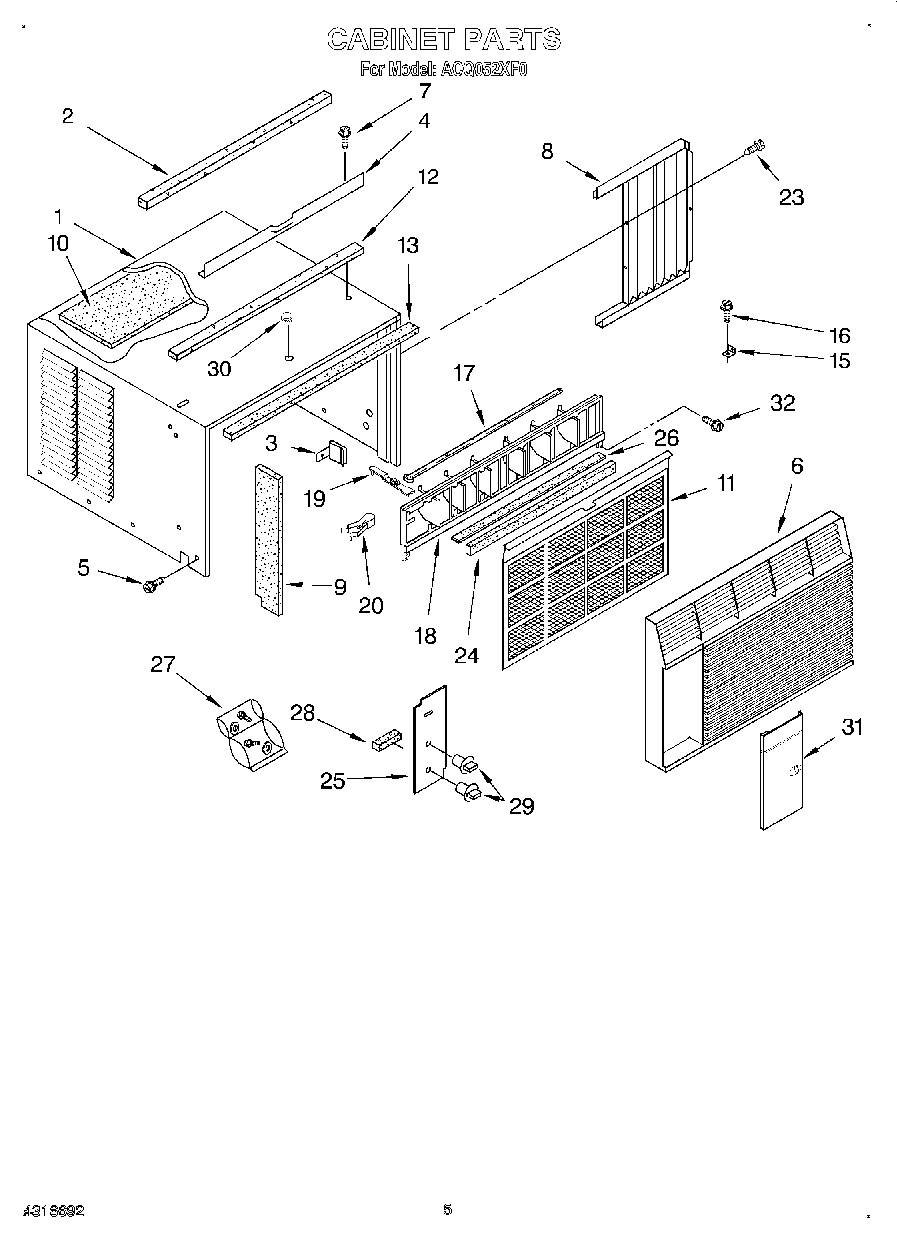

ACQ052XF0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Clip, Vertical Louver
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet
7	WP308685 Whirlpool Microwave Screw
8	Curtain (L.S.)
8	Curtain (R.S.)
9	Insulation, Side
10	Insulation, Top
11	Filter
12	Seal, Strip
13	Seal
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver
20	Detent Spring (2)
23	Screw, 8-18 x 3/8
24	Seal, Vertical Louver
25	Escutcheon
26	WP854334 Whirlpool Air Conditioner Sealing Strip
27	Bag, Accessory
28	Spacer, Escutcheon Plate (3)
29	Knob, Control (2)
30	Cover, Hole
31	Door, Control
32	Screw 8-18 x .295
