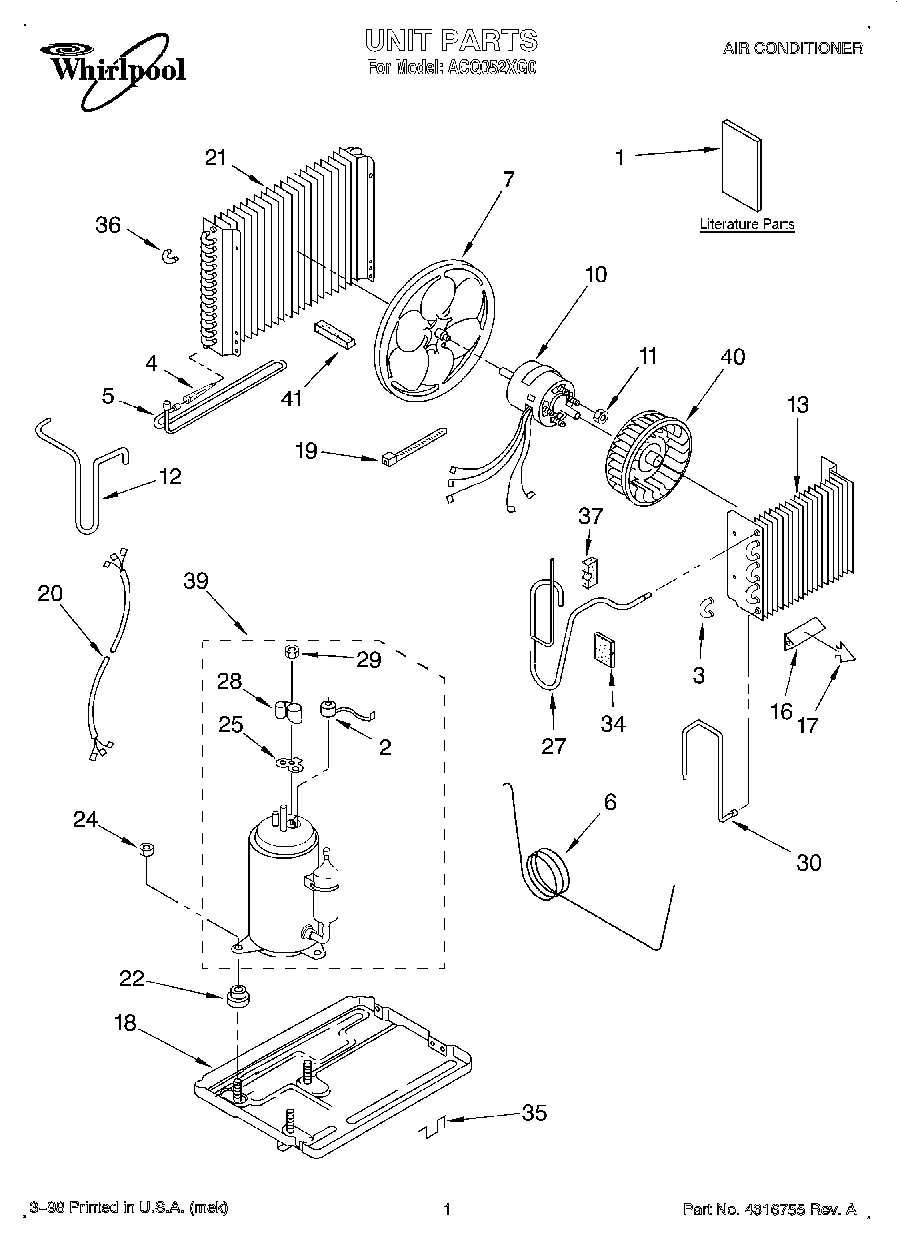

ACQ052XG0 01 – UNIT, LITERATURE

Products

Position	Product
	Tech Sheet
	Wiring Diagram
	Owners Manual
2	Overload
3	Bend, Return Condenser (4)
4	WP1162526 Whirlpool Air Conditioner Strainer
5	Tube, Wet Loop
6	Tube, Restrictor
7	Blade, Fan
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
16	Anticipator
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Condenser
22	Grommet (3)
24	Nut, Hex
25	Gasket, Terminal Cover
27	Tube, Suction
28	Cover, Terminal
29	WP950027 Whirlpool Mounting Nut
30	Tube, Feeder (Restrictor)
34	Sealer, Tube
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
37	Sealer, Tube
39	Compressor Assembly
40	Wheel, Blower
41	WP854334 Whirlpool Air Conditioner Sealing Strip
