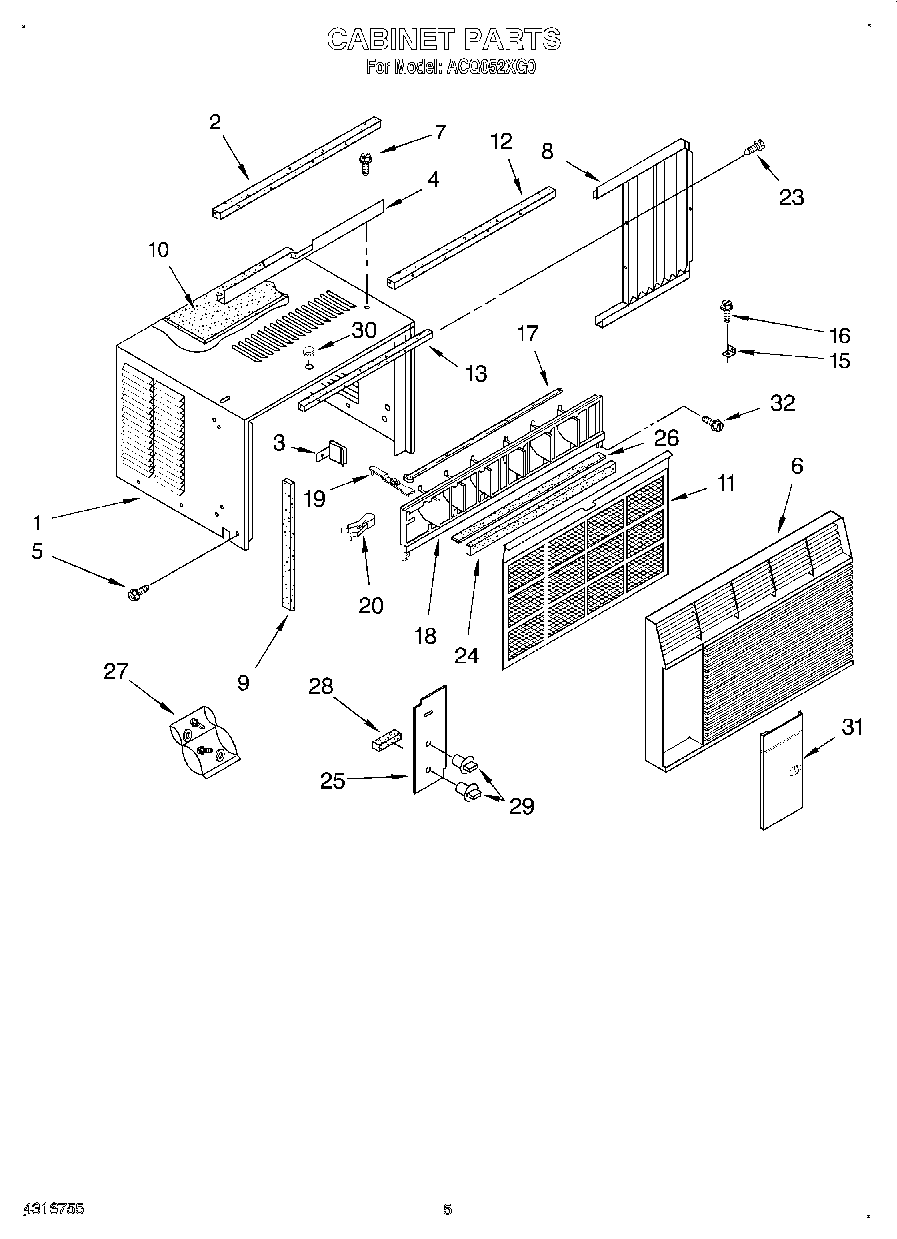

ACQ052XG0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3Clip, Vertical Louver
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet
7WP308685 Whirlpool Microwave Screw
8Curtain (L.S.)
8Curtain (R.S.)
9WP854334 Whirlpool Air Conditioner Sealing Strip
10Insulation, Top
11Filter
12Seal, Strip
13Seal
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver
20Detent Spring (2)
23Screw, 8-18 x 3/8
24Seal, Vertical Louver
25Escutcheon
27Bag, Accessory
28Spacer, Escutcheon Plate (3)
29Knob, Control (2)
30Cover, Hole
31Door, Control
32Screw 8-18 x .295
