ACQ052XG1 01 – UNIT, LITERATURE

ACQ052XG1 01 – UNIT, LITERATURE

Written by

in

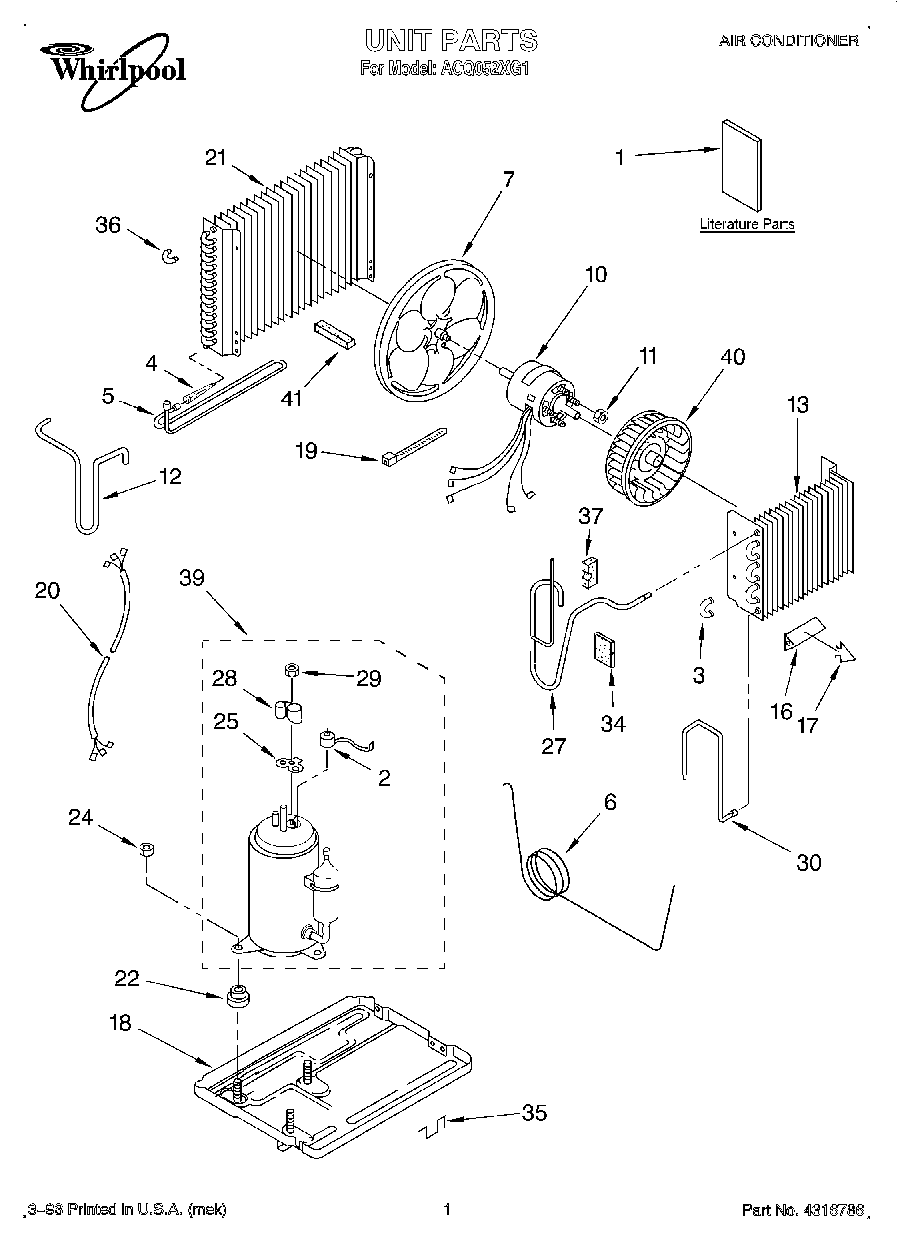

ACQ052XG1 01 – UNIT, LITERATURE

Products

PositionProduct
Tech Sheet
Owners Manual
Wiring Diagram
2Overload
3Bend, Return Condenser (4)
4WP1162526 Whirlpool Air Conditioner Strainer
5Tube, Wet Loop
6Tube, Restrictor
7Blade, Fan
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Tube, Discharge
13Evaporator
16Anticipator
17Clip, Anticipator
18Base
19WPW10339879 Whirlpool Wire Tie
20Harness, Wiring
21Condenser
22Grommet (3)
24Nut, Hex
25Gasket, Terminal Cover
27Tube, Suction
28Cover, Terminal
29Nut, Hex
30Tube, Feeder (Restrictor)
34Sealer, Tube
35Clip, Mtg. (2) (Base to Front)
36Bend, Return Condenser (10)
37Sealer, Tube
39Compressor Assembly
40Wheel, Blower
41WP854334 Whirlpool Air Conditioner Sealing Strip
