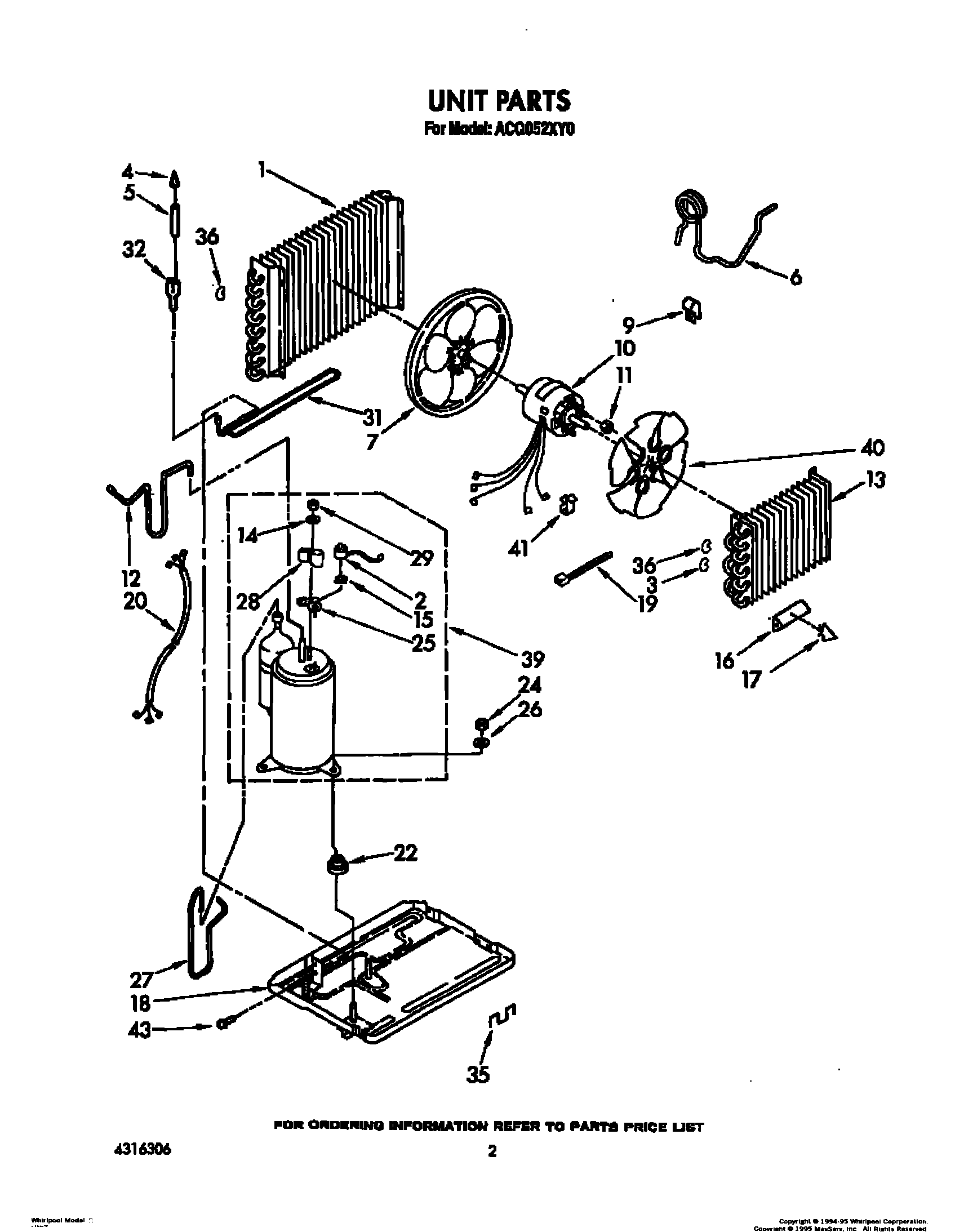

ACQ052XY0 02 – UNIT, LIT/OPTIONAL

ACQ052XY0 02 – UNIT, LIT/OPTIONAL

Written by

in

ACQ052XY0 02 – UNIT, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Tech Sheet
Wiring Diagram
Instructions, Installation
Buy Guide
Guide, Operation
1Condenser
2Overload
3Bend, Return Condenser (4)
4Strainer
5Tube & Strainer (Includes Illus. 4)
6Tube, Restrictor
7Blade, Fan
9Clamp, Tube (2)
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Tube, Discharge
13Evaporator
14Gasket, Nut
15Spring, Overload
16Anticipator, Temperature
17Clip, Anticipator
18Base
19WPW10339879 Whirlpool Wire Tie
20Harness, Wiring
22Grommet
24Nut, Hex (4)
25WP950035 Whirlpool Cover Gasket
26WP120393 Whirlpool Washer Assembly
27Tube, Suction
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
31Tube, Condenser Extension
32Tube, Flow Divider
35Clip, Mtg. (2) (Base to Front)
36Bend, Return Condenser (10)
39Compressor
40Blade, Fan
41Clamp, Wiring
43WP489069 Whirlpool Compactor Screw
