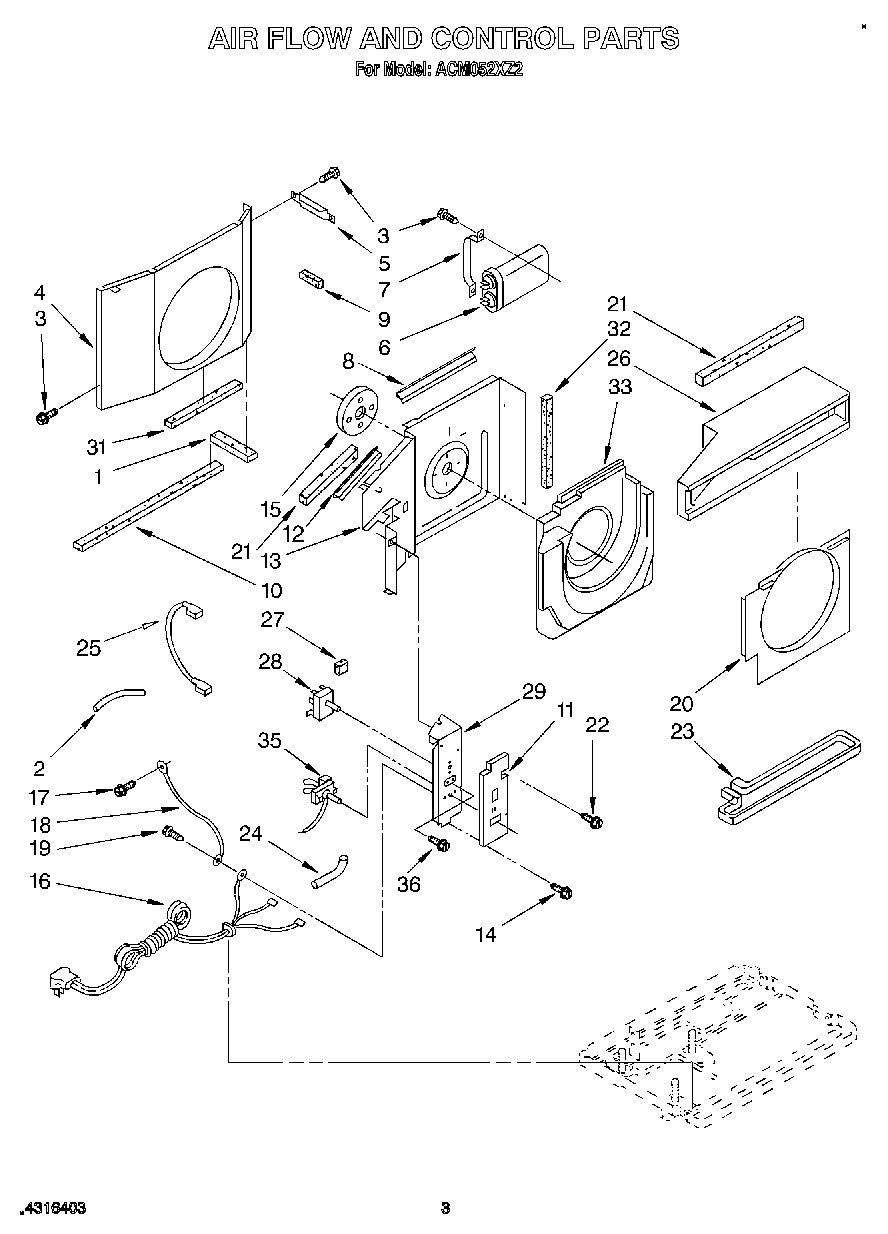

ACQ052XZ2 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Foam Tube
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Guard, Edge Seal
9	Seal, Condenser (R.S.)
10	Seal
11	Insulation, Control Panel
12	Guard, Edge Seal
13	Wall, Dividing
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
19	Screw 8-18 x .295
20	Shroud, Evaporator
21	Seal
22	Screw, 8-18 x 3/8
23	Pan, Evaporator
24	Insulation, Sleeve
25	Wire, Jumper
26	Hood, Air Housing
27	Sealer, Tube
28	Switch, Rotary
29	Panel, Control
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
35	Control, Temperature
36	Screw, 6-32 x .175
