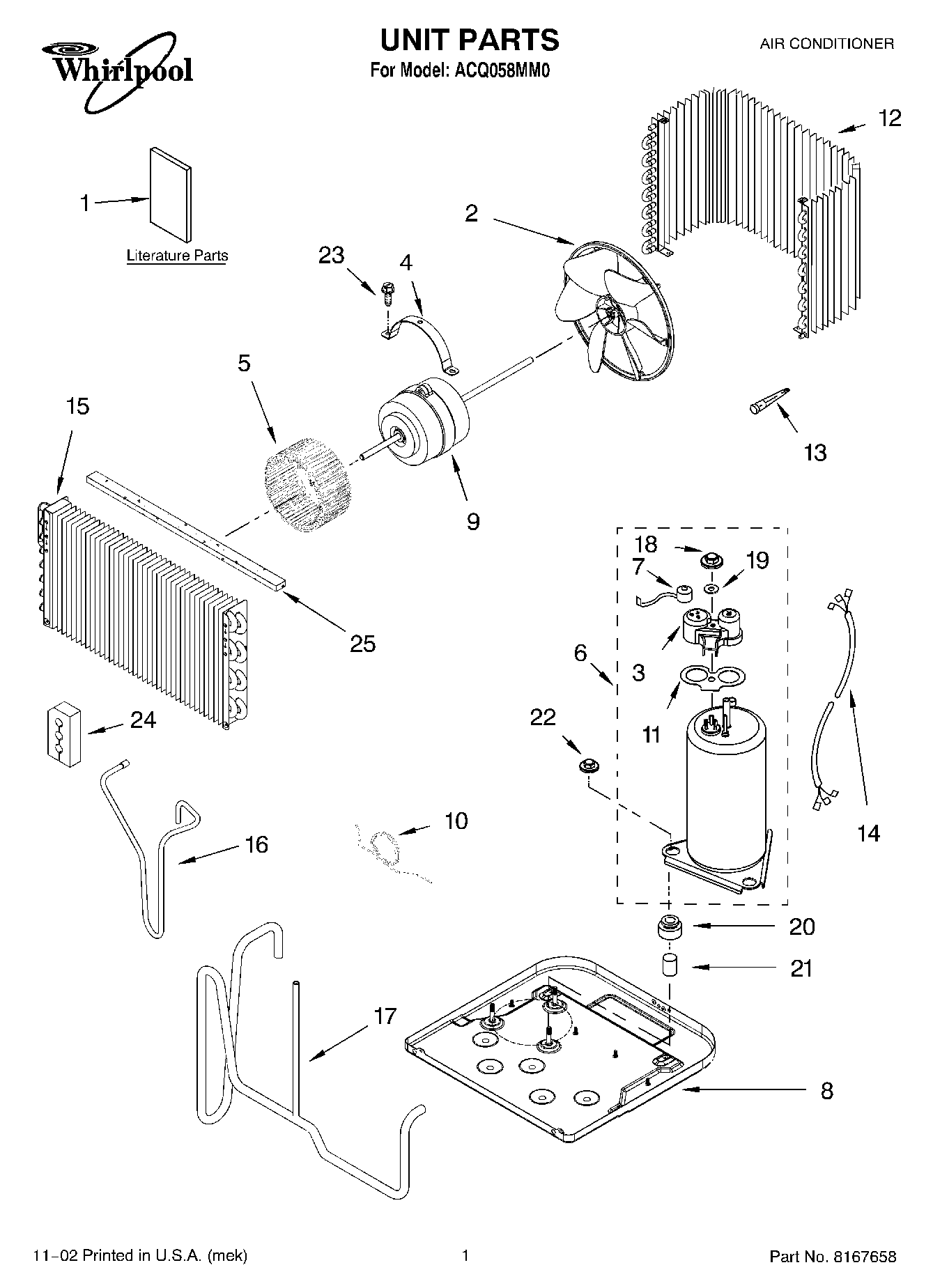

ACQ058MM0 01 – UNIT PARTSadmin2025-04-26T10:56:30+00:00ACQ058MM0 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | LITERATURE PARTS (Use & Care Guide) |
| 1 | LITERATURE PARTS (Wiring Diagram Label) |
| 1 | LITERATURE PARTS (Guide, Energy) |
| 2 | Fan Blade, Condenser |
| 3 | WP950036 Whirlpool Cover Assembly |
| 4 | Clip, Fan Motor |
| 5 | Wheel, Blower |
| 6 | Compressor |
| 7 | Overload |
| 8 | Base |
| 9 | Motor, Fan |
| 10 | Tube, Capillary |
| 11 | WP950035 Whirlpool Cover Gasket |
| 12 | Condenser |
| 13 | WP1162526 Whirlpool Air Conditioner Strainer |
| 14 | Harness, Wiring |
| 15 | EVAPORATOR |
| 16 | Tube, Discharge |
| 17 | Tube, Suction |
| 18 | WP950027 Whirlpool Mounting Nut |
| 19 | Gasket, Nut |
| 20 | Grommet |
| 21 | Sleeve, Compressor Grommet |
| 22 | Locknut |
| 23 | Screw |
| 24 | Insulator, Tube |
| 25 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 25 | REFRIGERANT CHARGE 15.0 oz. |
