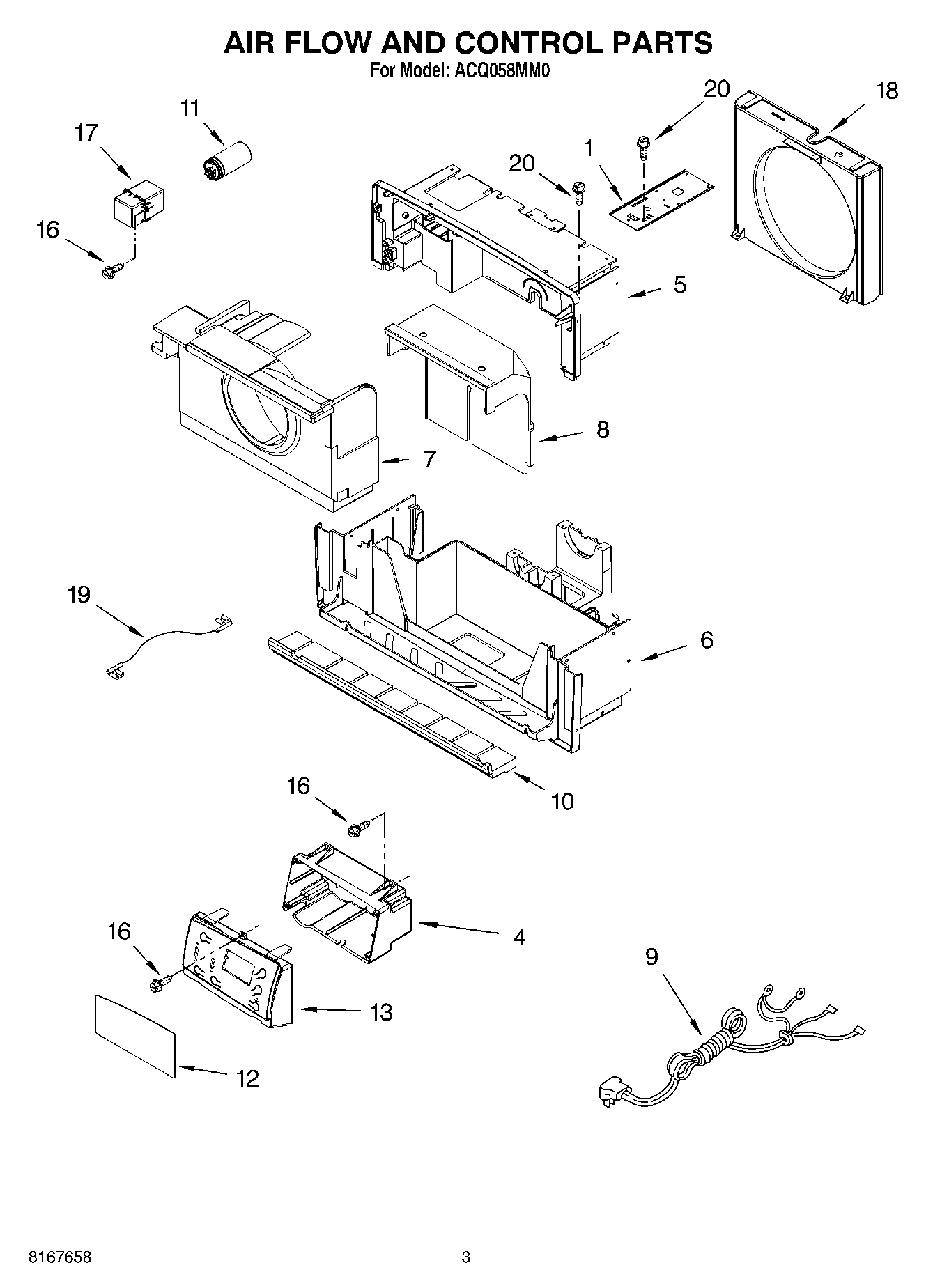

ACQ058MM0 02 – AIR FLOW AND CONTROL PARTS

ACQ058MM0 02 – AIR FLOW AND CONTROL PARTS

Written by

in

ACQ058MM0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Support, Unit
4	Control Panel, Rear
5	Clamshell, Top
6	Clamshell, Bottom
7	Air Housing, Bottom
8	Air Housing, Top
9	Cord, Power
10	Insulation, Drain Pan
11	Capacitor
12	Overlay
13	Panel, Control Electronic
16	Screw, 8-18 x 3/8
17	Cap, Capacitor
18	Shroud, Condenser
19	Wire, Jumper
20	Screw
