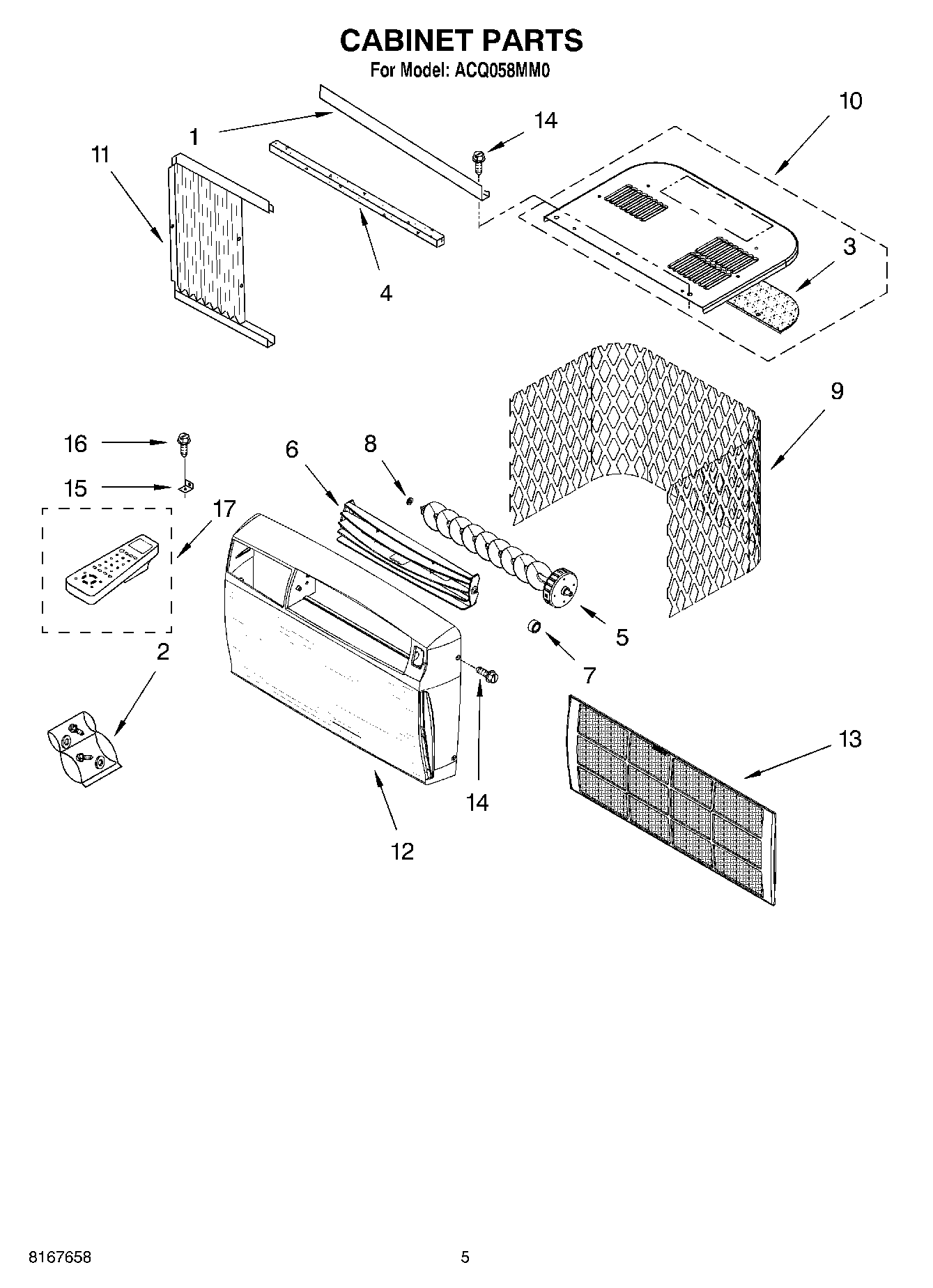

ACQ058MM0 03 – CABINET PARTSadmin2025-04-26T10:57:52+00:00ACQ058MM0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Top Channel |
| 2 | Bag, Accessory |
| 3 | Insulation, Top |
| 4 | Gasket, Meeting Rail |
| 5 | Louver Assembly, Vertical |
| 6 | Louver, Horizontal |
| 7 | Clip, Anticipator |
| 8 | WASHER |
| 9 | Grille, Rear |
| 10 | Cover, Top |
| 11 | Curtain Assembly (Right Side) |
| 11 | Curtain Assembly (Left Side) |
| 12 | Front, Cabinet |
| 13 | Filter, Woven |
| 14 | Screw |
| 15 | Bracket |
| 16 | Screw, Wood 8-15 x .750 |
| 17 | Condensate, Drain Kit |
| 17 | Control, Remote |
| 17 | Following Parts Not Illustrated and Optional Parts Not Included |
| 17 | ACCESSORY PARTS |
