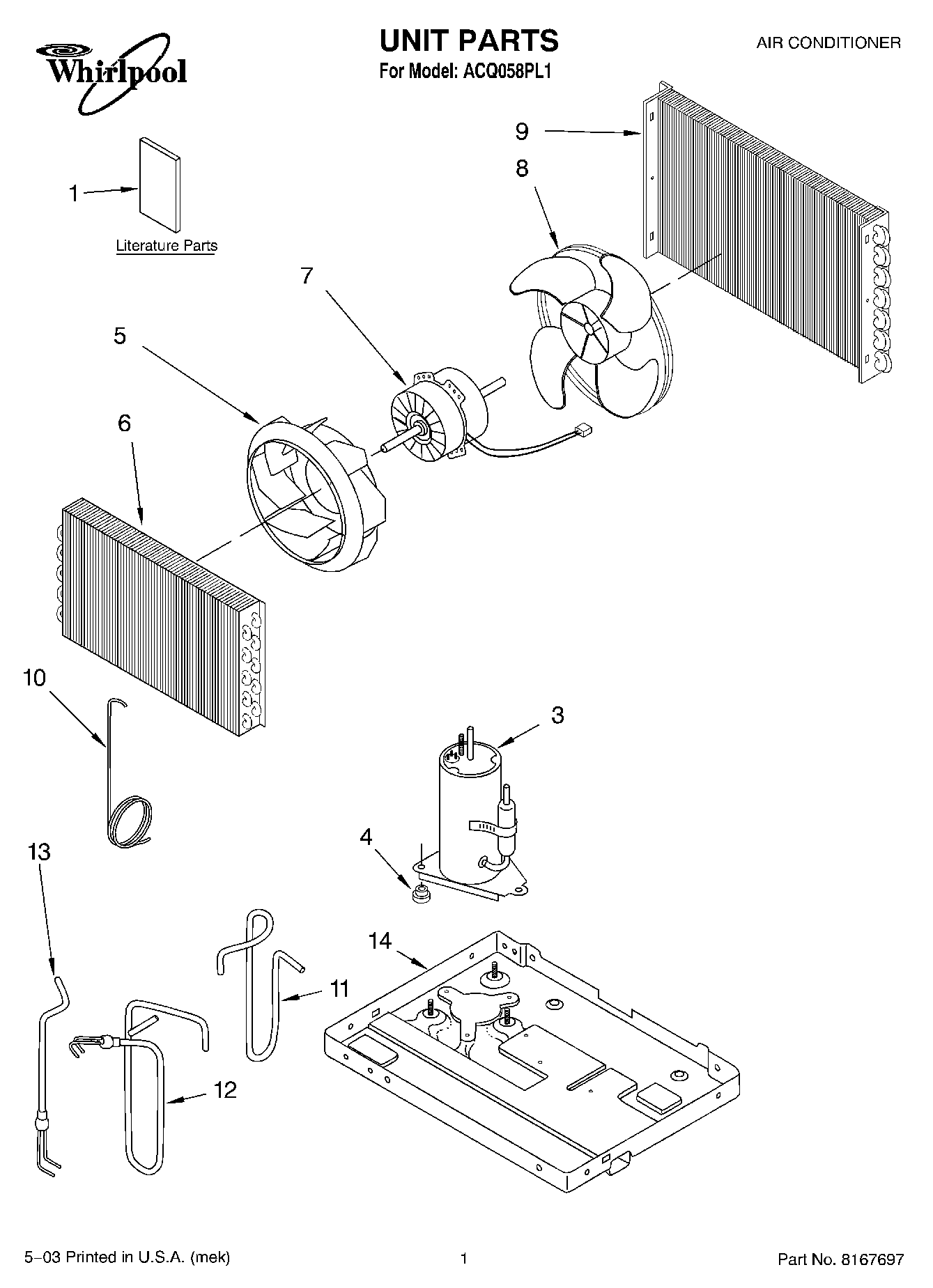

ACQ058PL1 01 – UNIT PARTS

Written by

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
3	Compressor
4	Grommet, Compressor
5	Fan, Evaporator
6	Evaporator
7	Motor, Fan
8	Fan, Condenser
9	Condenser
10	Tube, Restrictor
11	Tube, Discharge
12	Tube, Suction
13	Tube-Inlet, Evaporator
14	Base
14	REFRIGERANT CHARGE 8.1 oz.
