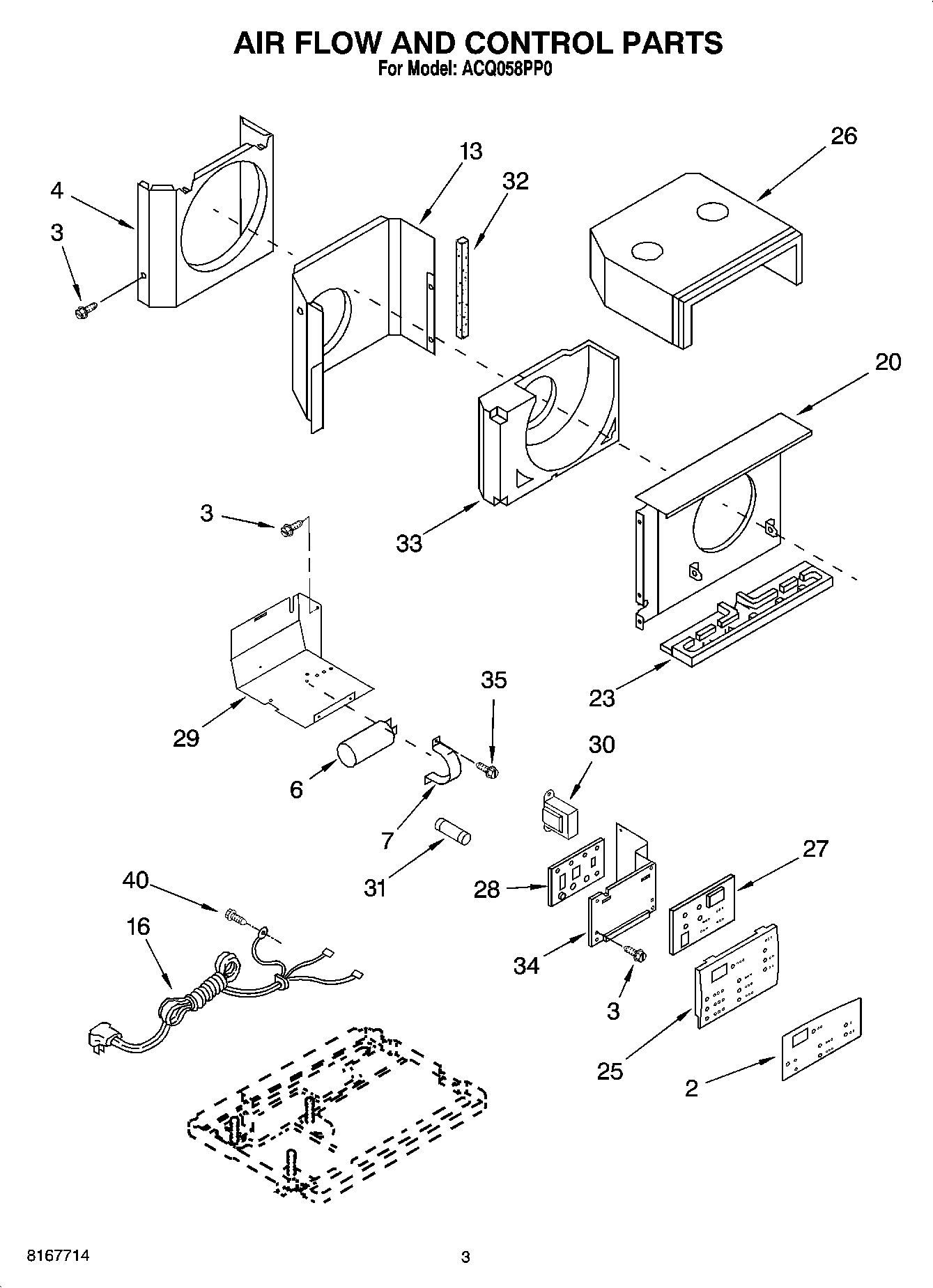

ACQ058PP0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
2	Screw
3	Screw
4	Shroud, Condenser
6	Capacitor, Running
7	Bracket, Capacitor
13	Wall, Dividing
16	Cord, Appliance
20	Shroud, Evaporator
23	Pan, Evaporator
25	Housing, Control Panel
26	Hood, Air Housing
27	Interface Board, (Low Voltage)
28	Hardware Board, (High Voltage)
29	Panel, Rear- Control Box
30	Transformer
31	Fuse
32	Seal, Side
33	Housing, Air
34	Panel, Front- Control Box
35	W11245710 Whirlpool Refrigerator Screw
40	Screw
