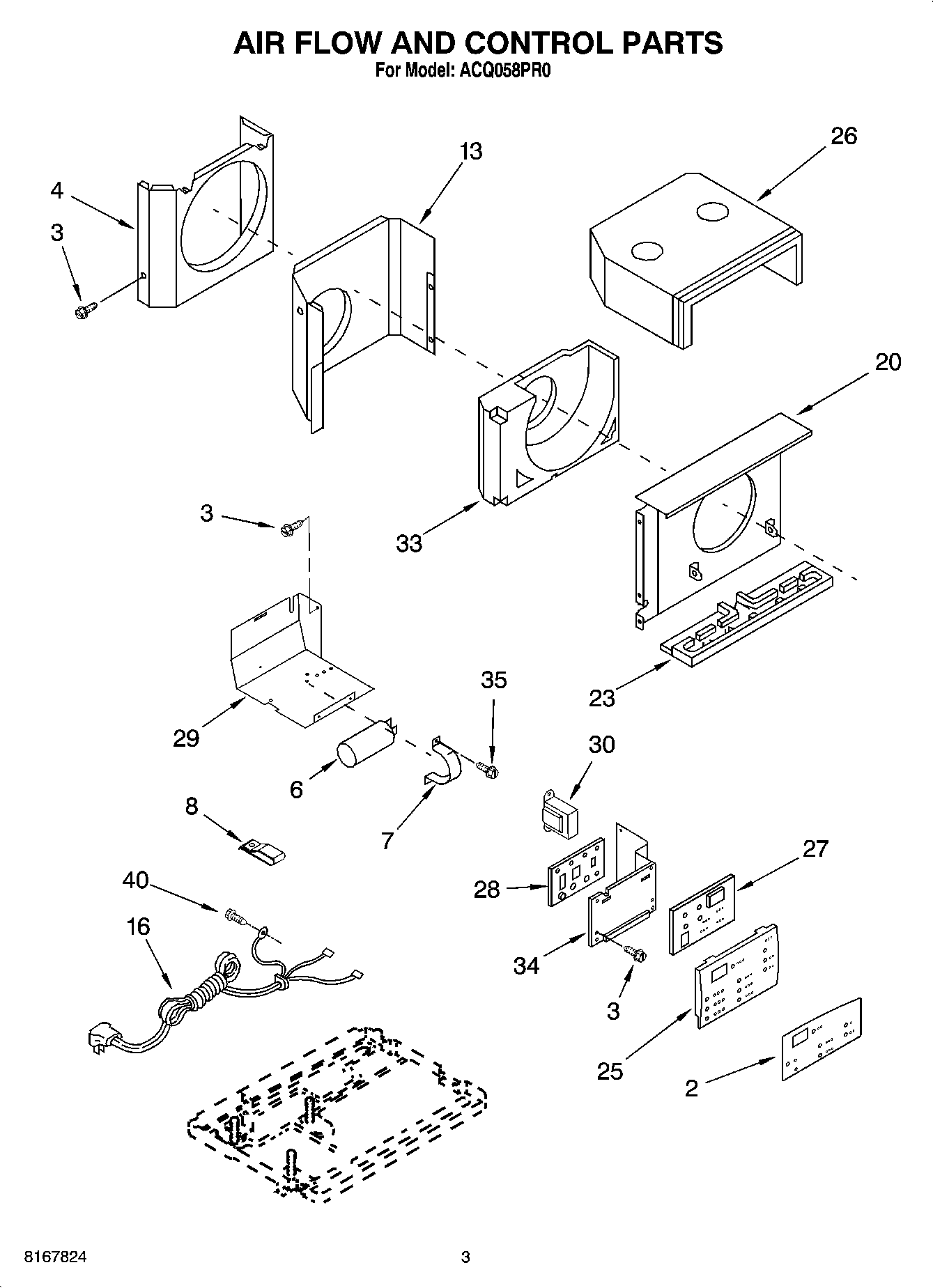

ACQ058PR0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
2	Overlay
3	Screw
4	Shroud, Condenser
6	Capacitor, Running
7	Bracket, Capacitor
8	Clamp, Cord
13	Wall, Dividing
16	Overload
20	Shroud, Evaporator
23	Pan, Evaporator
25	Housing, Control Panel
26	Hood, Air Housing
27	Interface Board, (Low Voltage)
28	Main Board (High Voltage)
29	Panel, Rear- Control Box
30	Transformer
33	Housing, Air
34	Panel, Front- Control Box
35	W11245710 Whirlpool Refrigerator Screw
40	Screw
