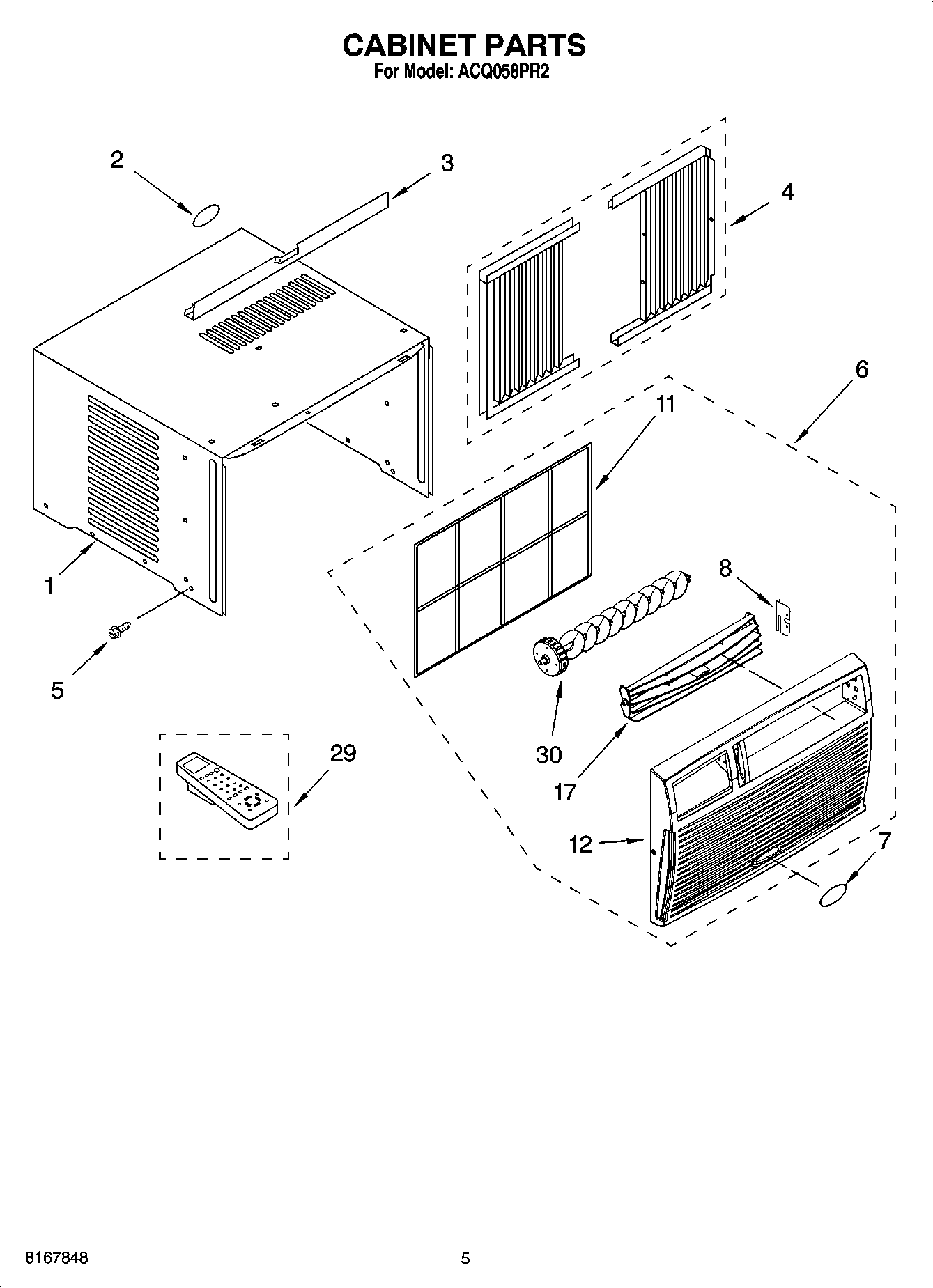

ACQ058PR2 03 – CABINET PARTS

ACQ058PR2 03 – CABINET PARTS

Written by

in

ACQ058PR2 03 – CABINET PARTS

Products

PositionProduct
1Cabinet
2Nameplate, Rear
3Channel, Top
4Curtain Assy (Includes 3)
5Screw (8)
6Front, Cabinet Assembly
7Nameplate
8Support, Louver
11Filter
12Front, Cabinet
17Louver, Assembly
29Control, Remote
30Louver, Vertical
