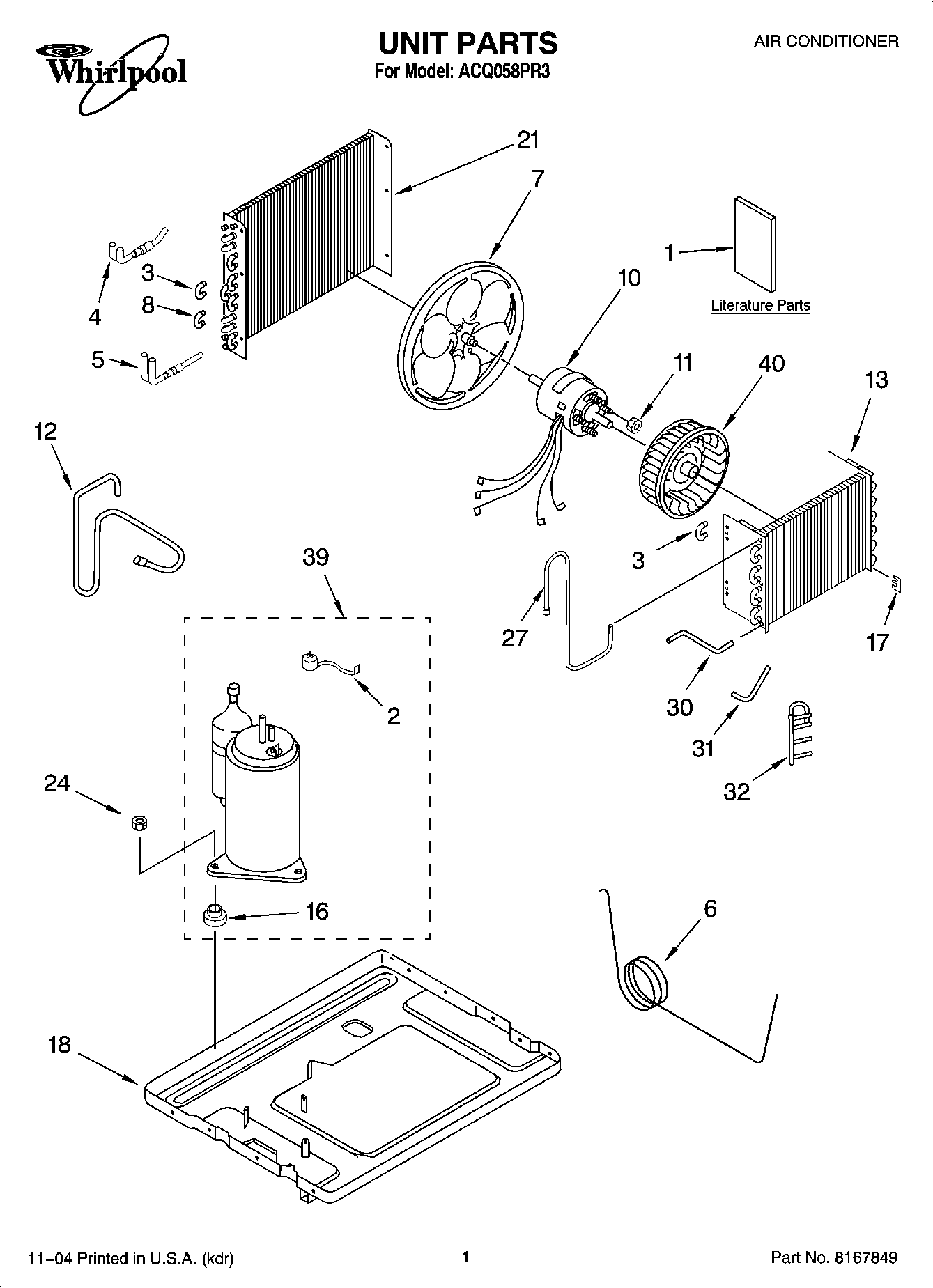

ACQ058PR3 01 – UNIT PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & care Guide
1	Energy Guide
2	Overload
3	Bend, Return
4	Tube, Inlet Condenser
5	Tube, Outlet Condenser
6	Tube, Restrictor
7	Blade, Fan
8	Bend, Return
10	Motor, Fan
11	Nut, Hex
12	Tube, Discharge
13	Evaporator
16	Grommet (3)
17	Support, Tube Sensor
18	Base
21	Condenser
24	Nut, Hex
27	Tube, Suction
30	Tube, Feeder (Restrictor)
31	Tube, Feeder (Restrictor)
32	Manifold, Assembly
39	Compressor Assembly
40	Wheel, Blower
40	REFRIGERANT CHARGE 19.75 oz.
