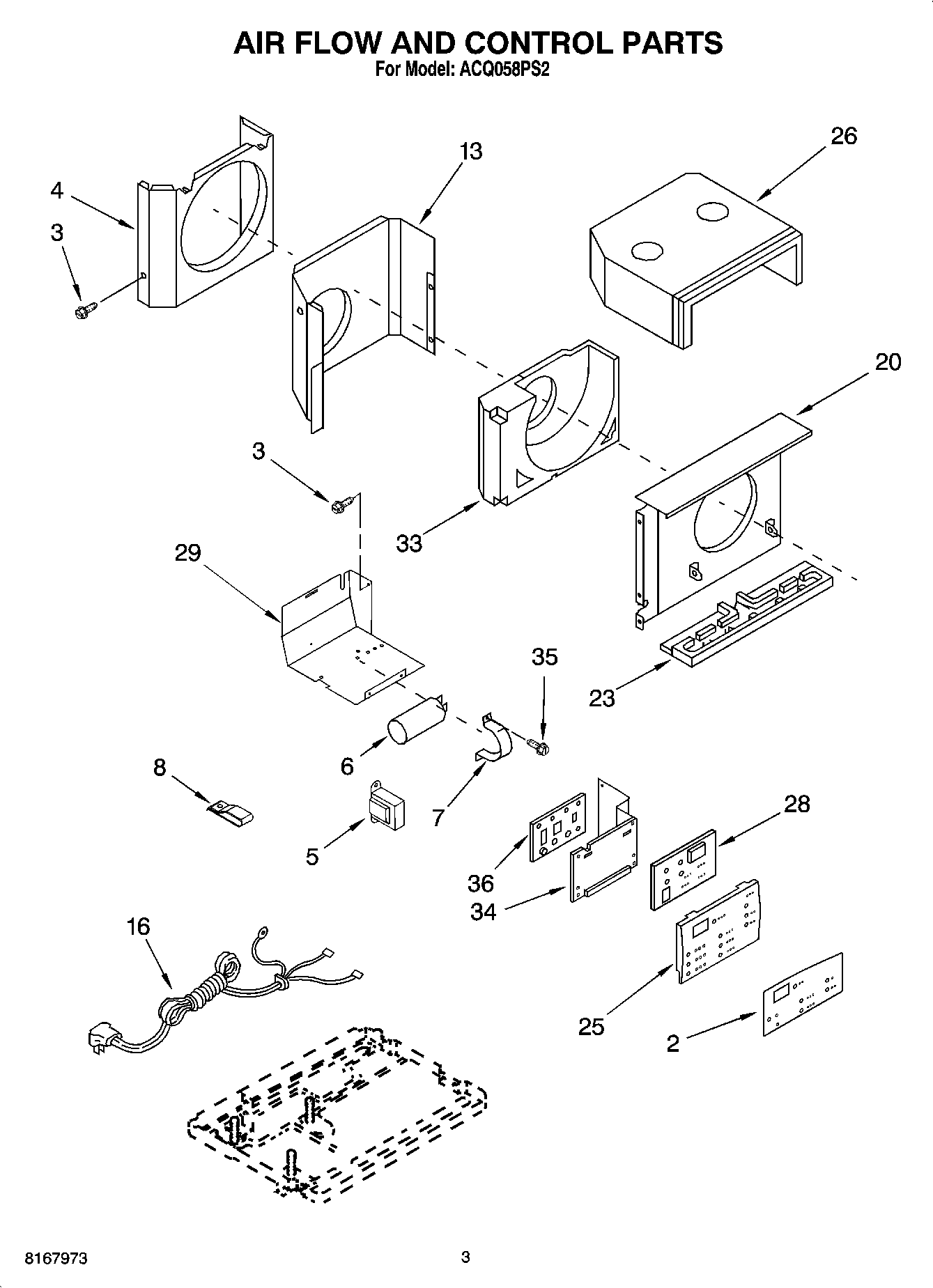

ACQ058PS2 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
2	Overlay
3	Screw
4	Shroud, Condenser
5	Transformer
6	Capacitor, Running
7	Bracket, Capacitor
8	Clamp, Cord
13	Wall, Dividing
16	Overload
20	Shroud, Evaporator
23	Pan, Evaporator
25	Housing, Control Panel
26	Hood, Air Housing
28	Interface Board, (Low Voltage)
29	Panel, Rear- Control Box
33	Housing, Air
34	Panel, Front- Control Box
35	W11245710 Whirlpool Refrigerator Screw
36	Main Board (High Voltage)
