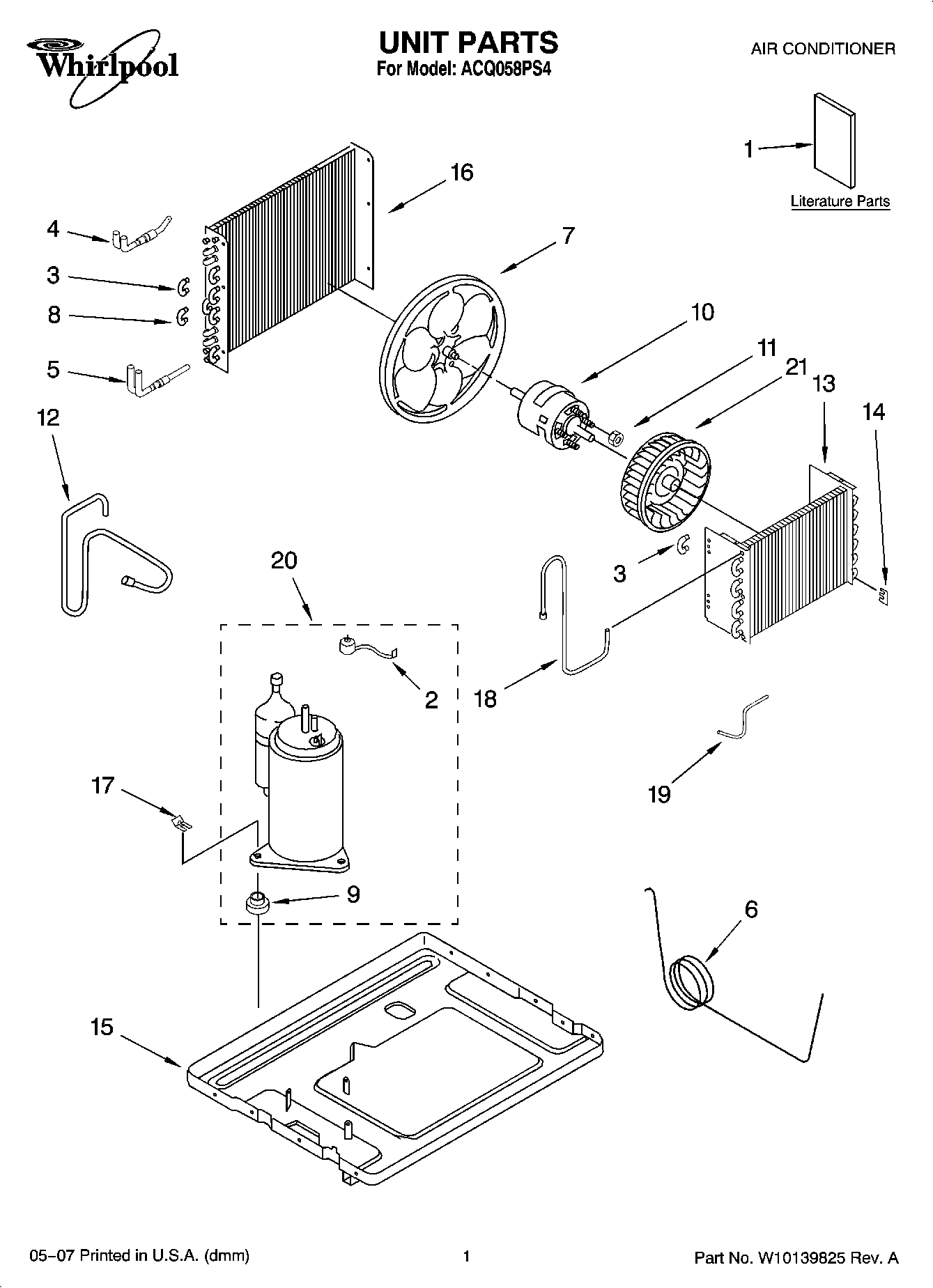

ACQ058PS4 01 – UNIT PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & care Guide
1	Energy Guide
2	Overload
3	Bend, Return
4	Tube, Inlet
5	Tube, Outlet
6	Tube, Restrictor
7	Blade, Fan
8	Bend, Return
9	Grommet (3)
10	Motor, Fan
11	Nut, Hex
12	Tube, Discharge
13	Evaporator
14	Support, Tube Sensor
15	Base
16	Condenser
17	Nut, Hex
18	Tube, Suction
19	Tube, Inlet
20	Compressor Assembly
21	Wheel, Blower
21	REFRIGERANT CHARGE 14.10 oz.
