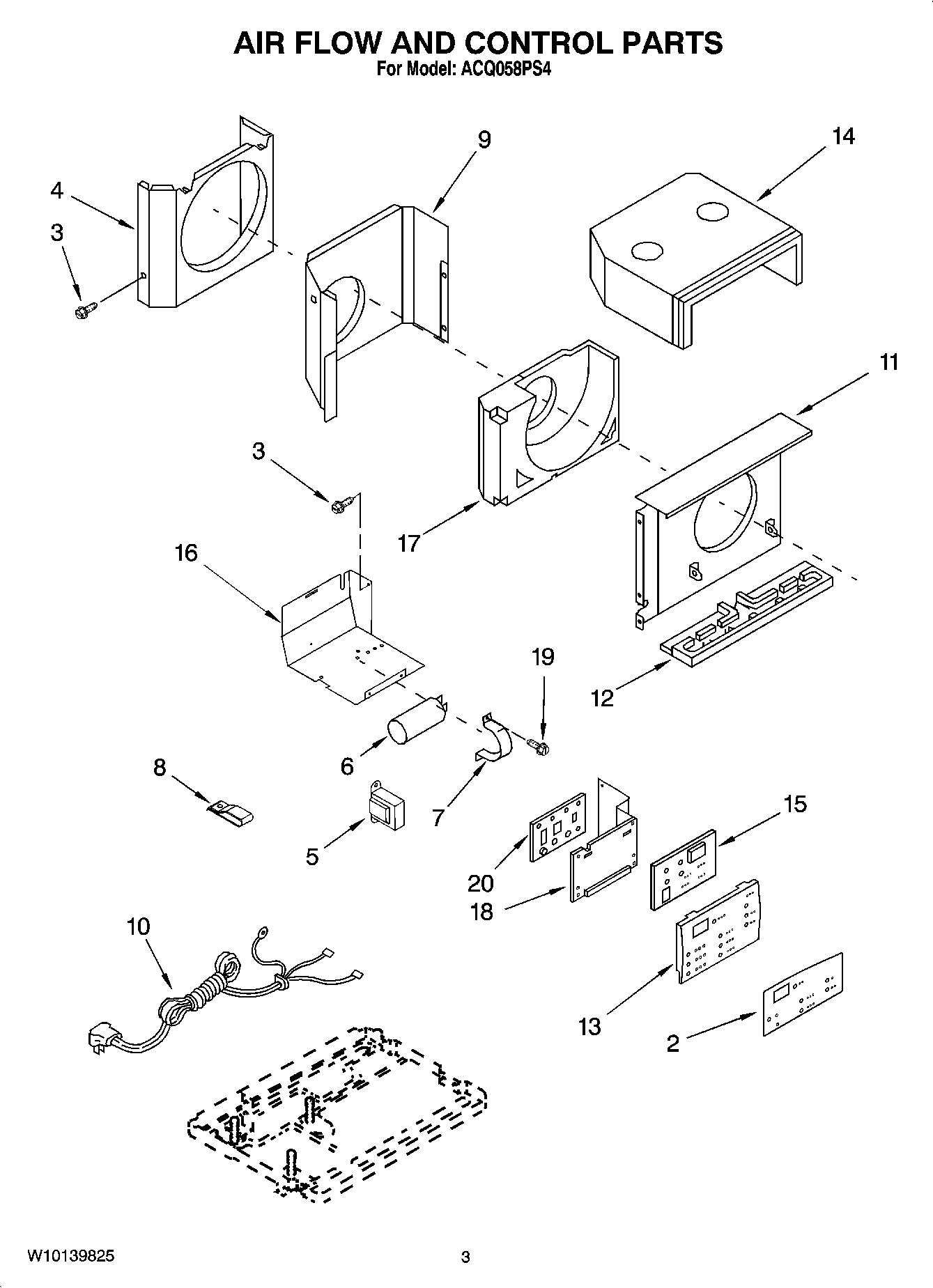

ACQ058PS4 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
2Overlay
3Screw
4Shroud, Condenser
5Transformer
6Capacitor, Running
7Bracket, Capacitor
8Clamp, Cord
9Wall, Dividing
10Overload
11Shroud, Evaporator
12Pan, Evaporator
13Housing, Control Panel
14Hood, Air Housing
15Interface Board, (Low Voltage)
16Panel, Rear- Control Box
17Housing, Air
18Panel, Front- Control Box
19W11245710 Whirlpool Refrigerator Screw
20Main Board (High Voltage)
