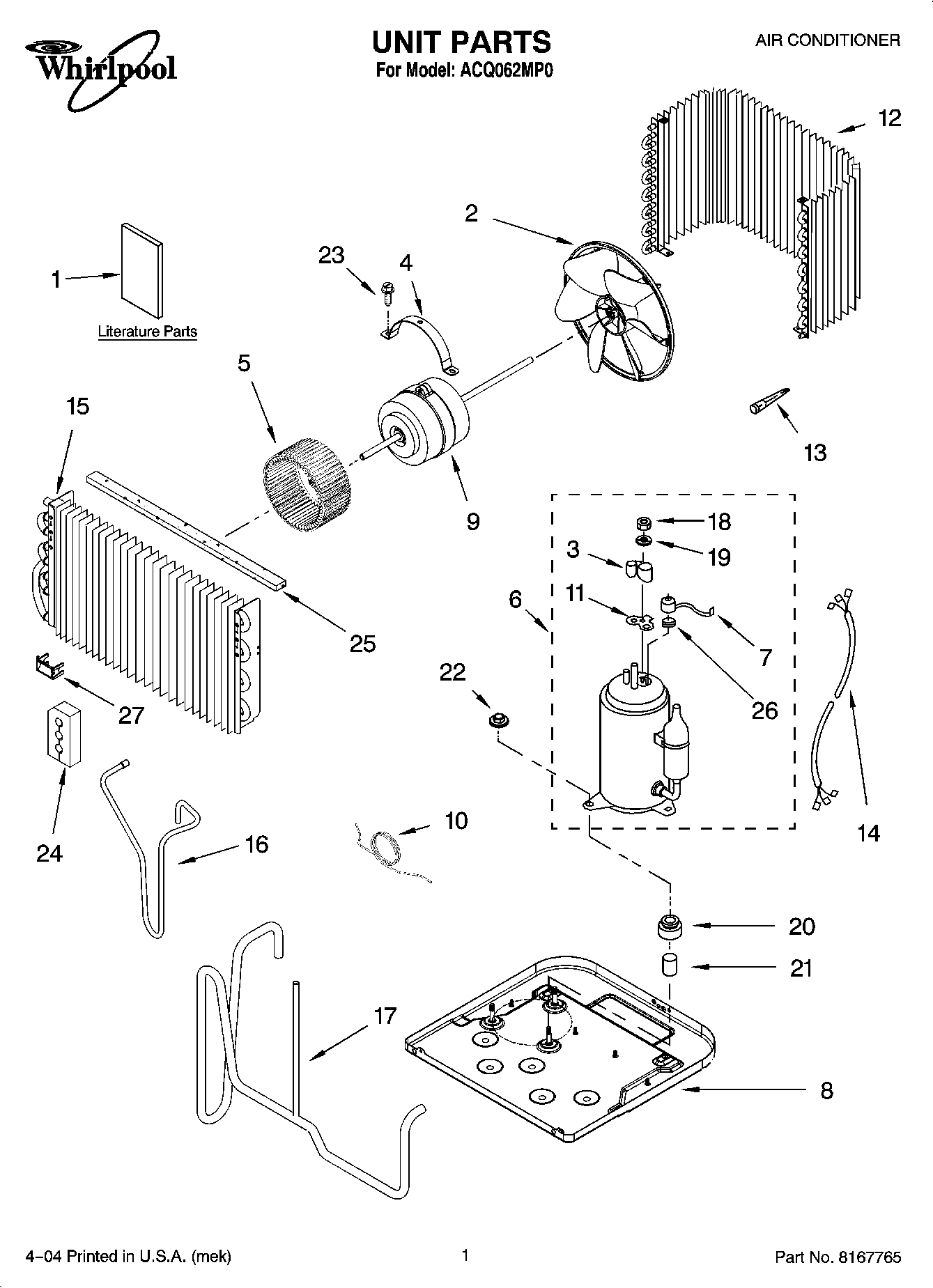

ACQ062MP0 01 – UNIT PARTS
Written by
in
ACQ062MP0 01 – UNIT PARTS
Products
Position
Product
1
LITERATURE PARTS (Guide, Energy)
1
LITERATURE PARTS (Wiring Diagram Label)
1
LITERATURE PARTS (Use & Care Guide)
2
Fan Blade, Condenser
3
Cover, Terminal
4
Clip, Fan Motor
5
Wheel, Blower
6
COMPRESSOR
7
Overload
8
Base
9
Motor, Fan
10
Tube, Capillary
11
Gasket, Terminal Cover
12
Condenser
13
WP1162526 Whirlpool Air Conditioner Strainer
14
Harness, Wiring
15
EVAPORATOR
16
Tube, Discharge
17
Tube, Suction
18
W10833054 Whirlpool Air Conditioner Mounting Nut
19
Washer
20
Grommet
21
Sleeve, Compressor Grommet
22
Locknut
23
Screw
24
Insulator, Tube
25
WP854334 Whirlpool Air Conditioner Sealing Strip
26
Spring, Overload
27
Clip, Anticipator
27
REFRIGERANT CHARGE 15.0 oz.
←
