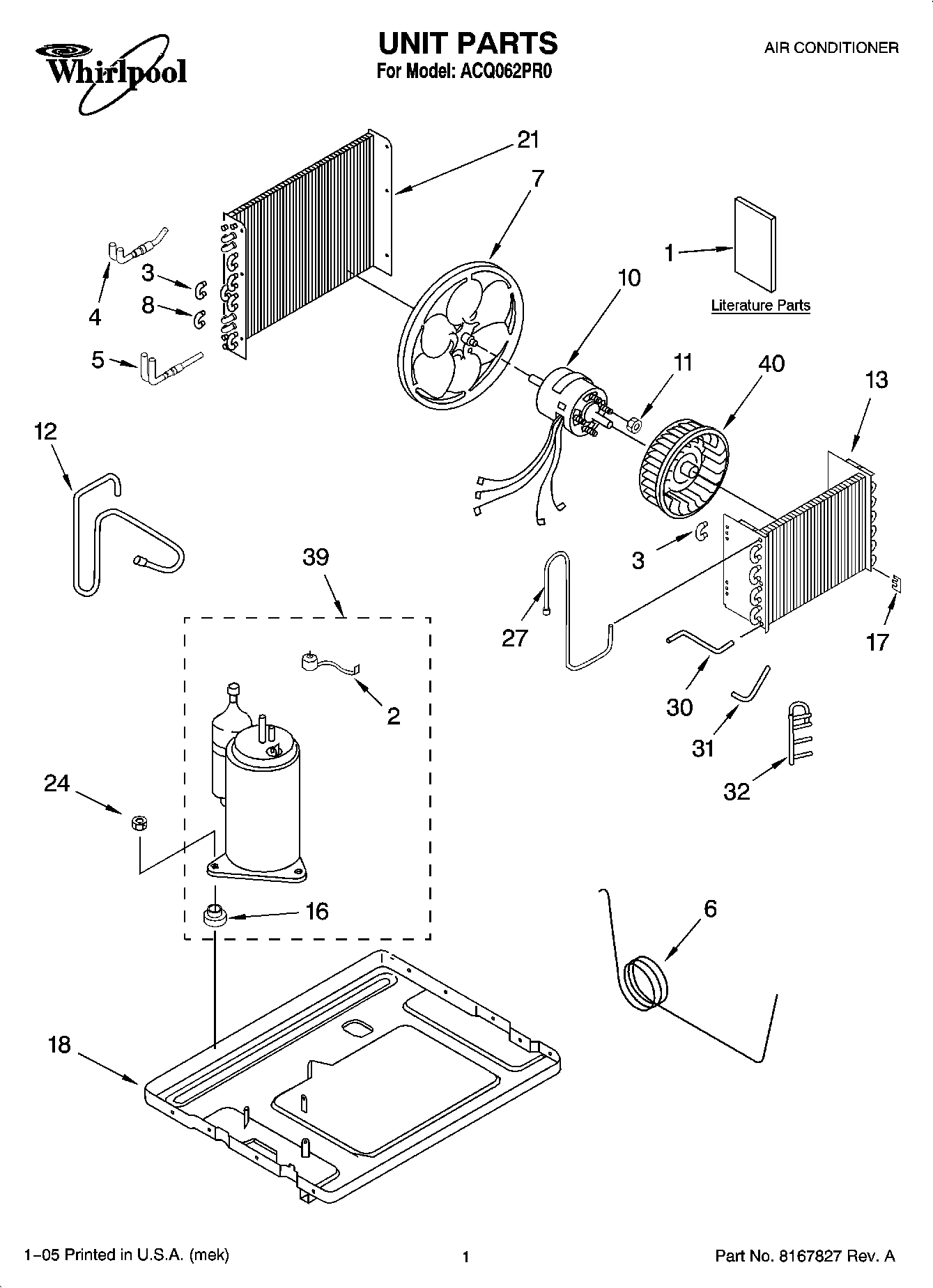

ACQ062PR0 01 – UNIT PARTS

Products

PositionProduct
1Wiring Diagram
1Use & care Guide
1Energy Guide
2Overload
3Bend, Return
4Tube, Inlet Condenser
5Tube, Outlet Condenser
6Tube, Restrictor
7Blade, Fan
8Bend, Return
10Motor, Fan
11Nut, Hex
12Tube, Discharge
13Evaporator
16Grommet (3)
17Support, Tube Sensor
18Base
21Condenser
24Nut, Hex
27Tube, Suction
30Tube, Feeder (Restrictor)
31Tube, Feeder (Restrictor)
32Manifold, Assembly
39Compressor Assembly
40Wheel, Blower
40REFRIGERANT CHARGE 13.30 oz.
