ACQ062PR1 03 – CABINET PARTS
Written by
in

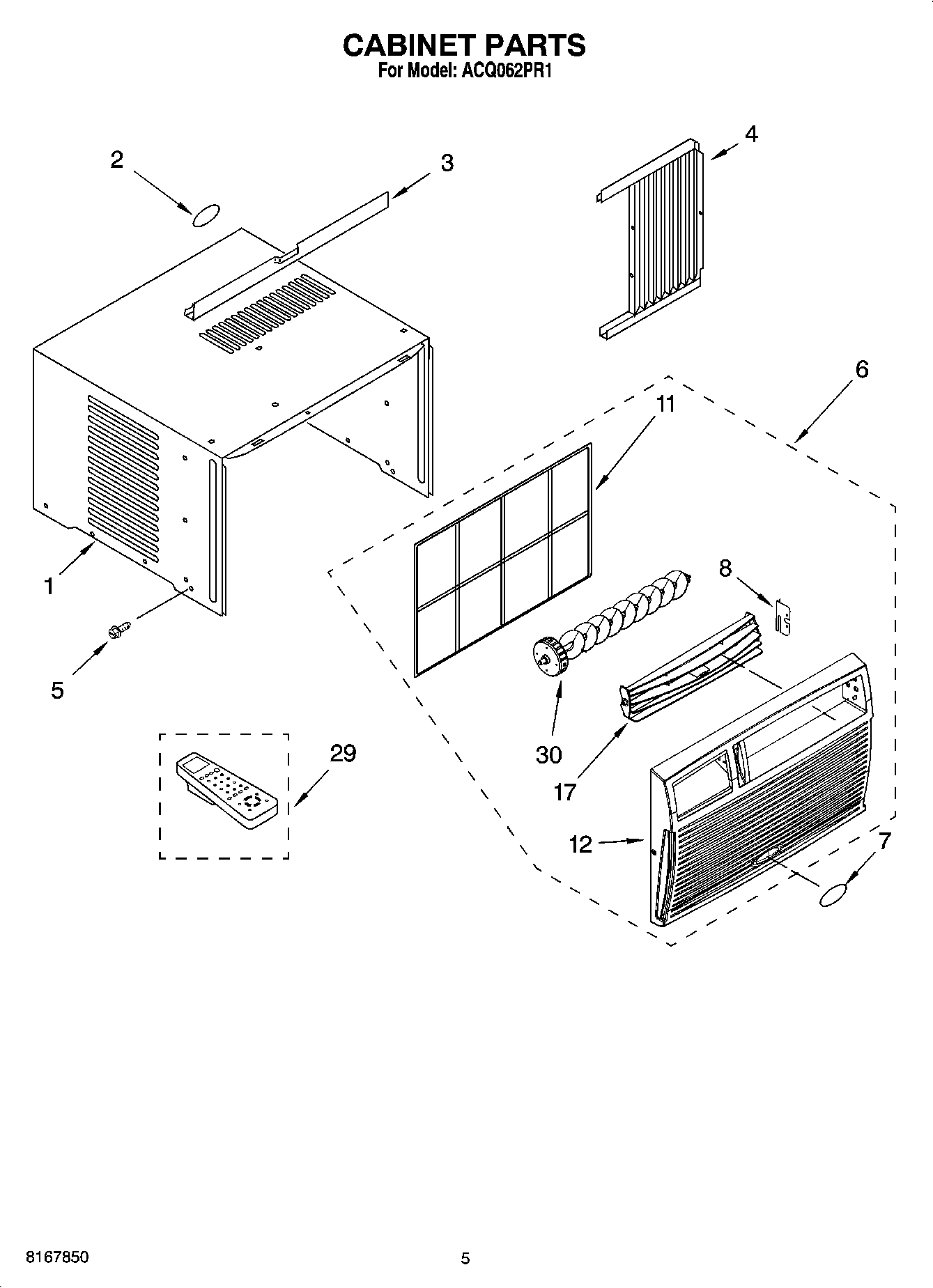

ACQ062PR1 03 – CABINET PARTS
Products
Position
Product
1
Cabinet
2
Nameplate, Rear
3
Channel, Top
4
Curtain (Left Side)
4
Curtain (Right Side)
5
Screw (8)
6
Front, Cabinet Assembly
7
Nameplate
8
Support, Louver
11
Filter
12
Front, Cabinet
17
Louver, Assembly
29
Control, Remote
30
Louver, Vertical
←
