ACQ062PS6 03 – CABINET PARTS – Aparts

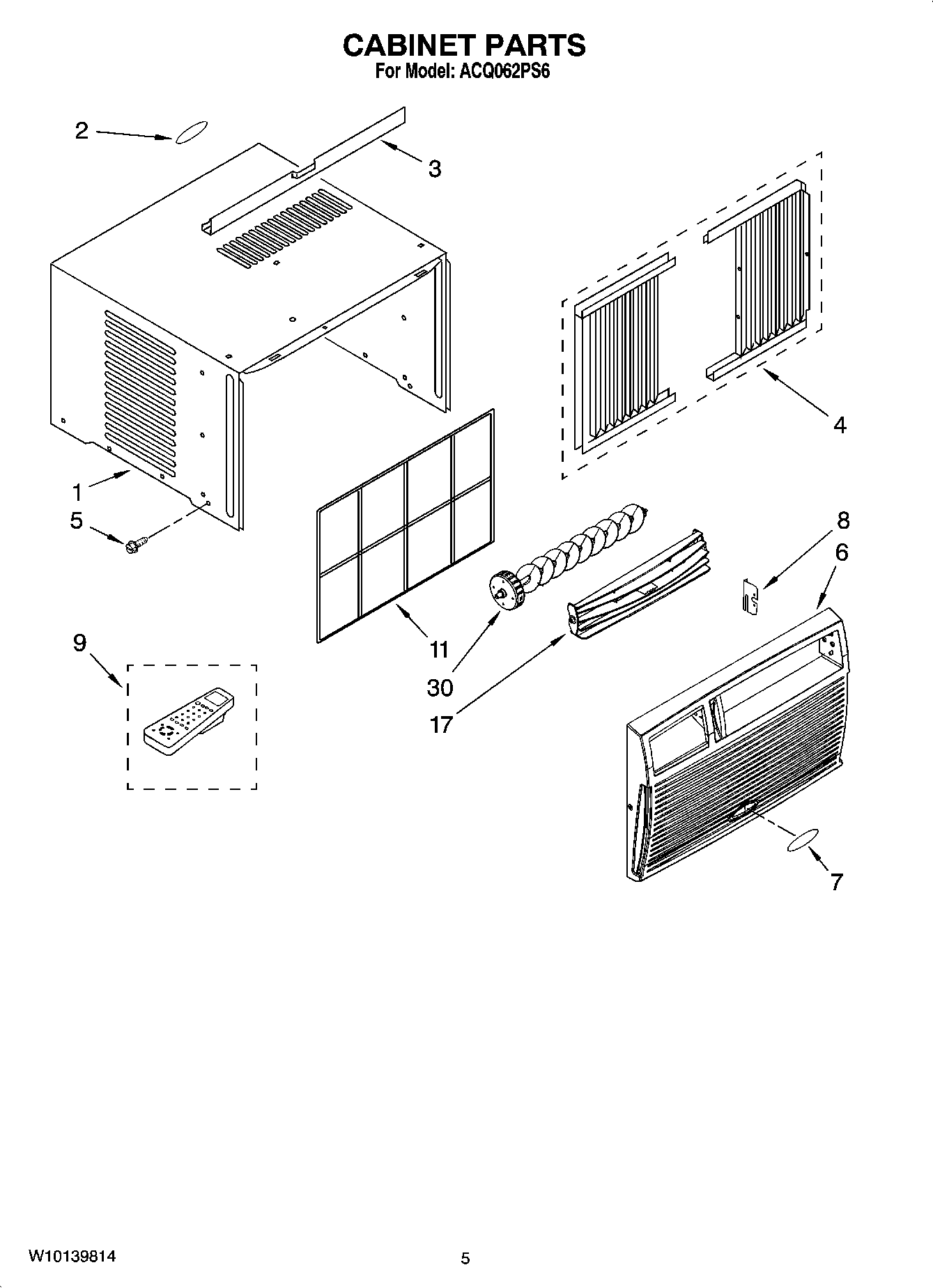

ACQ062PS6 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Nameplate, Rear
3	Channel, Top
4	Curtain Assy (Includes 3)
5	Screw (8)
6	Front, Cabinet
7	Nameplate
8	Support, Louver
9	Control, Remote
11	Filter
17	Louver, Assembly
30	Louver, Vertical
