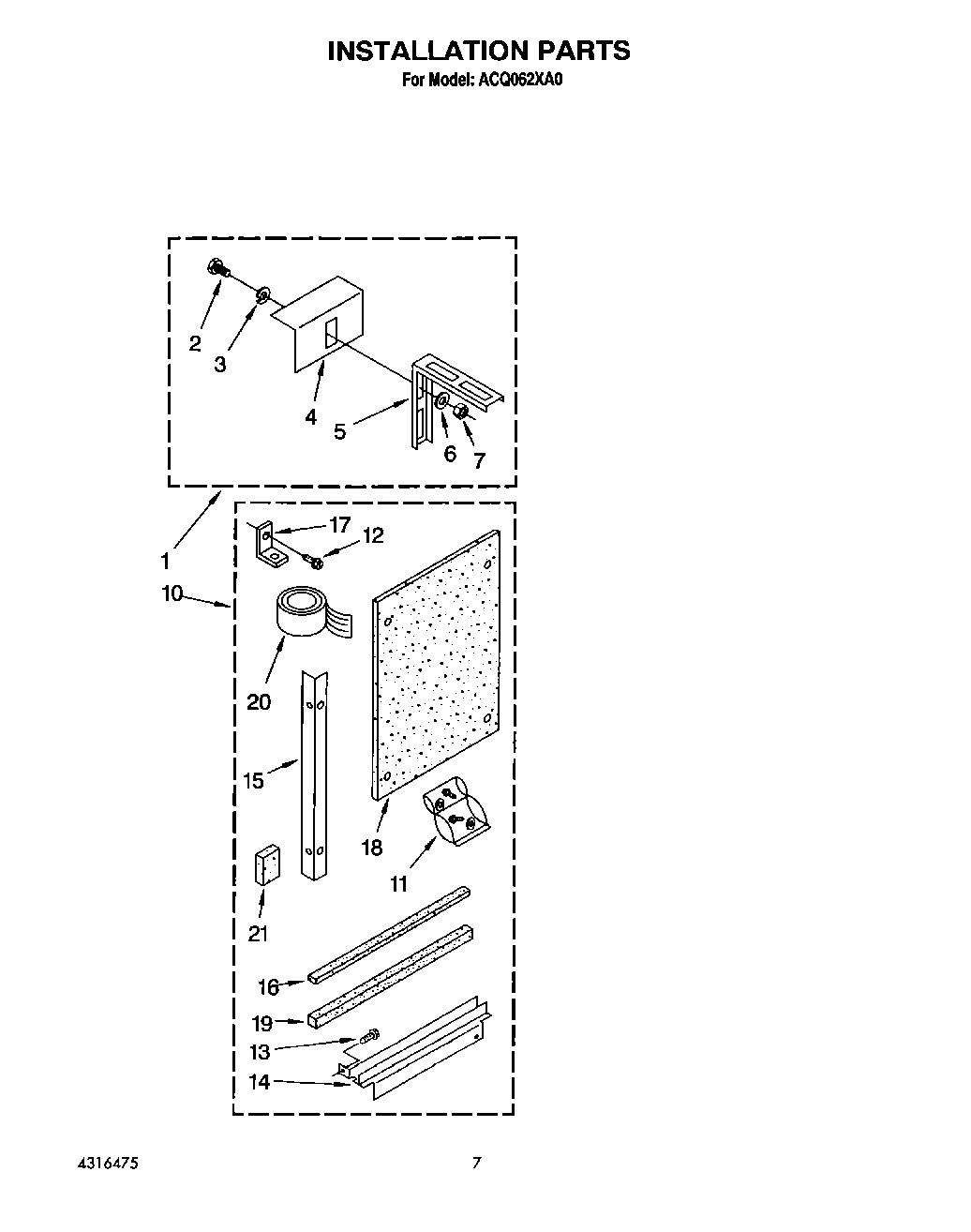

ACQ062XA0 05 – INSTALLATIONadmin2025-04-26T10:56:37+00:00ACQ062XA0 05 – INSTALLATION
Products
| Position | Product |
|---|
| Instructions, Installation (Outside Sill Kit) |
| 1 | Kit, Outside Sill Bracket |
| 2 | Bolt, 1/4 x 3/4 (6) |
| 3 | WP120393 Whirlpool Washer Assembly |
| 4 | Bracket, Sill Mounting (2) |
| 5 | Bracket, Rail Support (2) |
| 6 | Lockwasher (6) |
| 7 | Nut, Hex (6) |
| 10 | Kit, Standard Window Installation |
| 11 | Bag, Accessory |
| 12 | Screw, Wood 8-15 x .750 |
| 13 | WP965173 Whirlpool Dishwasher Screw |
| 14 | Bracket, R.S. |
| 14 | Bracket, L.S. |
| 15 | Angle, Side (2) |
| 16 | Strip, Seal |
| 17 | Bracket |
| 18 | Board, Filler (2) |
| 19 | Gasket, Meeting Rail |
| 20 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 21 | Spacer, Block (4) |
