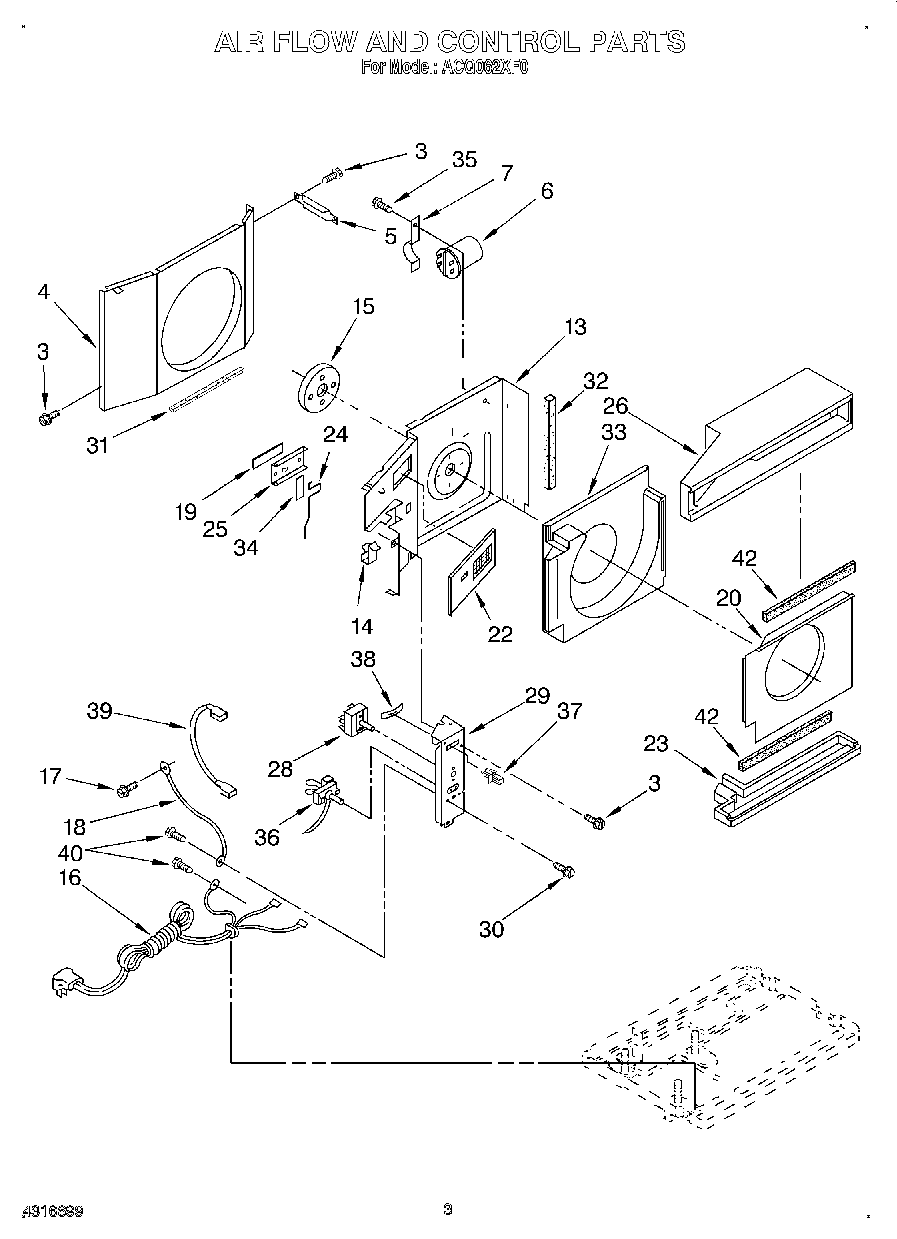

ACQ062XF0 02 – AIRFLOW & CONTROL

Products

Position	Product
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor
7	Bracket, Capacitor
13	Wall, Dividing
14	Clamp, Wiring
15	Insulation, Motor
16	Cord, Appliance
18	Wire, Ground
19	Barrier Protective
20	Shroud, Evaporator
22	Screen/Insul. Assembly
23	Pan, Evaporator
24	Arm, Exhaust Door
25	Door, Exhaust
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Control
30	Screw, 6-32 x .175
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
34	Spacer
35	Screw, 8 x 3/8
36	Control, Temp.
37	Actuator, Door
38	Spring, Retainer
39	Wire, Jumper
40	Screw 8-18 x .295
42	Seal (2)
