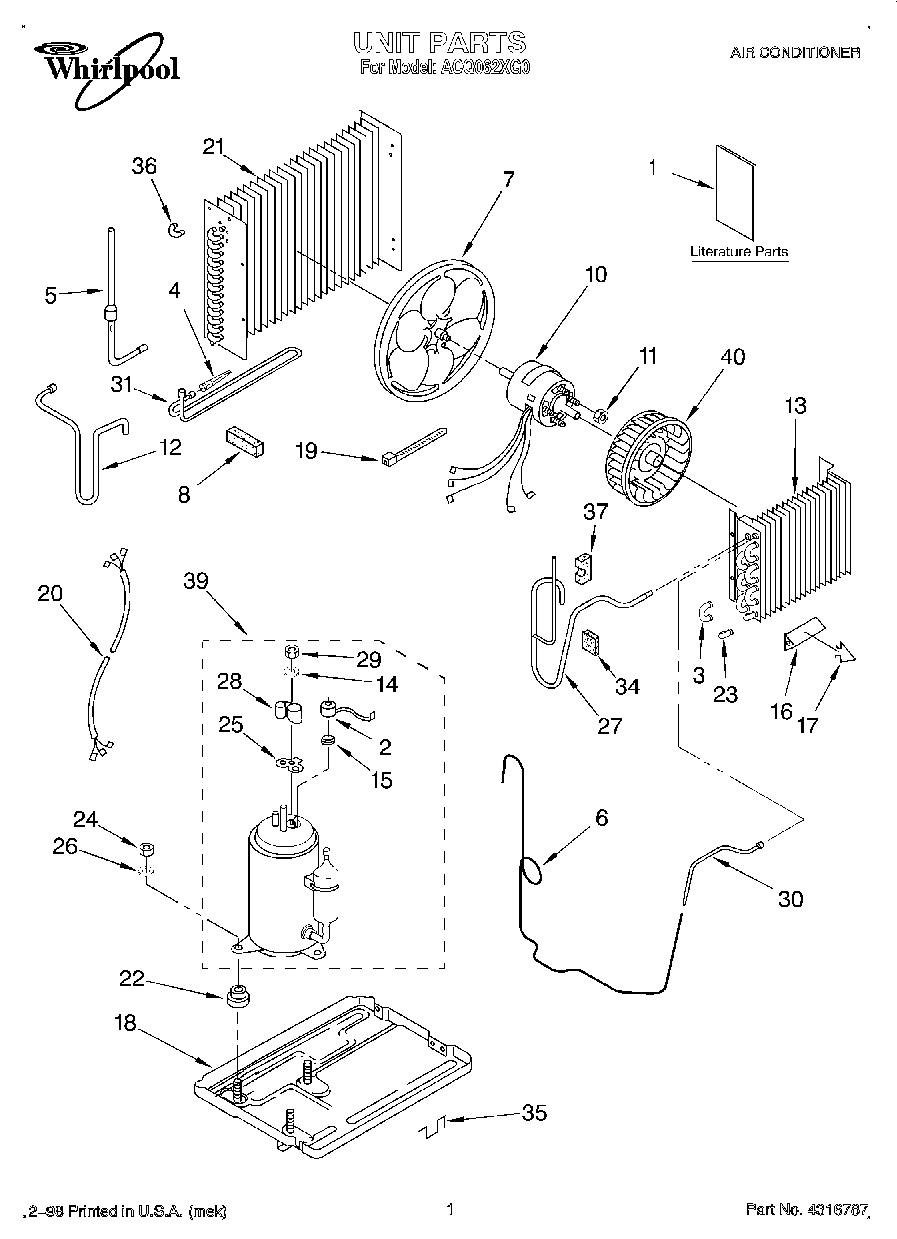

ACQ062XG0 01 – UNIT, LITERATURE

Products

Position	Product
1	Wiring Diagram
1	Owners Manual
1	Tech Sheet
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Evaporator (11)
4	WP1162526 Whirlpool Air Conditioner Strainer
5	Tube, Charge
6	Tube, Restrictor
7	Blade, Fan
8	WP854334 Whirlpool Air Conditioner Sealing Strip
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
14	Gasket, Nut
15	Spring, Overload
16	Anticipator
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Condenser
22	Grommet
23	WP855199 Whirlpool Bend Return
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	WP120393 Whirlpool Washer Assembly
27	Tube, Suction
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Tube, Feeder (Restrictor)
31	Tube, Wet Loop
34	Sealer, Tube
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
37	Sealer, Tube
39	Compressor Assembly
40	Wheel, Blower
