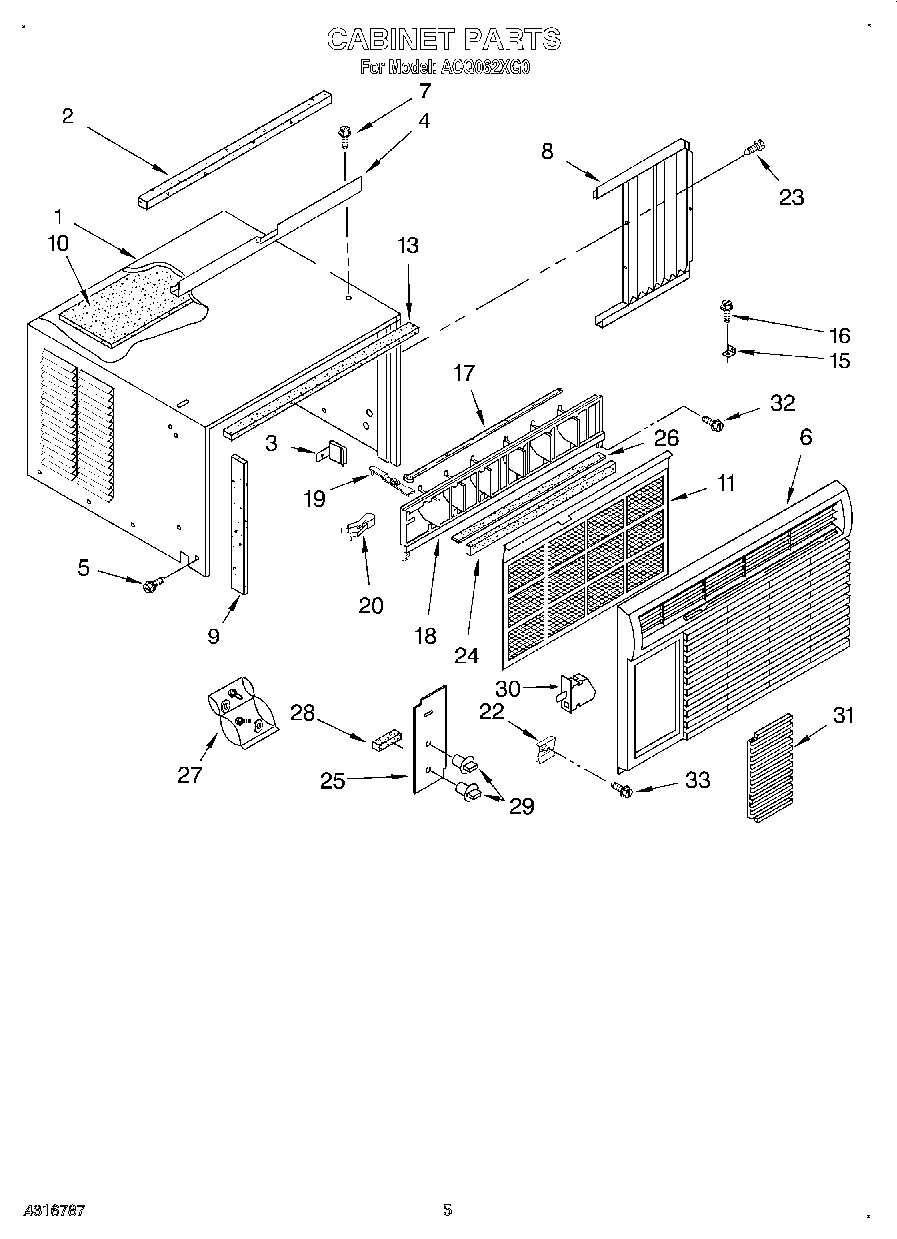

ACQ062XG0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	Clip, Vertical Louver
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet
7	WP308685 Whirlpool Microwave Screw
8	Curtain (R.S.)
8	Curtain (L.S.)
9	WP854334 Whirlpool Air Conditioner Sealing Strip
10	Insulation, Top
11	Filter
13	Seal
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver
20	Detent Spring (2)
22	Clip, Cabinet Front (2)
23	Screw, 8-18 x 3/8
24	Seal, Vertical Louver
25	Escutcheon
27	Bag, Accessory
28	Spacer, Escutcheon Plate (3)
29	Knob (3)
30	Monitor, Filter
31	Door, Control
32	Screw 8-18 x .295
33	Screw
