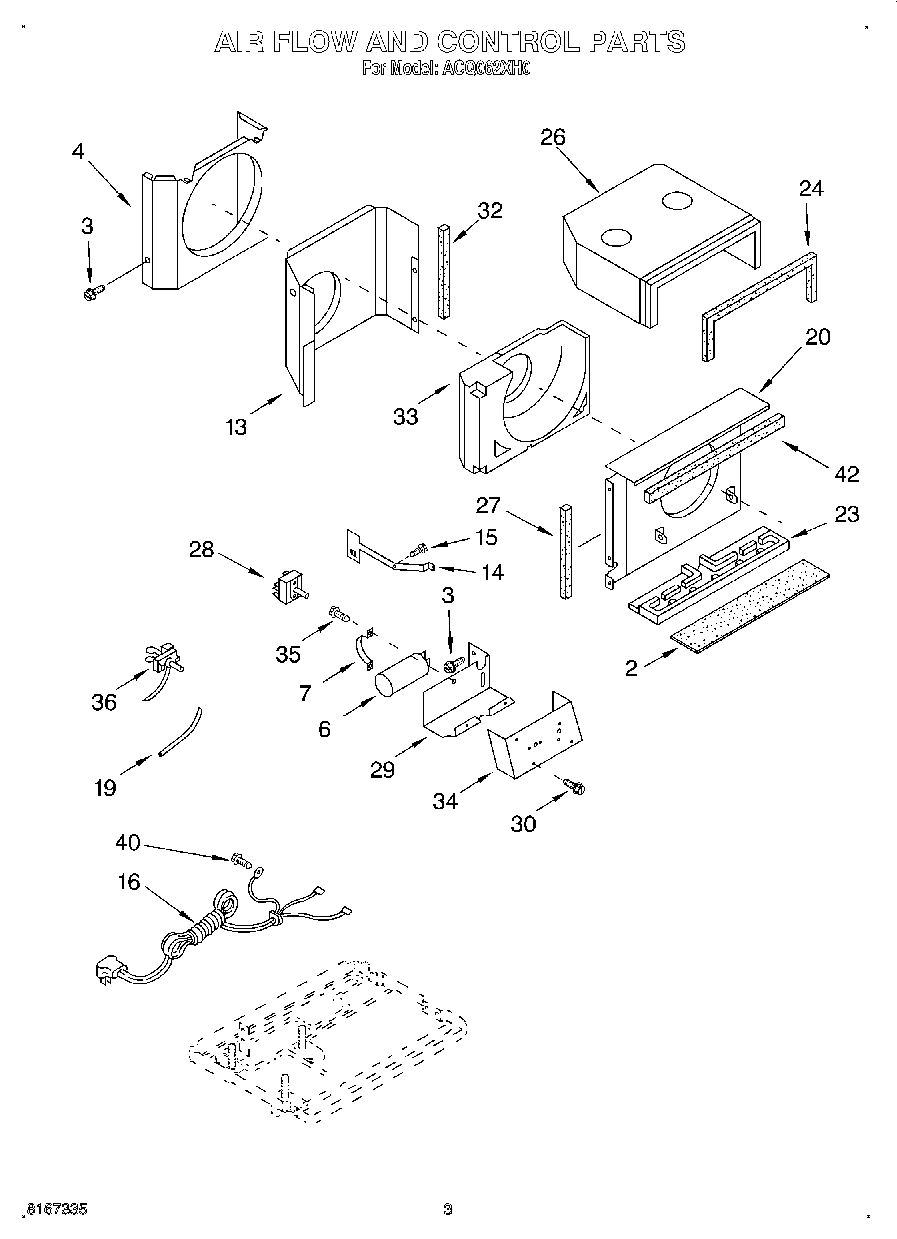

ACQ062XH0 02 – AIRFLOW AND CONTROL

Products

Position	Product
2	Insulation, Drain Pan
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
6	Capacitor
7	Bracket, Capacitor
13	Wall, Dividing
14	Door, Exhaust
15	Screw, 8-18 x .437
16	Cord, Appliance
19	Sleeve, Insulating
20	Shroud, Evaporator
23	Pan, Evaporator
24	Seal
26	Hood, Air Housing
27	Seal, Left Side
28	Switch, Rotary
29	Box, Control
30	Screw, 6-32 x .175
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
34	Panel, Control
36	Control, Temp.
40	Screw 8-18 x .295
42	Seal, Right Side
