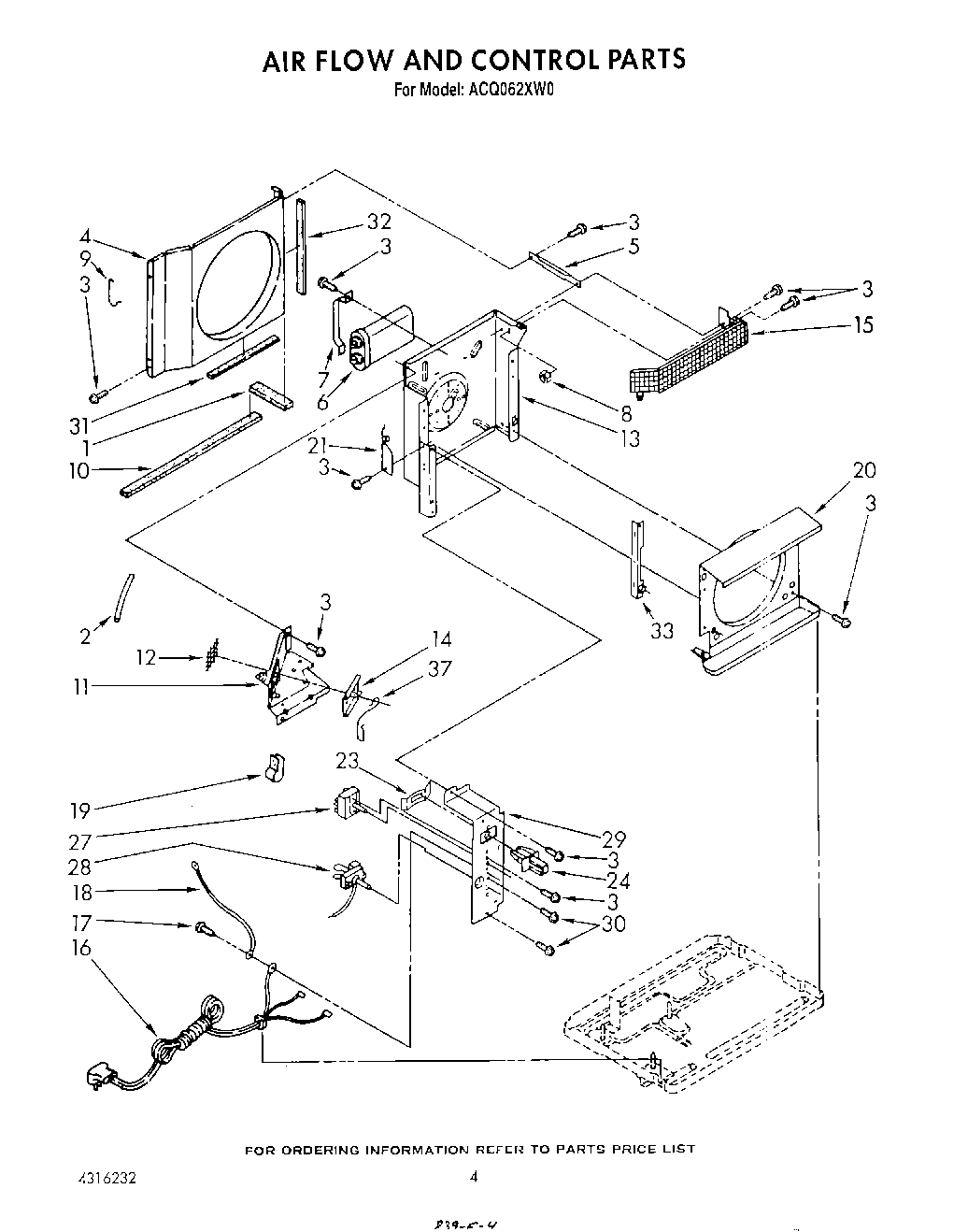

ACQ062XW0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	212643 Whirlpool Refrigerator Permagum Sealer
3	WP489069 Whirlpool Compactor Screw
3	Screw, Repair
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Nut, Speed No.8A
9	Clip, Shroud (2)
10	WP854334 Whirlpool Air Conditioner Sealing Strip
11	Extension, Dividing Wall (Requires Insulation Part No. 469938)
12	Screen, Exhaust Door
13	Wall, Dividing Assembly (Requires Insulation Part No. 469938)
14	Door, Exhaust
15	Guard, Evaporator Impeller
16	Cord, Appliance
17	WPW10141604 Whirlpool Screw
18	Wire, Ground
19	Clamp, Cable
20	Shroud, Evaporator
21	Plate, Dividing Wall
23	Spring, Retainer
24	Actuator, Door
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
31	Seal, Condenser
32	Seal, Condenser (R.S.)
33	Bracket, Evaporator Mounting
37	Arm, Exhaust Door
