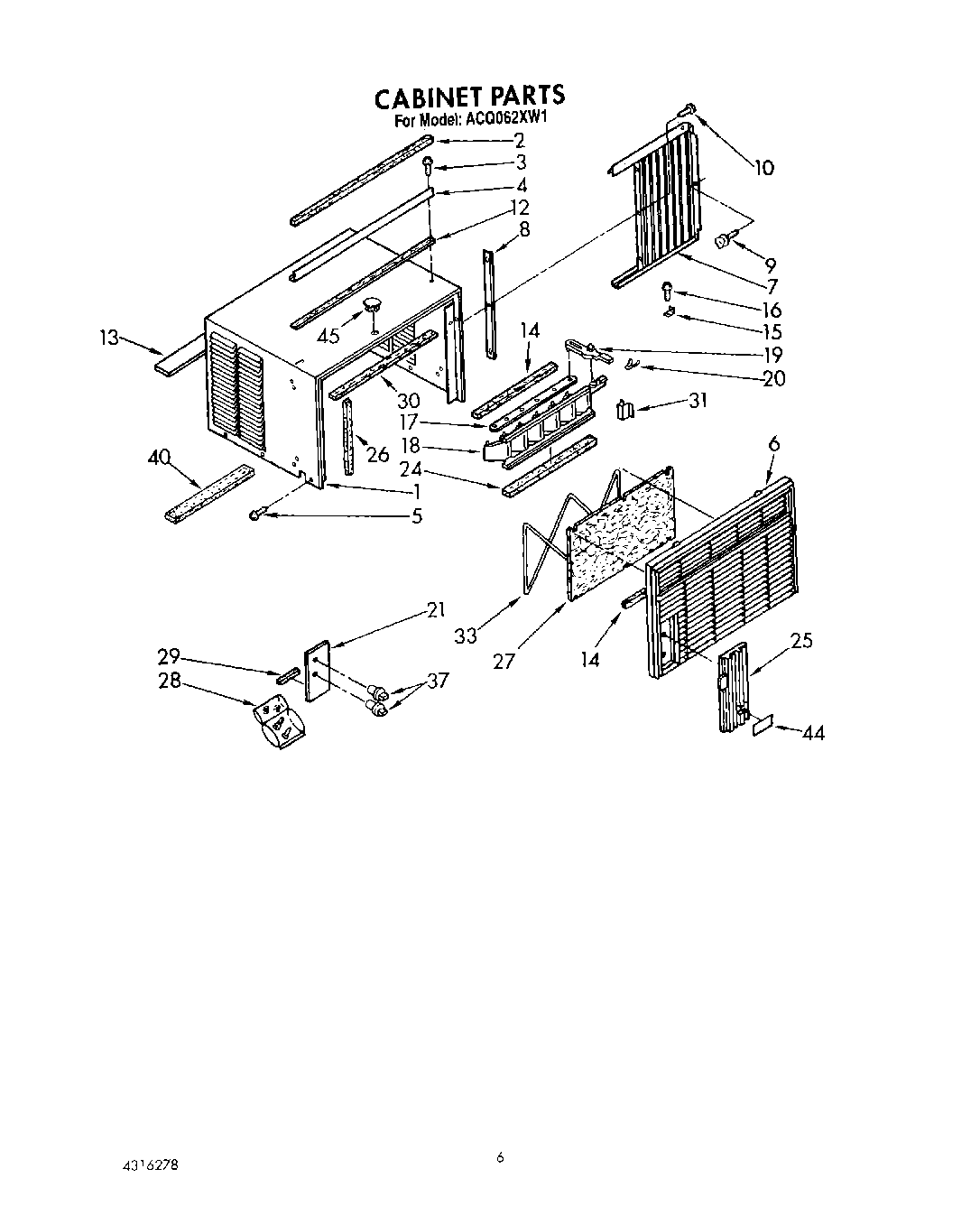

ACQ062XW1 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet
7	Housing, Curtain (L.S.)
7	Housing, Curtain (R.S.)
8	Retainer, Curtain (2)
9	Thumbscrew (2)
10	Screw, 8 x 7/16
12	Seal, Strip
13	Insulation, Top
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
21	Escutcheon
24	Seal, Vertical Louver
25	Door, Control
26	Insulation, Side
27	Filter
28	Bag, Accessory
29	WP854334 Whirlpool Air Conditioner Sealing Strip
30	Seal
31	Clip, Vertical Louver
33	Retainer, Filter
37	Knobs, (3)
40	Seal
44	Plate, Name
45	Cover, Hole
