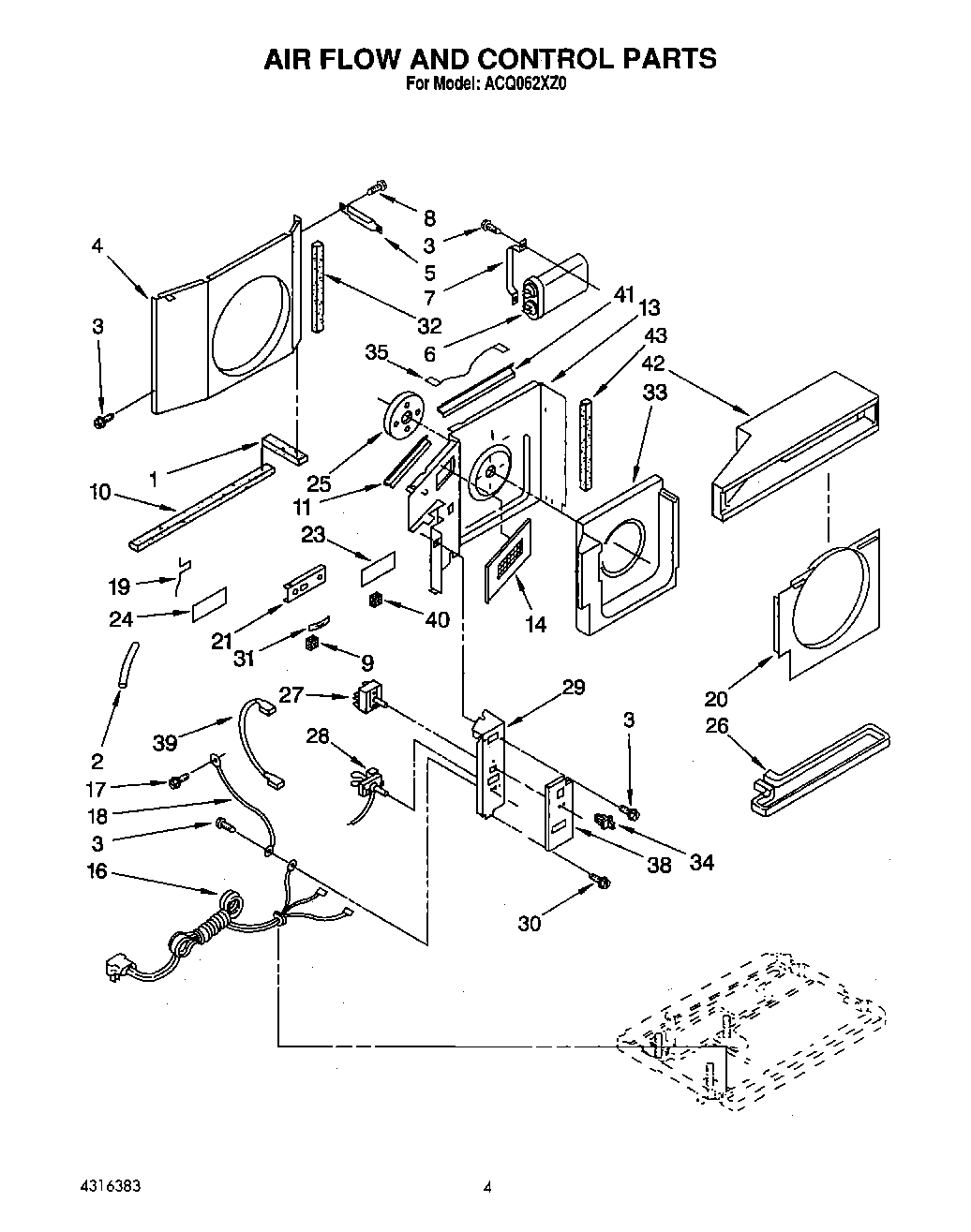

ACQ062XZ0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Foam Tube
3	Screw, 8 x 3/8
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Screw, 8-18 x 3/8
9	Sealer, Tube
11	Guard, Edge Seal
13	Wall, Dividing
14	Screen/Insul. Assembly
16	Cord, Appliance
17	Screw 8-18 x .295
18	Wire, Ground
19	Arm, Exhaust Door
20	Shroud, Evaporator
21	Door, Exhaust
23	Spacer
24	Barrier Protective
25	Insulation, Motor
26	Pan, Evaporator
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
31	Spring, Retainer
32	Seal, Condenser (R.S.)
33	Housing, Air
34	Actuator, Door
35	Wire, Lead
38	Insulation, Control Panel
39	Wire, Jumper
40	Seal
41	Guard, Edge Seal
42	Hood, Air Housing
43	WP854334 Whirlpool Air Conditioner Sealing Strip
