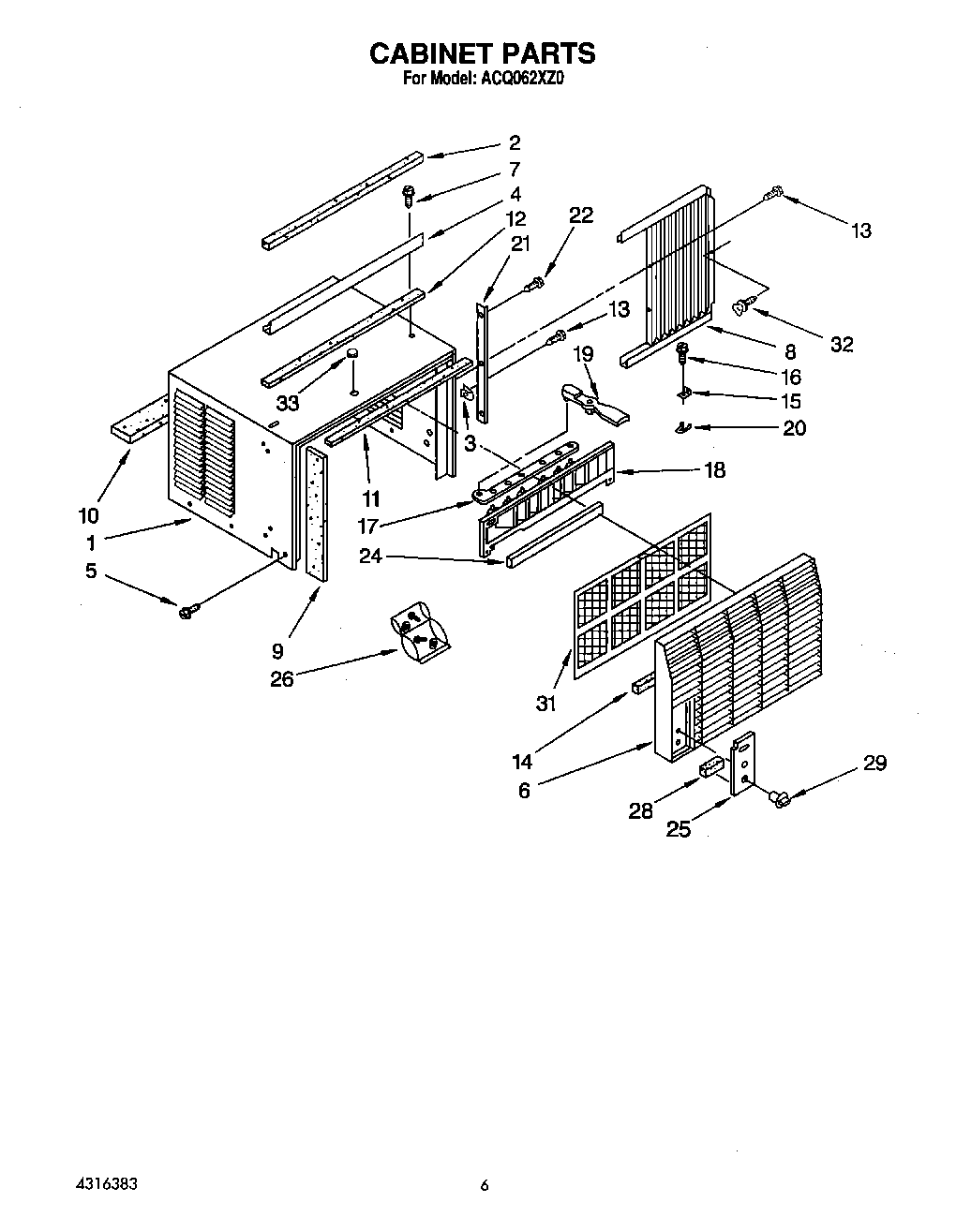

ACQ062XZ0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3Clip, Vertical Louver
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet
7WP308685 Whirlpool Microwave Screw
8Housing, Curtain (L.S.)
8Housing, Curtain (R.S.)
9Insulation, Side
10Insulation, Top
11Seal
12Seal, Strip
13Screw, 8-18 x 3/8
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver
20Detent Spring (2)
21Retainer, Curtain (2)
22Screw 8-18 x .295
24Seal, Vertical Louver
25Escutcheon
26Bag, Accessory
28WP854334 Whirlpool Air Conditioner Sealing Strip
29Knob, Control (2)
31Filter
32Thumbscrew (2)
33Cover, Hole
