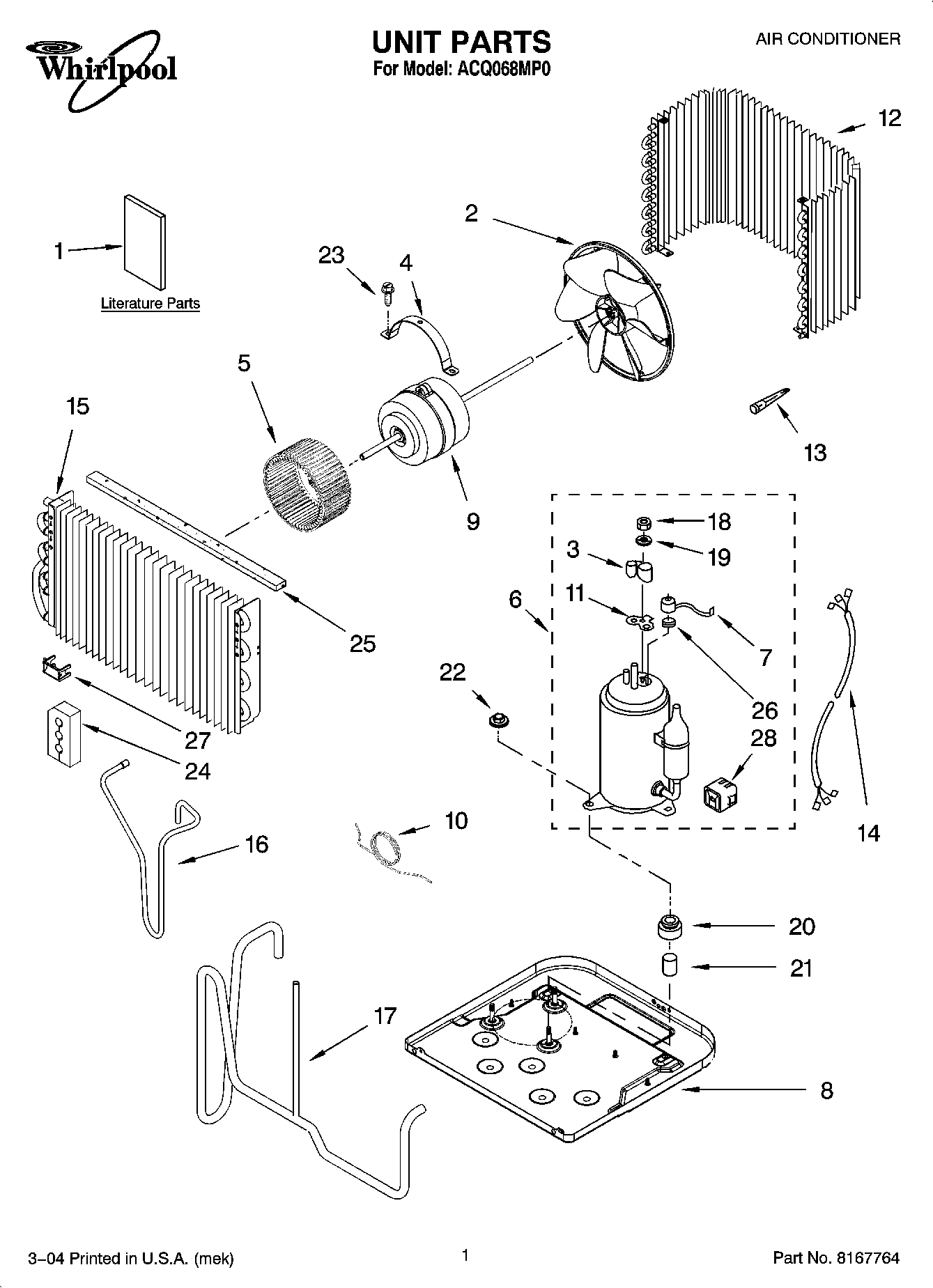

ACQ068MP0 01 – UNIT PARTS

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Guide, Energy)
1	LITERATURE PARTS (Wiring Diagram Label)
2	Fan, Condenser
3	Cover, Terminal
4	Clip, Fan Motor
5	Wheel, Blower
6	Compressor
7	Overload
8	Base
9	Motor, Fan
10	Tube, Capillary
11	Gasket, Terminal Cover
12	Condenser
13	WP1162526 Whirlpool Air Conditioner Strainer
14	Harness, Wiring
15	EVAPORATOR
16	Tube, Discharge
17	Tube, Suction
18	W10833054 Whirlpool Air Conditioner Mounting Nut
19	Washer
20	Grommet
21	Sleeve, Compressor Grommet
22	Locknut
23	Screw
24	Insulator, Tube
25	WP854334 Whirlpool Air Conditioner Sealing Strip
26	Spring, Overload
27	Clip, Anticipator
28	Start Device
28	REFRIGERANT CHARGE 15.0 oz.
