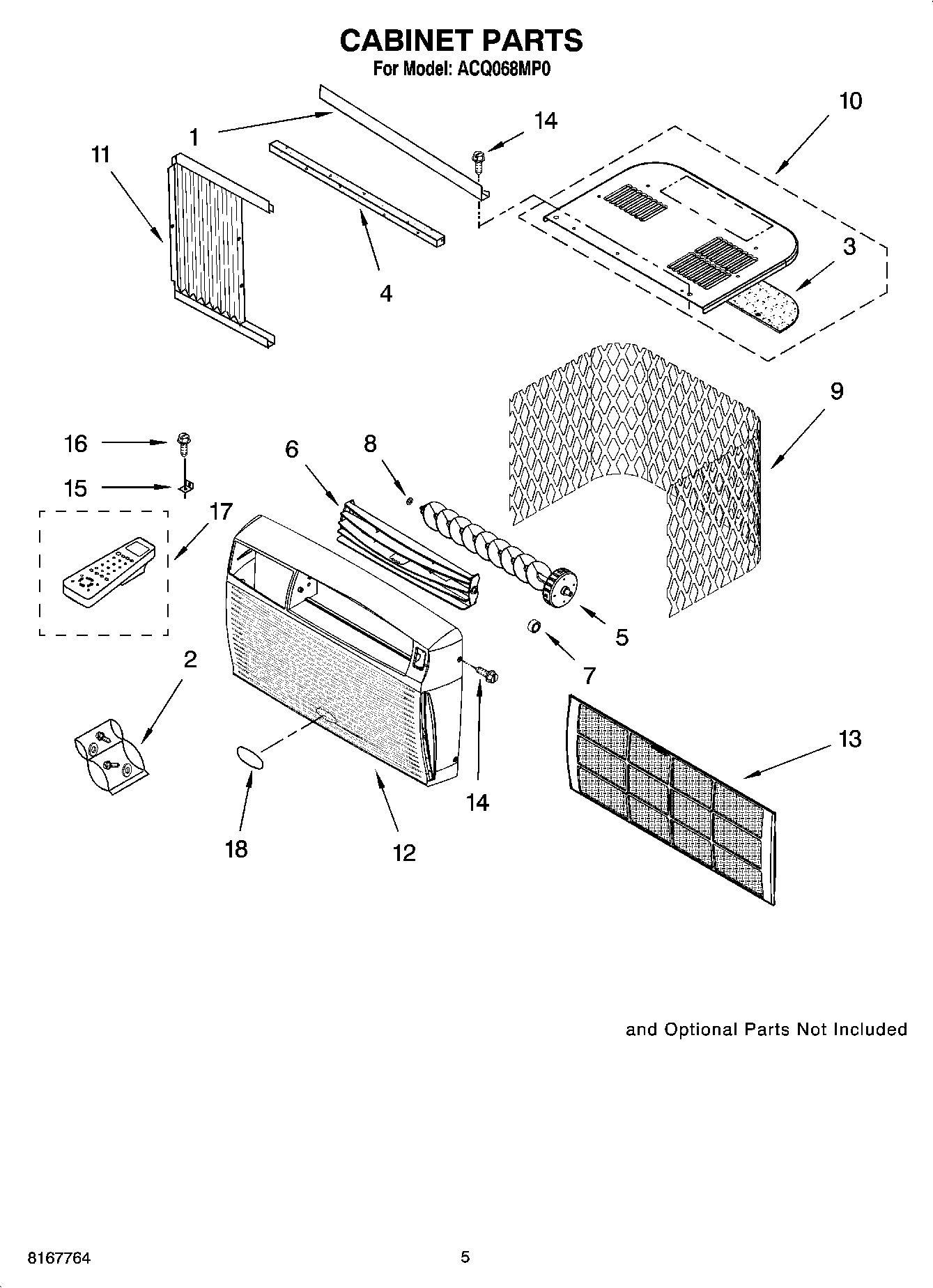

ACQ068MP0 03 – CABINET PARTS

Products

Position	Product
1	Top Channel
2	Bag, Accessory
3	Insulation, Top
4	Gasket, Meeting Rail
5	Louver Assembly, Vertical
6	Louver, Horizontal
7	Bushing, Horizontal Louver
8	WASHER
9	Grille, Rear
10	Cover, Top
11	Curtain Assembly (Right Side)
11	Curtain Assembly (Left Side)
12	Front, Cabinet
13	Filter, Woven
14	Screw
15	Bracket
16	Screw, Wood 8-15 x .750
17	Control, Remote
18	Condensate, Drain Kit
18	Following Parts Not Illustrated and Optional Parts Not Included
18	ACCESSORY PARTS
18	NAMEPLATE
