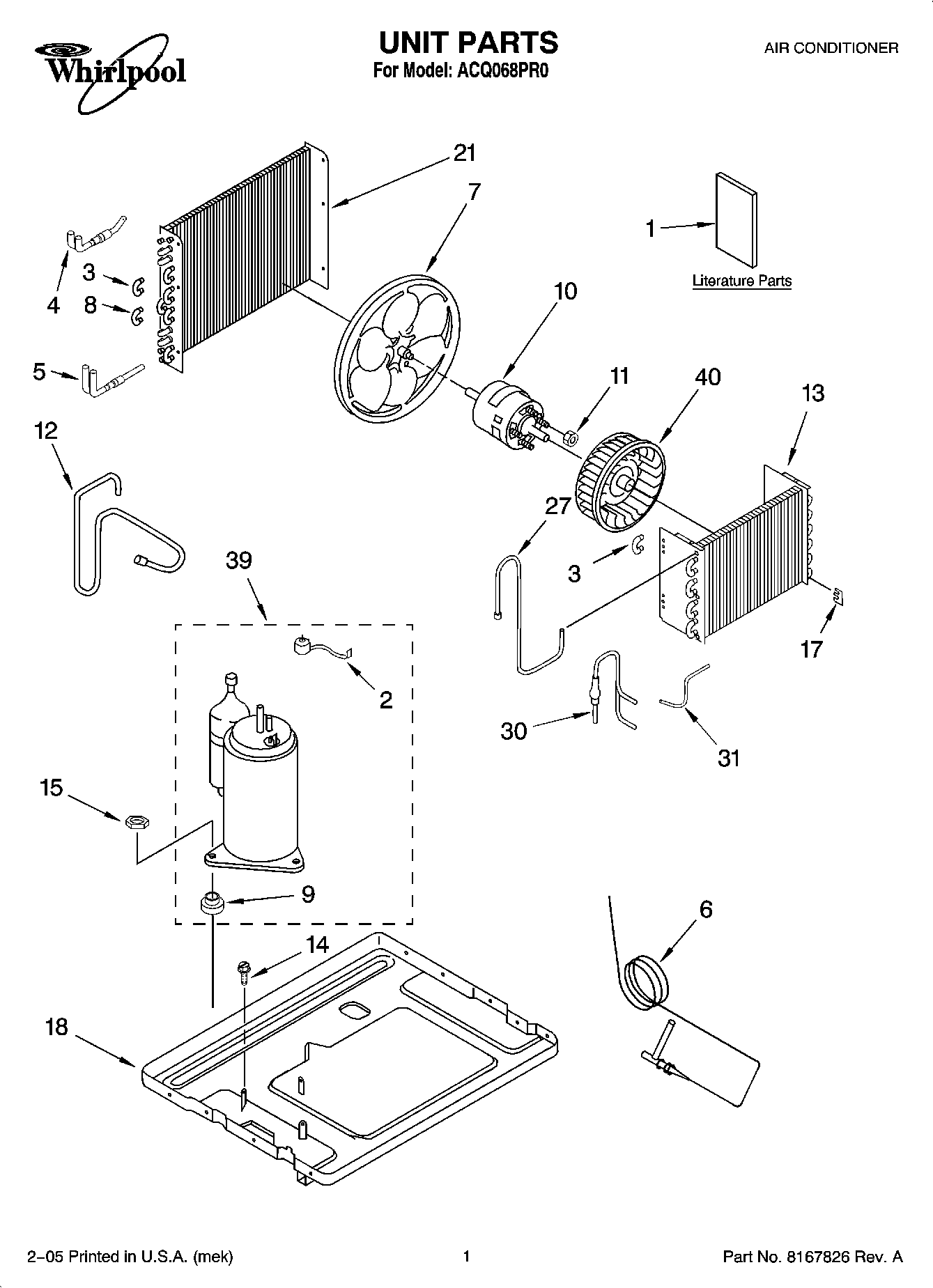

ACQ068PR0 01 – UNIT PARTSadmin2025-04-26T10:45:00+00:00ACQ068PR0 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Energy Guide |
| 1 | Use & care Guide |
| 1 | Wiring Diagram |
| 2 | Overload |
| 3 | Bend, Return |
| 4 | Tube, Inlet |
| 5 | Tube, Outlet |
| 6 | Tube, Restrictor |
| 7 | Blade, Fan |
| 8 | Bend, Return |
| 9 | Grommet (3) |
| 10 | Motor, Fan |
| 11 | Nut, Hex |
| 12 | Tube, Discharge |
| 13 | Evaporator |
| 14 | W11245710 Whirlpool Refrigerator Screw |
| 15 | Nut, Hex |
| 17 | Support, Tube Sensor |
| 18 | Base |
| 21 | Condenser |
| 27 | Tube, Suction |
| 30 | Manifold |
| 31 | Tube, Inlet |
| 39 | Compressor Assembly |
| 40 | REFRIGERANT CHARGE 21.35 oz. |
| 40 | Wheel, Blower |
