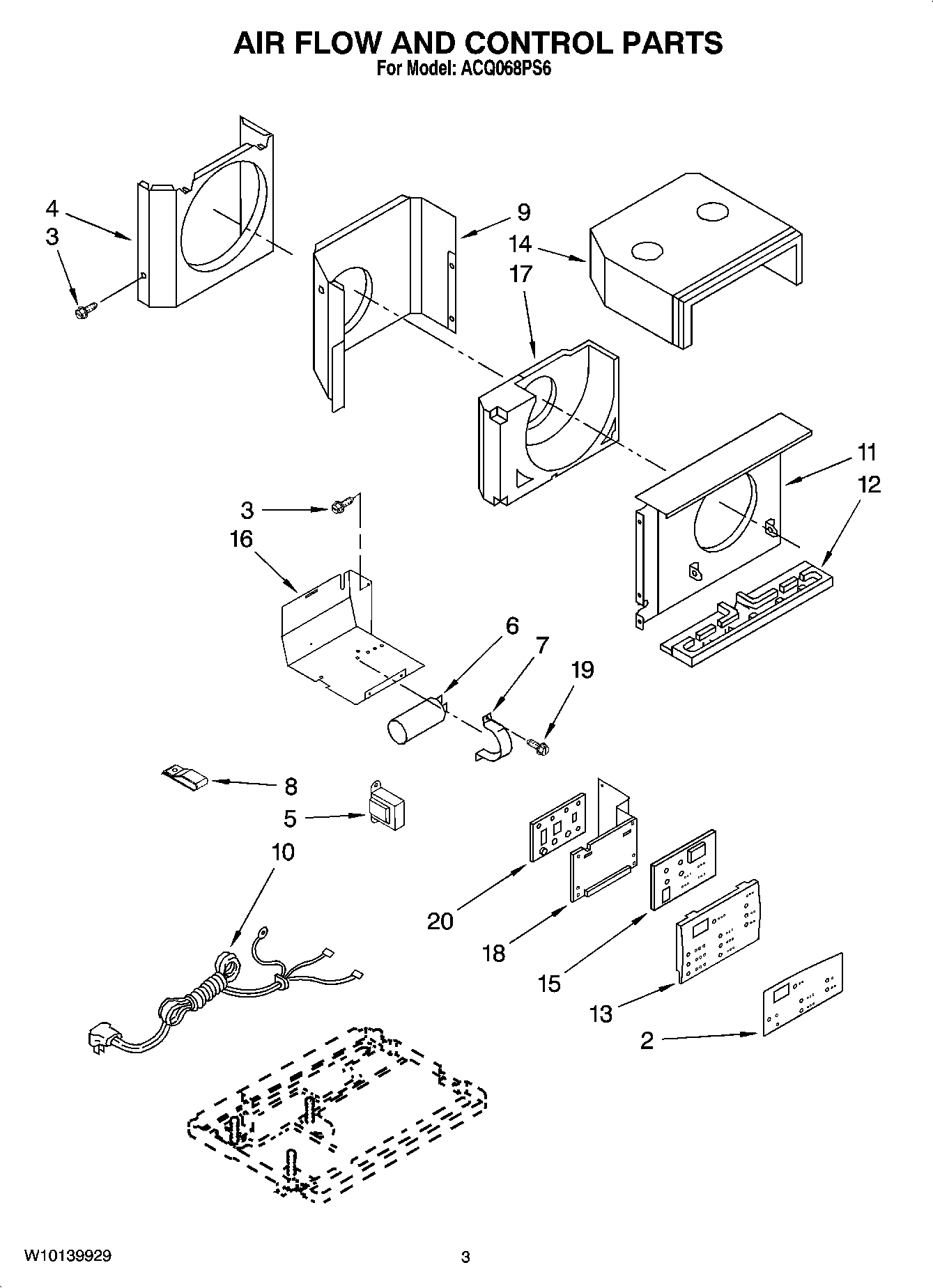

ACQ068PS6 02 – AIR FLOW AND CONTROL PARTS
Written by
in
ACQ068PS6 02 – AIR FLOW AND CONTROL PARTS
Products
Position
Product
2
Overlay
3
Screw
4
Shroud, Condenser
5
Transformer
6
Capacitor, Running
7
Bracket, Capacitor
8
Clamp, Cord
9
Wall, Dividing
10
Cord, Appliance
11
Shroud, Evaporator
12
Pan, Evaporator
13
Housing, Control Panel
14
Hood, Air Housing
15
Interface Board, (Low Voltage)
16
Panel, Rear- Control Box
17
Housing, Air
18
Panel, Front- Control Box
19
W11245710 Whirlpool Refrigerator Screw
20
Main Board (High Voltage)
←
