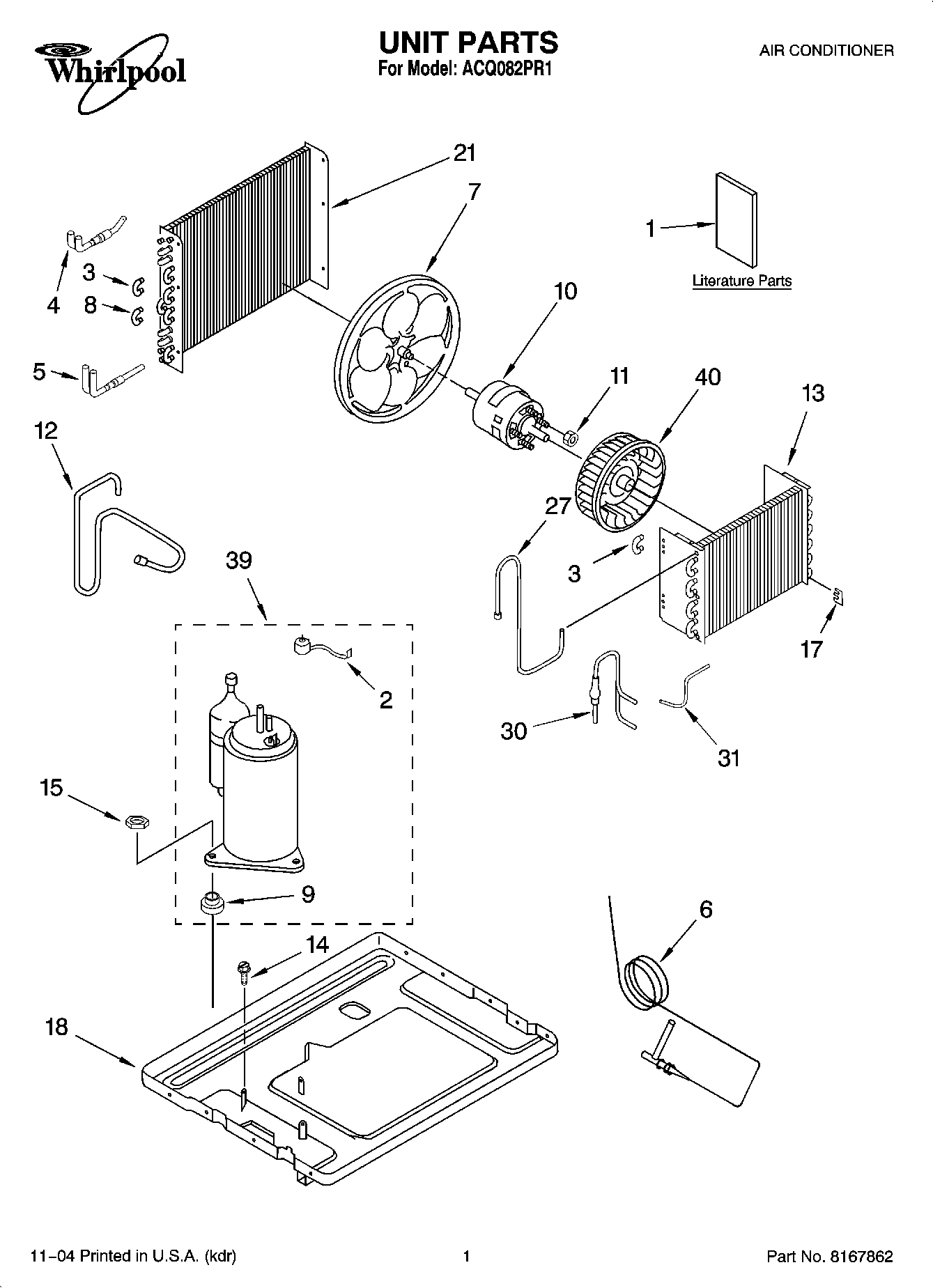

ACQ082PR1 01 – UNIT PARTS

Products

Position	Product
1	Use & care Guide
1	Energy Guide
1	Wiring Diagram
2	Overload
3	Bend, Return
4	Tube, Inlet
5	Tube, Outlet
6	Tube, Restrictor
7	Blade, Fan
8	Bend, Return
9	Grommet (3)
10	Motor, Fan
11	Nut, Hex
12	Tube, Discharge
13	Evaporator
14	W11245710 Whirlpool Refrigerator Screw
15	Nut, Hex
17	Support, Tube Sensor
18	Base
21	Condenser
27	Tube, Suction
30	Manifold
31	Tube, Inlet
39	Compressor Assembly
40	REFRIGERANT CHARGE 14.11 oz.
40	Wheel, Blower
