ACQ082PR2 03 – CABINET PARTS – Aparts

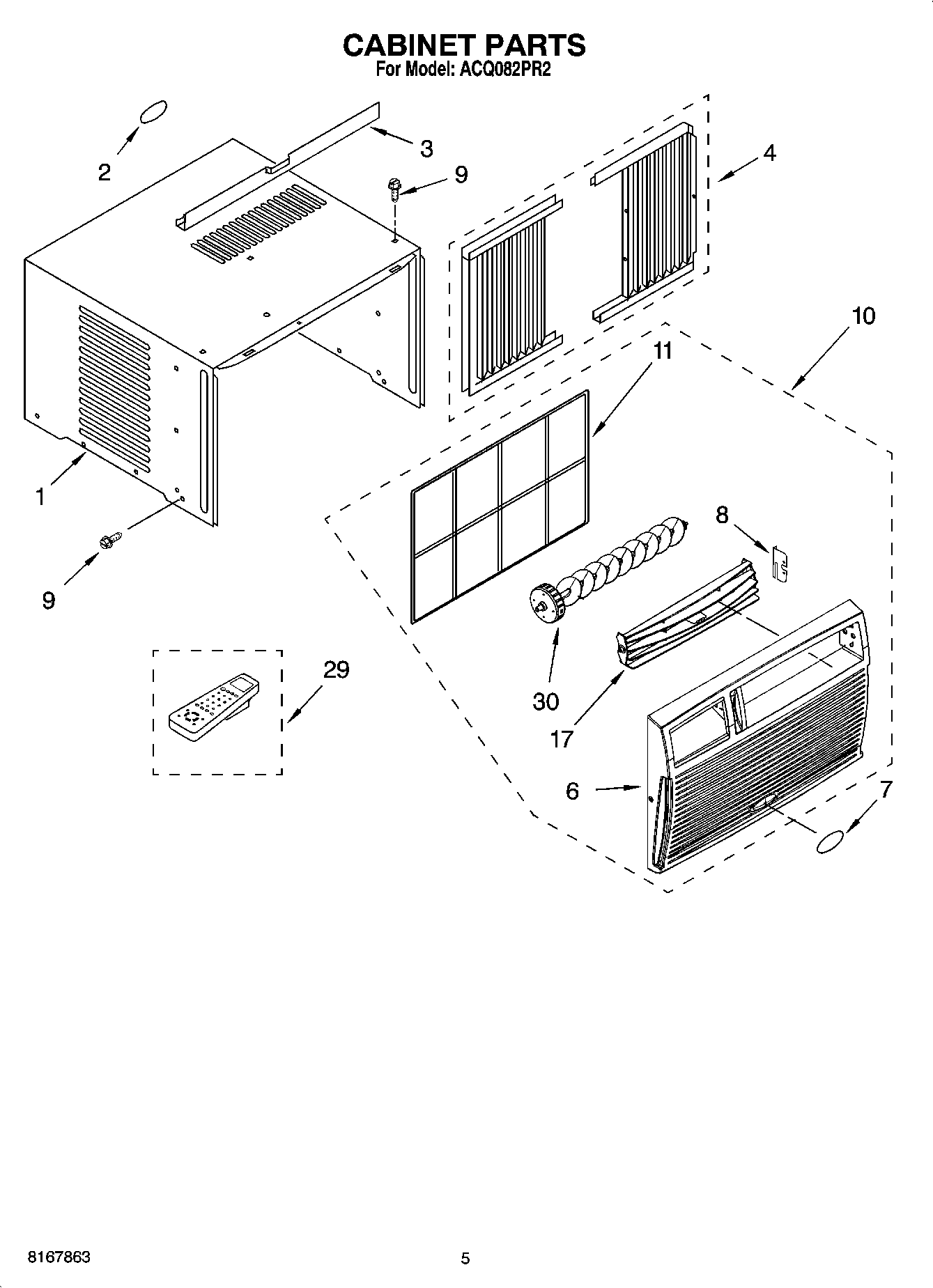

ACQ082PR2 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Nameplate, Rear
3	Channel, Top
4	Curtain Assy (Includes 3)
6	Front, Cabinet
7	Nameplate
8	Support, Louver
9	Screw (8)
10	Front, Cabinet Assembly
11	Filter
17	Louver, Assembly
29	Control, Remote
30	Louver, Vertical
