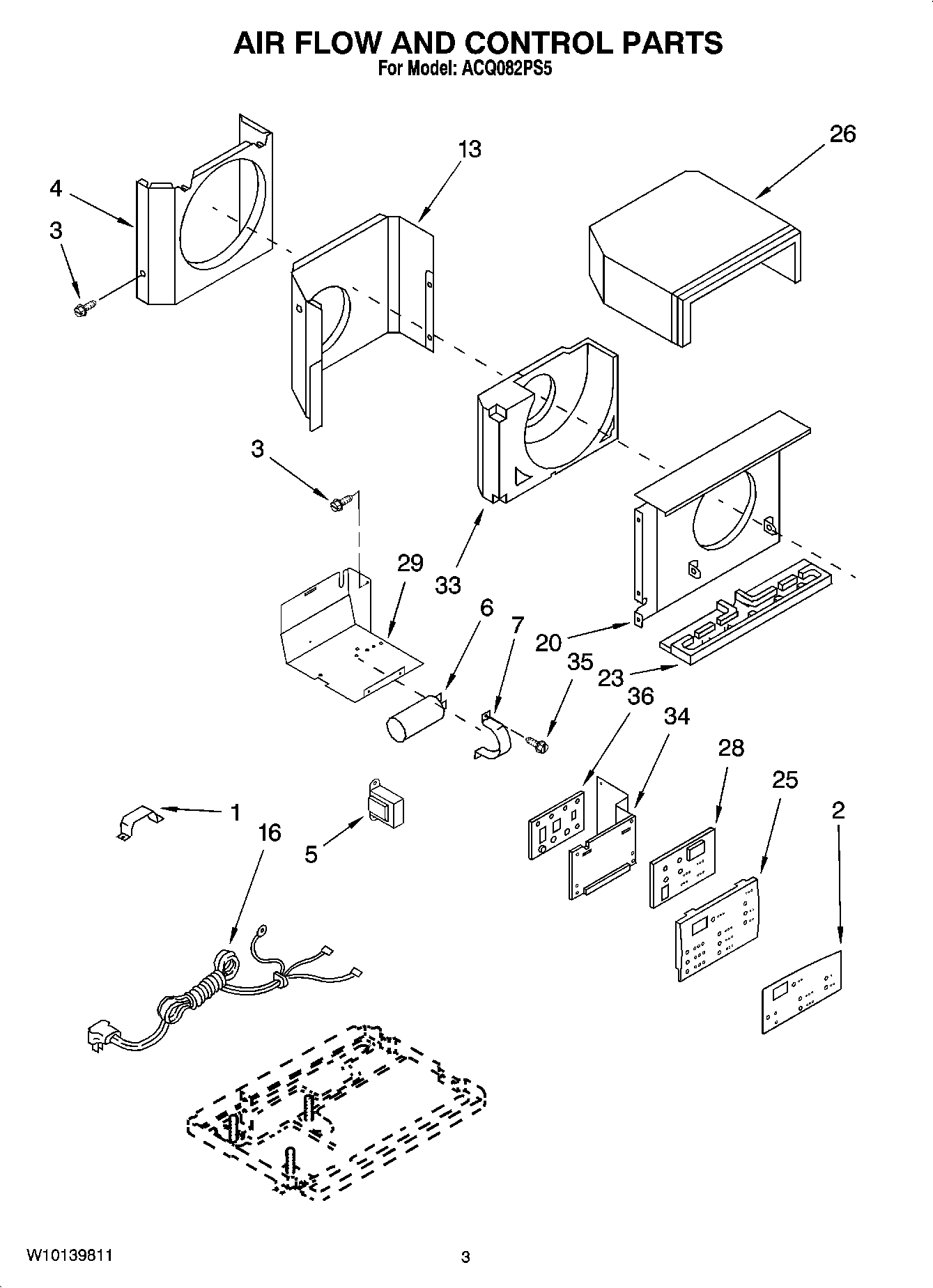

ACQ082PS5 02 – AIR FLOW AND CONTROL PARTSadmin2025-04-26T10:43:58+00:00ACQ082PS5 02 – AIR FLOW AND CONTROL PARTS
Products
| Position | Product |
|---|
| 1 | Clamp, Cable |
| 2 | Overlay |
| 3 | Screw |
| 4 | Shroud, Condenser |
| 5 | Transformer |
| 6 | Capacitor, Running |
| 7 | Bracket, Capacitor |
| 13 | Wall, Dividing |
| 16 | Cord, Appliance |
| 20 | Shroud, Evaporator |
| 23 | Pan, Evaporator |
| 25 | Housing, Control Panel |
| 26 | Hood, Air Housing |
| 28 | Interface Board, (Low Voltage) |
| 29 | Panel, Rear- Control Box |
| 33 | Housing, Air |
| 34 | Panel, Front- Control Box |
| 35 | W11245710 Whirlpool Refrigerator Screw |
| 36 | Main Board (High Voltage) |
