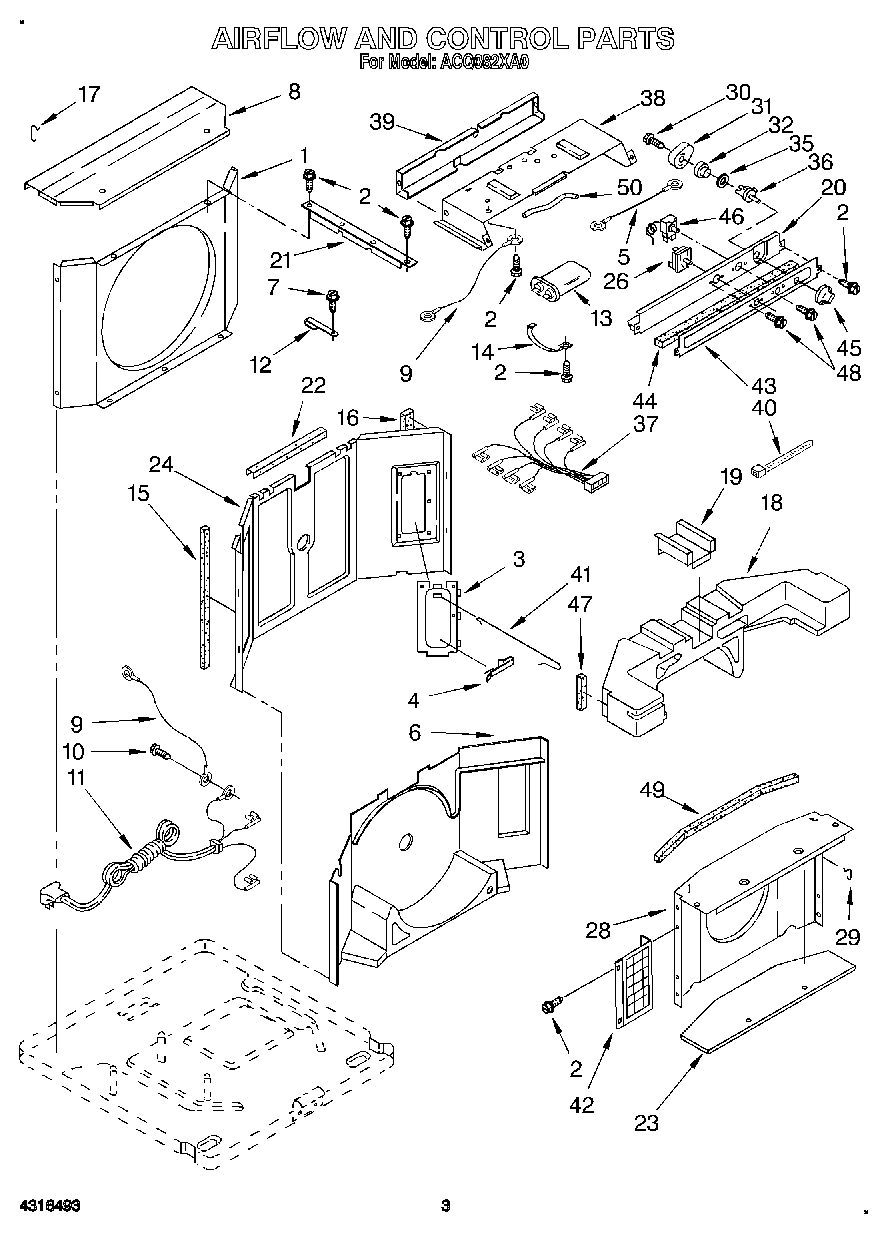

ACQ082XA0 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
3	Door, Exhaust
4	Spring, Door
5	Wire, Thermostat To Switch
6	Scroll (Lower)
8	Top, Condenser
9	Wire, Ground
10	Screw, 8-18 x 3/8
11	Cord, Appliance
12	Strap, Dividing Wall
13	Capacitor, Running
14	Bracket, Capacitor
15	Seal, Left Side
16	Seal, Right Side
17	Clip, Shroud (2)
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Grommet, Divider Wall
23	Insulation, Evaporator Shroud
24	Wall, Dividing
26	Switch, Rotary
28	Shroud Assembly, Evaporator
29	Clip, Shroud
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring - Control Box
38	Control Box
39	Back Panel, Control Box
40	WPW10339879 Whirlpool Wire Tie
41	Wire, Exhaust Door
42	Impeller Guard (2)
43	Escutcheon
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Knob, Controls (4)
46	Control, Temperature
47	Seal, Housing
48	Screw, 6-32 x .175
49	Seal
50	Insulation, Sleeve
