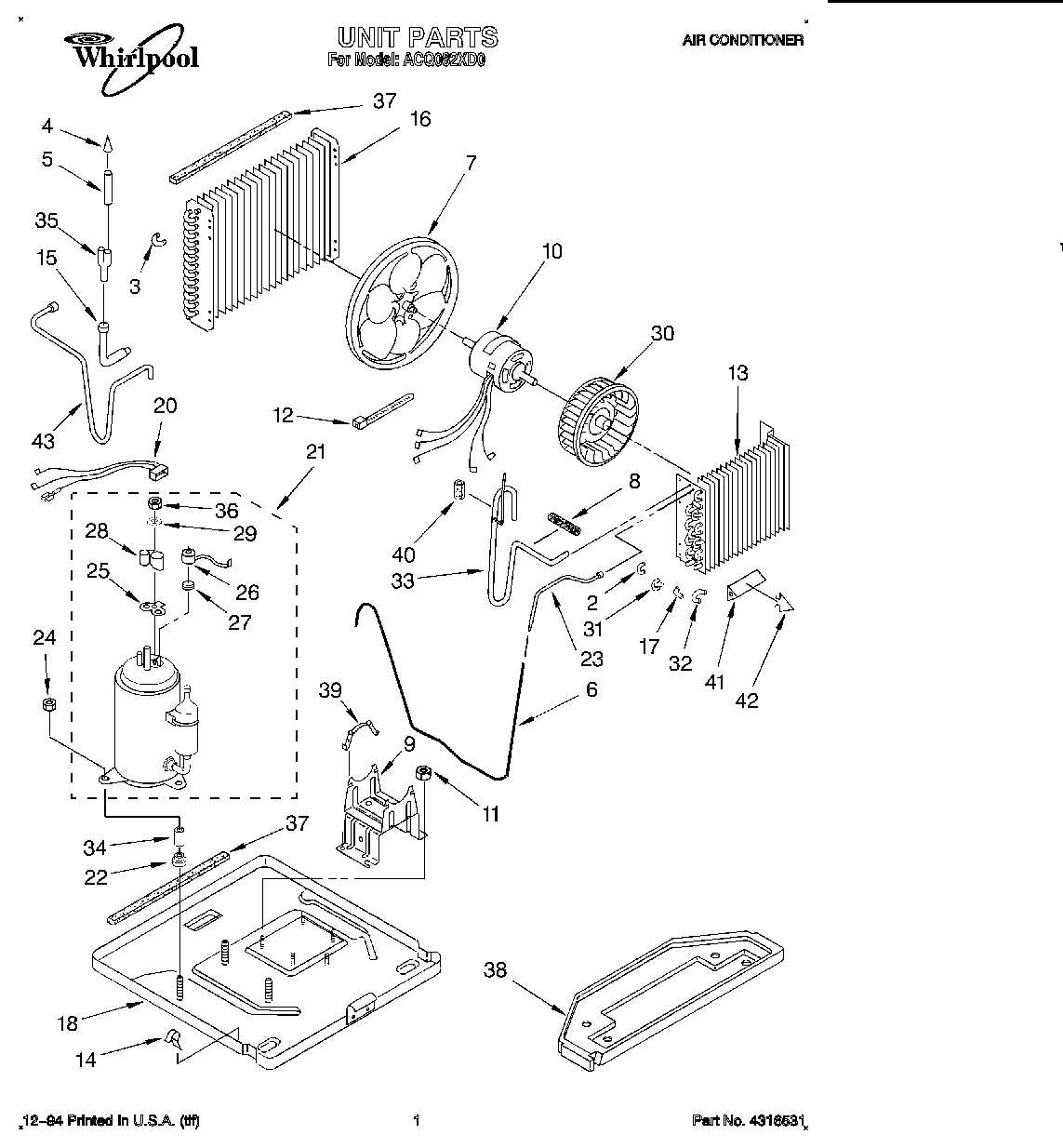

ACQ082XD0 01 – UNIT, LITERATURE

Products

Position	Product
	Instructions, Installation
	Wiring Diagram
	Tech Sheet
	Use And Care Guide
2	Bend, Return Evaporator (11)
3	Bend, Return Condenser (10)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan (Condenser)
8	Insulation, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Clamp (2)
15	Tube, 90~ Connect
16	Condenser
17	Bend, Return Evaporator (4)
18	Base
20	Harness, Compressor
21	4317916 Whirlpool Air Conditioner Compressor
22	Grommet
23	Tube, Feeder Restrictor
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	Gasket, Nut
30	Wheel, Blower (Evaporator)
31	Bend, Return (3-Way)
32	Bend, Return Evaporator (4)
33	Tube, Suction
34	Sleeve, Compressor (3)
35	Tube, Flow Divider
36	WP950027 Whirlpool Mounting Nut
37	Seal, Condenser Bottom
37	WP854334 Whirlpool Air Conditioner Sealing Strip
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Dampener, T
41	Anticipator, Temperature
42	Clip, Anticipator
43	Tube, Discharge
