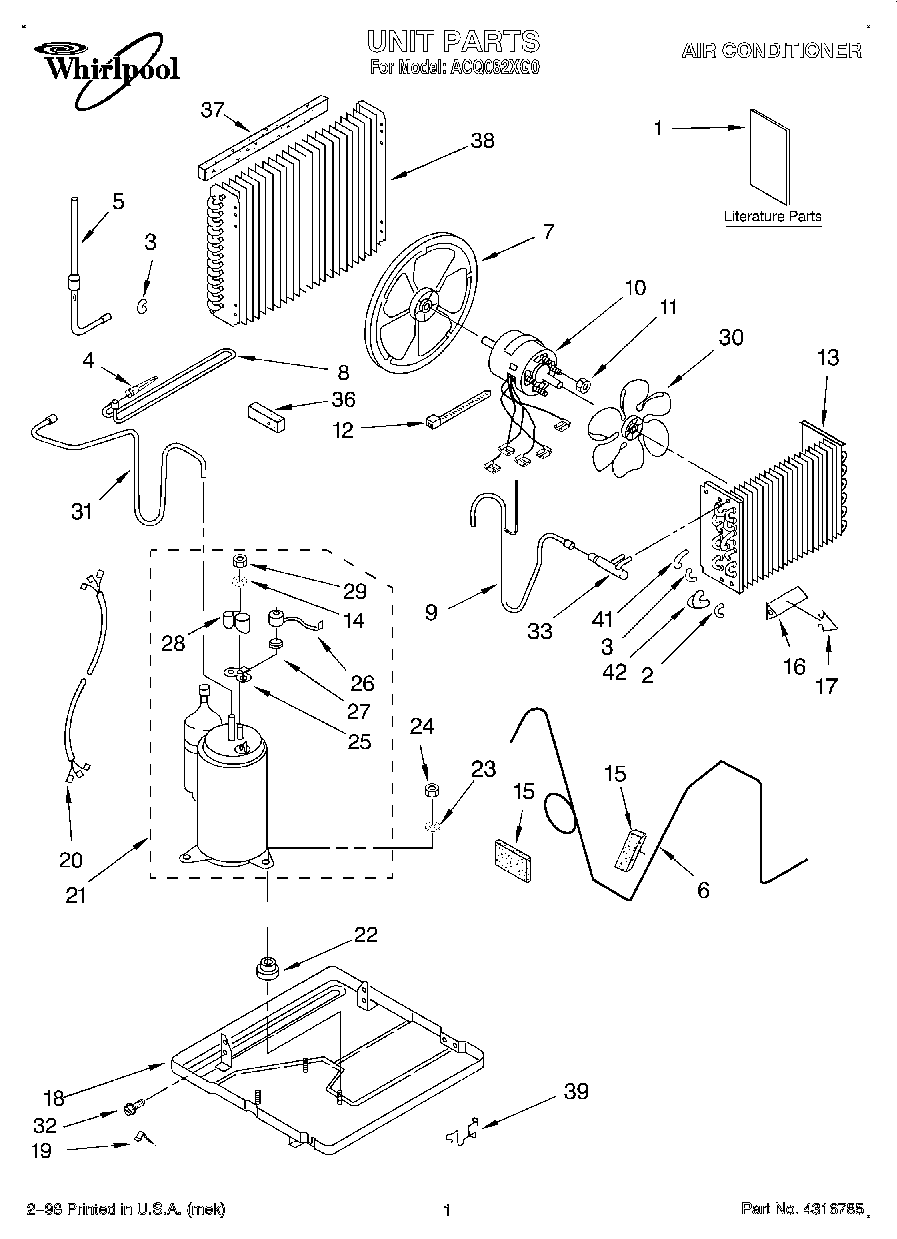

ACQ082XG0 01 – UNIT, LITERATURE

ACQ082XG0 01 – UNIT, LITERATURE

Written by

in

ACQ082XG0 01 – UNIT, LITERATURE

Products

PositionProduct
1Owners Manual
1Tech Sheet
1Wiring Diagram
2Bend, Return Condenser (4)
3Bend, Return Condenser (10)
4WP1162526 Whirlpool Air Conditioner Strainer
5Tube, Process
6Tube, Restrictor
7Blade, Fan (Condenser)
8Tube, Wet Loop
9Tube, Suction
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
14Gasket, Nut
15Seal, Anti-Rub
16Anticipator
17Clip, Anticipator
18Base
19Clamp, Tube (2)
20Harness, Wiring
214317916 Whirlpool Air Conditioner Compressor
22Grommet
23WP120393 Whirlpool Washer Assembly
24Nut, Hex (4)
25WP950035 Whirlpool Cover Gasket
26WP1161170 Whirlpool Air Conditioner Overload
27Spring, Overload
28WP950036 Whirlpool Cover Assembly
29WP950027 Whirlpool Mounting Nut
30Blade, Fan (Evaporator)
31Tube, Discharge
32WP489069 Whirlpool Compactor Screw
32Screw, Repair
33Tube, Maniflod
36WP854334 Whirlpool Air Conditioner Sealing Strip
37Seal, Condenser Top
38Condenser
39Clip, Mtg. (2)
41Bend, Return Condenser (1)
42Bend, 3-Way
